PGB916DEM3BB CONTROL PANEL & COOKTOP

PGB916DEM3BB CONTROL PANEL & COOKTOP

Written by

in

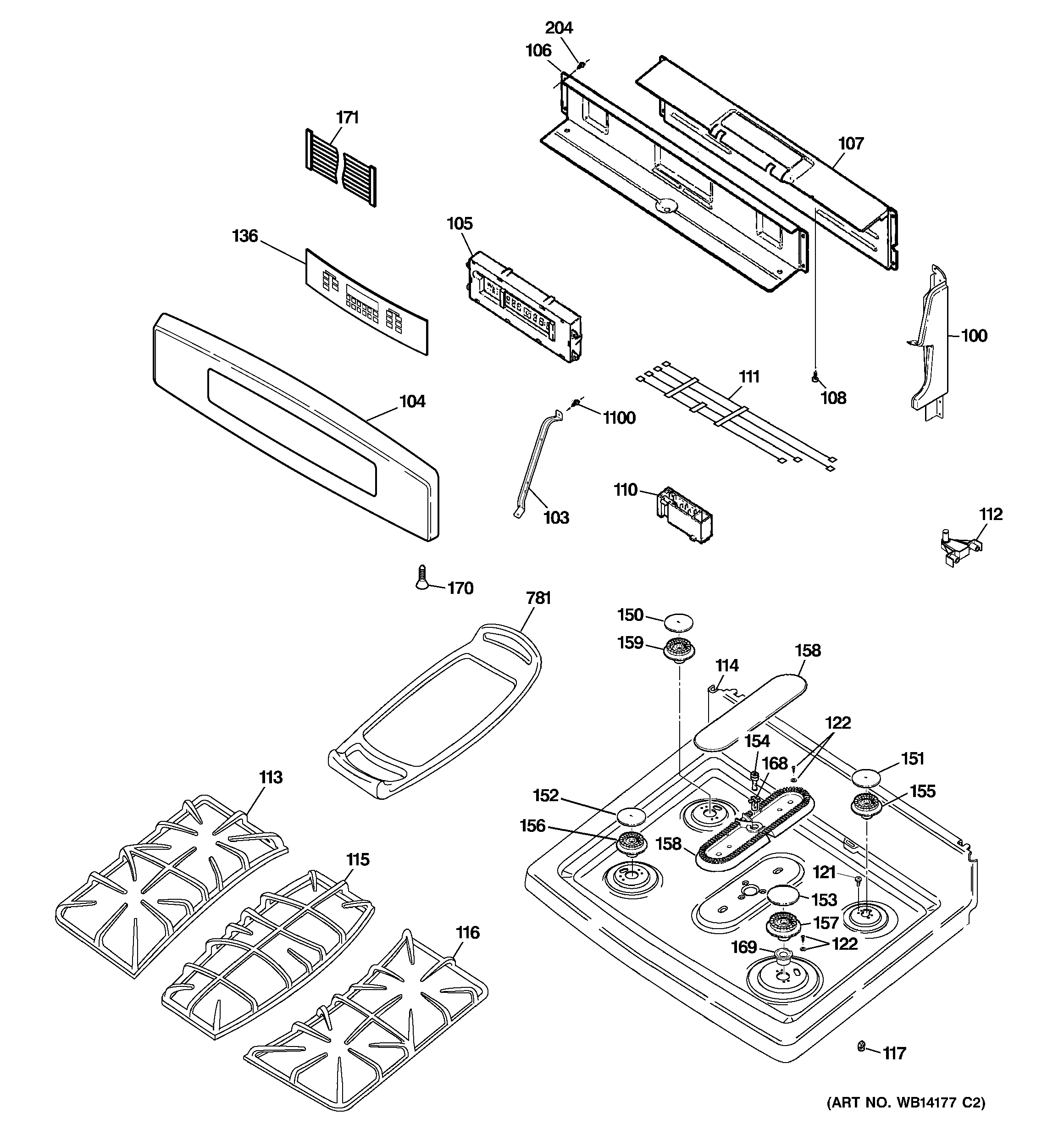

PGB916DEM3BB CONTROL PANEL & COOKTOP

Products

PositionProduct
100END SUPPORT RT
100END SUPPORT RT WH
100END SUPPORT LF WH
100END SUPPORT LF
100END SUPPORT LF
100END SUPPORT RT
103GEN WB02K10152
104GEN WB36K10744
104GEN WB36K10741
104GEN WB36K10743
105GEN WB27K10178
106COVER BACK UPPER
107GEN WB34K10116
107GEN WB34K10091
110WB13X26360 GE Oven Spark Module
111GEN WB18K10037
112WB14K10003 GE Range Top Hinge
113WB31K10213 GE Oven Left Cast Grate (DD)
113GEN WB31K10210
113GEN WB31K10207
114GEN WB62K10110
114GEN WB62K10111
114GEN WB62K10112
115GEN WB31K10209
115GEN WB31K10215
115GEN WB31K10212
116WB31K10208 GE Oven Cast Grate (DD) Right
116GEN WB31K10211
116GEN WB31K10214
117WB14K10004 GE Oven Pin Locator
121WB1K5119 GE Oven Screw
122GEN WB01K10008
136GEN WB27K10284
136GEN WB27K10285
136GEN WB27K10283
150CAP-BURNER MED TAUPE
150WB29K10004 GE Oven Gray Burner Cap
150WB29K10001 GE Oven Burner Cap
151WB29K10009 GE Oven Burner Cap
151WB29K10002 GE Range Oven Cooktop Small Burner Cap
151CAP-BURNER SMALL TAUPE
152WB29K10007 GE Oven Burner Cap, Left
152WB29X36765 GE Large Cap Burner Taupe Rep
152WB29K10006 GE Oven Burner Cap
153WB28K10213 GE Oven Burner Cap Assembly (15K)
153GEN WB28K10223
153GEN WB28K10221
154GEN WB13K10014
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156BURNER 12K
157WB16K10062 GE Oven Surface Burner Base
158CENTRAL BURNER ASM
158GEN WB16K10059
158GEN WB16K10052
159WB16K10055 GE Oven Burner Base
168WB01K10112 GE Range Oven Electrode Clip
169GEN WB16K10045
170GEN WB01X5716
170GEN WB01X5874
170WB1X5364 GE Oven Mounting Screw
171GEN WB18K10028
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
781WB31K10217 GE Oven Griddle Kit
1100WB01T10016 GE Oven Screw 8-18 AB Hex
