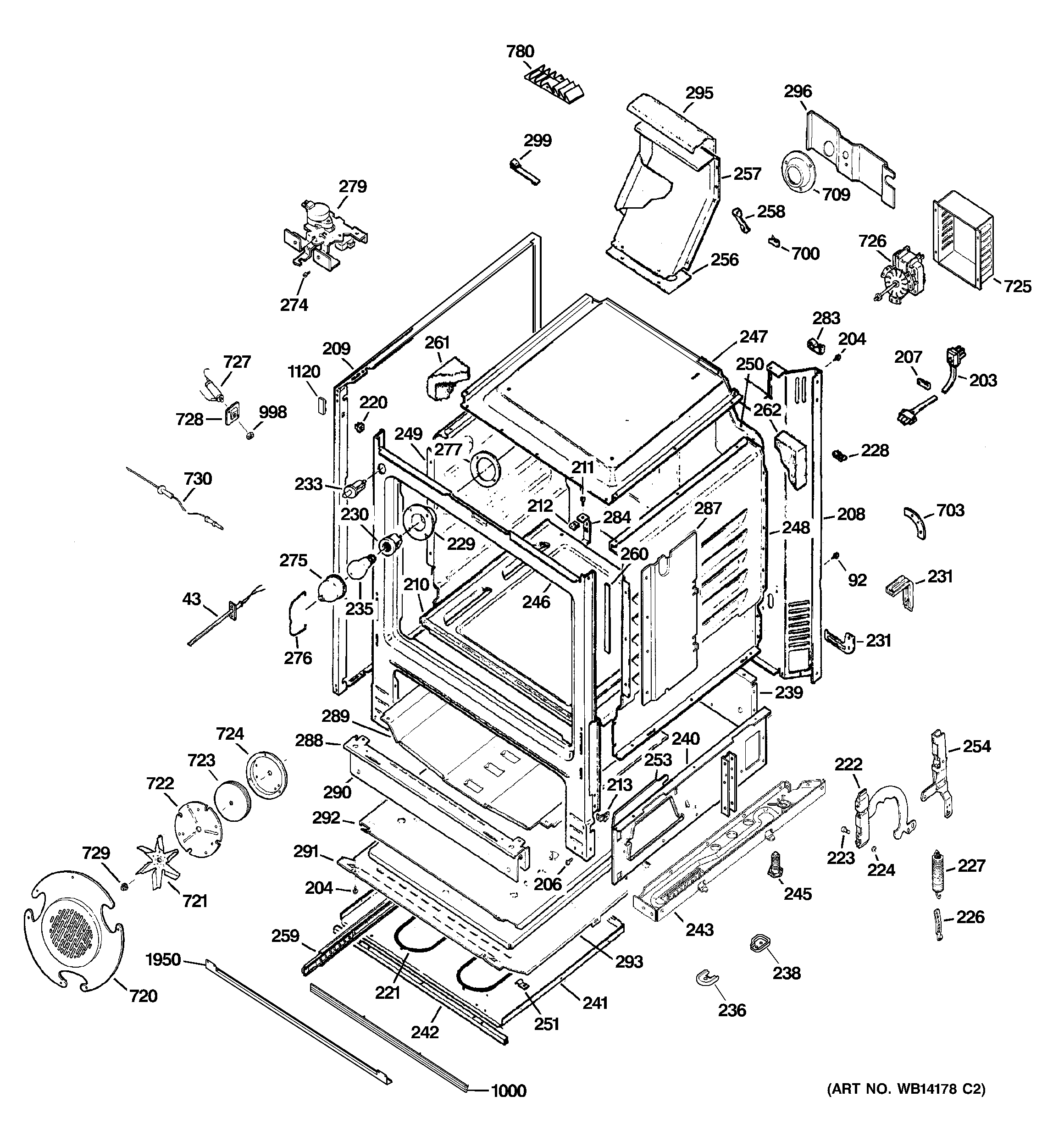

PGB916SEM2SS BODY PARTS

PGB916SEM2SS BODY PARTS

Written by

in

PGB916SEM2SS BODY PARTS

Products

PositionProduct
43TEMPERATURE SENSOR
92WB1X1261 GE Oven Screw
203GEN WB18K10022
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
206WB01K10091 GE Oven Screw
207WB2K36 GE Oven Clamp Cable
208WB35K10039 GE Motor Insulation
208GEN WB63K10181
209WB63K10119 GE Oven Side Panel, Black
210WB35X37973 GE Oven Bottom and Deflector Assembly
211WB1K5 GE Oven Screw 8-18 X B97
212WB1K2 GE Oven Speednut
213WB1K3 GE Oven Speed Nut
220GEN WB02K0008
221WB44K10011 GE Oven Heating Element
222WB10K12 GE Oven Hinge Assembly
223GEN WB02X6195
224RING RETAINING
226GEN WB02K0011
227GEN WB09K0005
228GEN WB02X7066
229GEN WB08K0001
230WB08T10026 GE Range Push-In Receptacle
231GEN WB02K0012
231WB2K20 GE Oven Bracket Assembly
233WB24K10068 GE Oven Plunger Switch
235RANGE ONLY 40W 120V APPL BULB
236WB02K10104 GE Base Spacer
238GEN WB02K10154
238GEN WB02K10153
239WB63K10203 GE Oven Rear Broil Panel
240WB63K3 GE Oven Panel Side Broil
240GEN WB63K0002
241GEN WB63K10041
242GEN WB63K0005
243WB63K10233 GE Oven Support Base
243WB63K10232 GE Oven Support Base
245WB02K10182 GE Oven Leveling Leg
246GEN WB63K10175
247WB53K10015 GE Oven Top
248WB53K10034 GE Oven Right Side
249OVEN SIDE
250GEN WB53K10025
251WB02K10023 GE Oven Heating Element Clamp
253WB2K4 GE Cover Accessory Spring
254GEN WB01K0053
254SUPPORT ASM RIVET RT
254SUPPORT ASM RIVET LF
256GEN WB32K0001
257WB38K10008 GE Oven Vent Assembly
258WB38K2 GE Range Vent Brace
259WB39K10020 GE Oven Right Drawer Slide Assembly
259WB39K10021 GE Oven Left Drawer Slide Assembly
260GASKET OVEN SEAL
261GEN WB35K10159
262WB35K10168 GE Oven Back Insulation
274GEN WB01K0044
275WB36X192 GE Oven Light Cover
276WB2K27 GE Oven Bail
277GEN WB32K0005
279WB02K10136 GE Oven Motor Switch Assembly
283WB02X21679 GE Oven Wire Clip
284WB2K32 GE Oven Support Bracket
287GEN WB34K0031
287WB34K30 GE Radiation Guard
288BRACE
289WB34K10086 GE Oven Lower Heat Shield
290GEN WB34K0012
291WB63K16 GE Oven Bottom Guard
292GEN WB63K10117
293GEN WB63K0018
295GEN WB35K10036
296WB34K13 GE Oven B Panel Cover
299GEN WB02K0038
700RETAINER-INSULATION
703BRACKET OVEN
709GEN WB08K0004
720WB34K10037 GE Oven Front Fan Cover
721WB2X8351 GE Oven Blade Fan
722WB34K10038 GE Oven Fan Cover Back
723WB35K10038 GE Fan Insulator Range
724WB02K10034 GE Range Fan Support
725GEN WB34K10065
726WB26K10003 GE Oven Convection Fan Motor
727HARNESS-MEAT PROBE
727PROBE COVER
728GEN WB02X8309
729WB02T10017 GE Oven Nut
730WB20T10024 GE Oven Thermistor Probe
780WB38K10022 GE Oven Diffuser Vent
998WB1X5572 GE Oven Nut
1000WB04K10021 GE Oven Front Frame Gasket
1120WB02K10178 GE Oven Bumper
1950WB01K10072 GE Oven Front Bottom Trim
