PGB918DEM2WW GAS & BURNER PARTS

PGB918DEM2WW GAS & BURNER PARTS

Written by

in

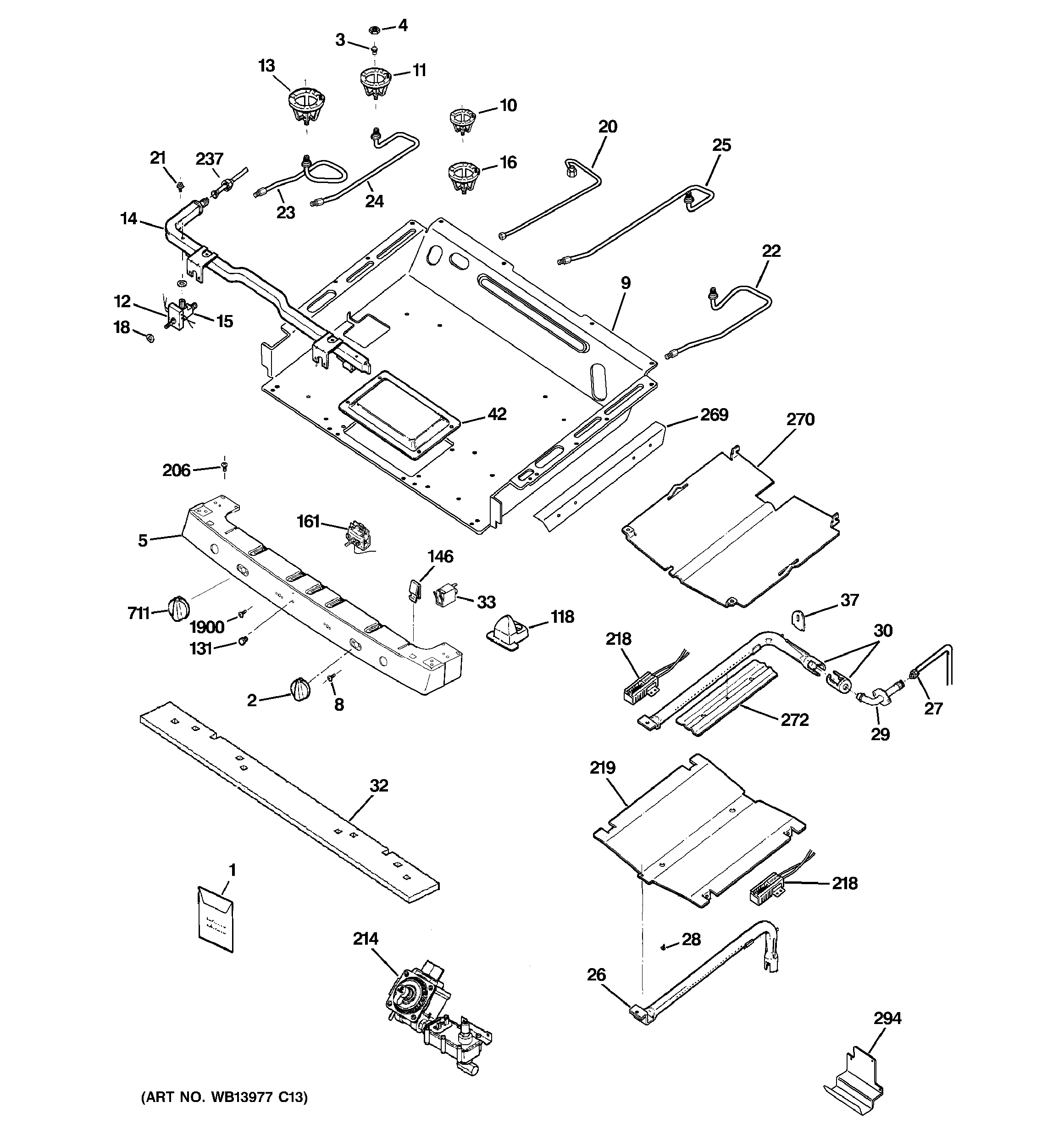

PGB918DEM2WW GAS & BURNER PARTS

Products

PositionProduct
1GEN 31-21397
1GEN 49-85131
1GEN WB28K10562
1GEN WB02K0101
1GEN 31-21344
2GEN WB03K10135
2GEN WB03K10137
3GEN WB28K10216
3WB28K10031 GE Oven Orifice
3WB28K10214 GE Oven Orifice
3WB28K10215 GE Oven Orifice
3WB28K10288 GE Oven Orifice Spud
4WB01K10037 GE Oven Economic Nut
5GEN WB36K10661
5GEN WB36K10702
8WB01K10002 GE Oven Screw 8-32
9GEN WB63K10143
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12GEN WB24K10023
12GEN WB24K10024
13WB02K10362 GE Oven CKT Bracket MDM & L
14GEN WB28K10384
15WB21K10097 GE Oven Burner Valve
15WB21K10080 GE Oven Burner Valve 270 Hi-Cap
15WB21K10119 GE Oven Burner Valve 270
15WB21K10096 GE Oven Burner Valve 270
16WB02K10082 GE Oven Bracket XL Cooktop
18WB2K24 GE Oven Valve Cover
18WB37K10012 GE Thermostat Cover
20GEN WB28K10300
21WB01K10066 GE Oven Screw 8 HD 10-32
22GEN WB28K10424
23WB28K10388 GE Oven Left Orifice Holder
24ORIFICE HOLDER LR NG
25ORIFICE HOLDER RR NG
26GEN WB16K10054
27WB28K10168 GE Oven Burner Supply Tube
28WB1X1293 GE Oven Screw
29GEN WB28K10310
30GEN WB16K10004
32INSULATION BURNER BOX
33WB25K10010 GE Oven Light Indicator Pilot
37WB34K14 GE Igniter Cover
42WB63K10063 GE Burner Box Cover
118GEN WB14K10005
118WB02K10104 GE Base Spacer
131WB25K10009 GE Oven Lens
146GEN WB02K0052
161WB20K10017 GE Oven Thermostat
206WB01K10091 GE Oven Screw
214WB19K10043 GE Oven Gas Valve and Regulator Assembly
218WB13X25261 GE Oven Igniter Glowbar
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237WB28X24772 GE Oven Gas Tube Connector
237GEN WB28K10477
269GEN WB35K10048
270DEFLECTOR
272WB34K10 GE Oven Broil Shield
294WB63K10054 GE Terminal Cover
711GEN WB03K10196
711GEN WB03K10194
1900WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
