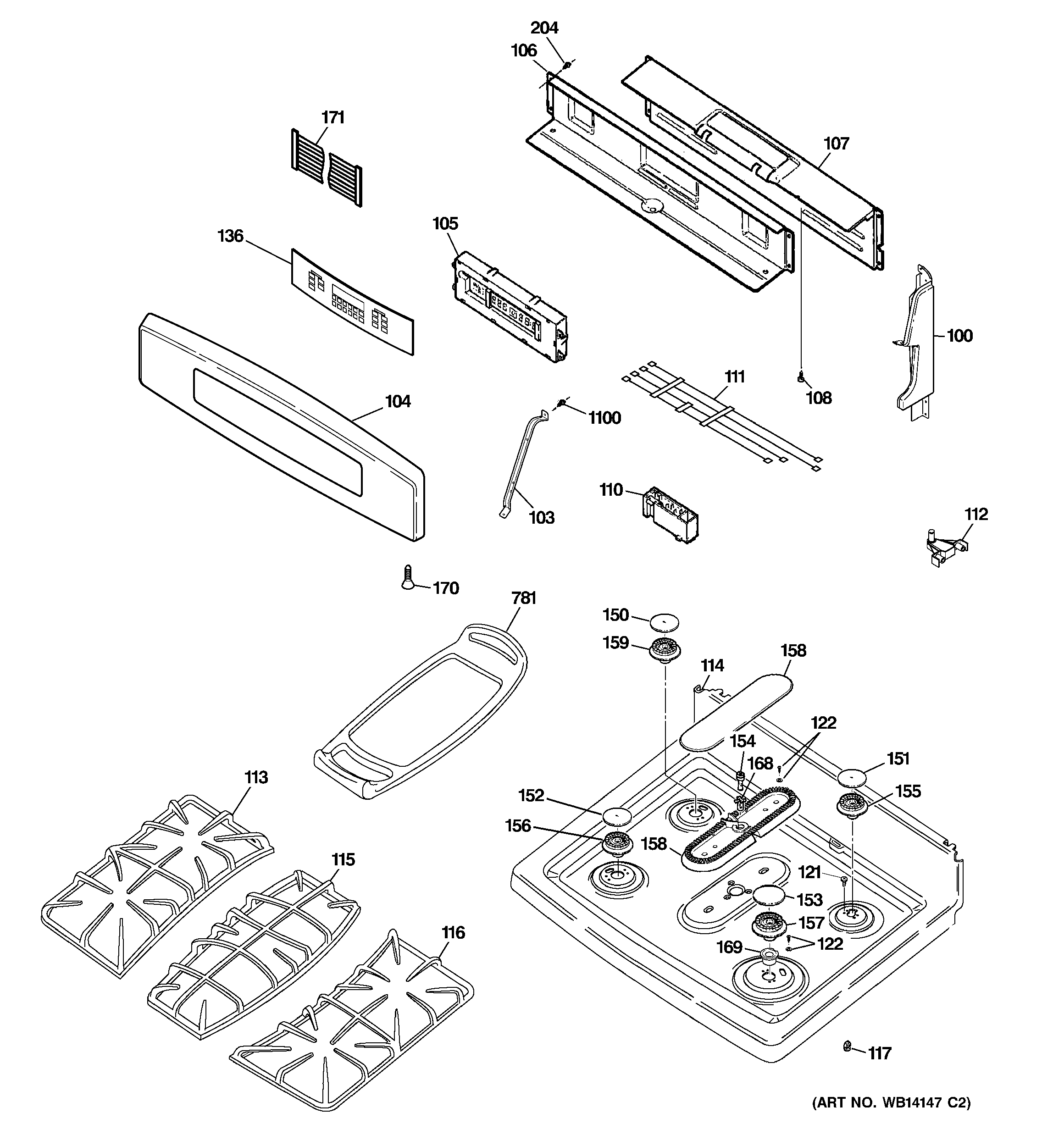

PGB918DEM4BB CONTROL PANEL & COOKTOP

PGB918DEM4BB CONTROL PANEL & COOKTOP

Written by

in

PGB918DEM4BB CONTROL PANEL & COOKTOP

Products

PositionProduct
100END SUPPORT LF WH
100END SUPPORT RT WH
100END SUPPORT RT
100END SUPPORT LF
103GEN WB02K10152
104GEN WB36K10701
104GEN WB36K10660
105GEN WB27K10176
106COVER BACK UPPER
107GEN WB34K10122
108WB1X5364 GE Oven Mounting Screw
110HARNESS GROUND
110WB13X26360 GE Oven Spark Module
111GEN WB18K10037
112WB14K10003 GE Range Top Hinge
113WB31K10213 GE Oven Left Cast Grate (DD)
113GEN WB31K10207
114GEN WB62K10111
114GEN WB62K10110
115GEN WB31K10215
115GEN WB31K10209
116WB31K10208 GE Oven Cast Grate (DD) Right
116GEN WB31K10214
117WB14K10004 GE Oven Pin Locator
121WB1K5119 GE Oven Screw
122GEN WB01K10008
136GEN WB27K10260
136GEN WB27K10257
150WB29K10004 GE Oven Gray Burner Cap
150WB29K10001 GE Oven Burner Cap
151WB29K10009 GE Oven Burner Cap
151WB29K10002 GE Range Oven Cooktop Small Burner Cap
152WB29K10006 GE Oven Burner Cap
152WB29K10007 GE Oven Burner Cap, Left
153GEN WB28K10223
153WB28K10213 GE Oven Burner Cap Assembly (15K)
154GEN WB13K10014
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156BURNER 12K
157WB16K10062 GE Oven Surface Burner Base
158CENTRAL BURNER ASM
158GEN WB16K10059
159WB16K10055 GE Oven Burner Base
168WB01K10112 GE Range Oven Electrode Clip
169GEN WB16K10045
170GEN WB01X5874
170GEN WB01X5716
171GEN WB18K10028
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
781WB31K10217 GE Oven Griddle Kit
1100WB01T10016 GE Oven Screw 8-18 AB Hex
