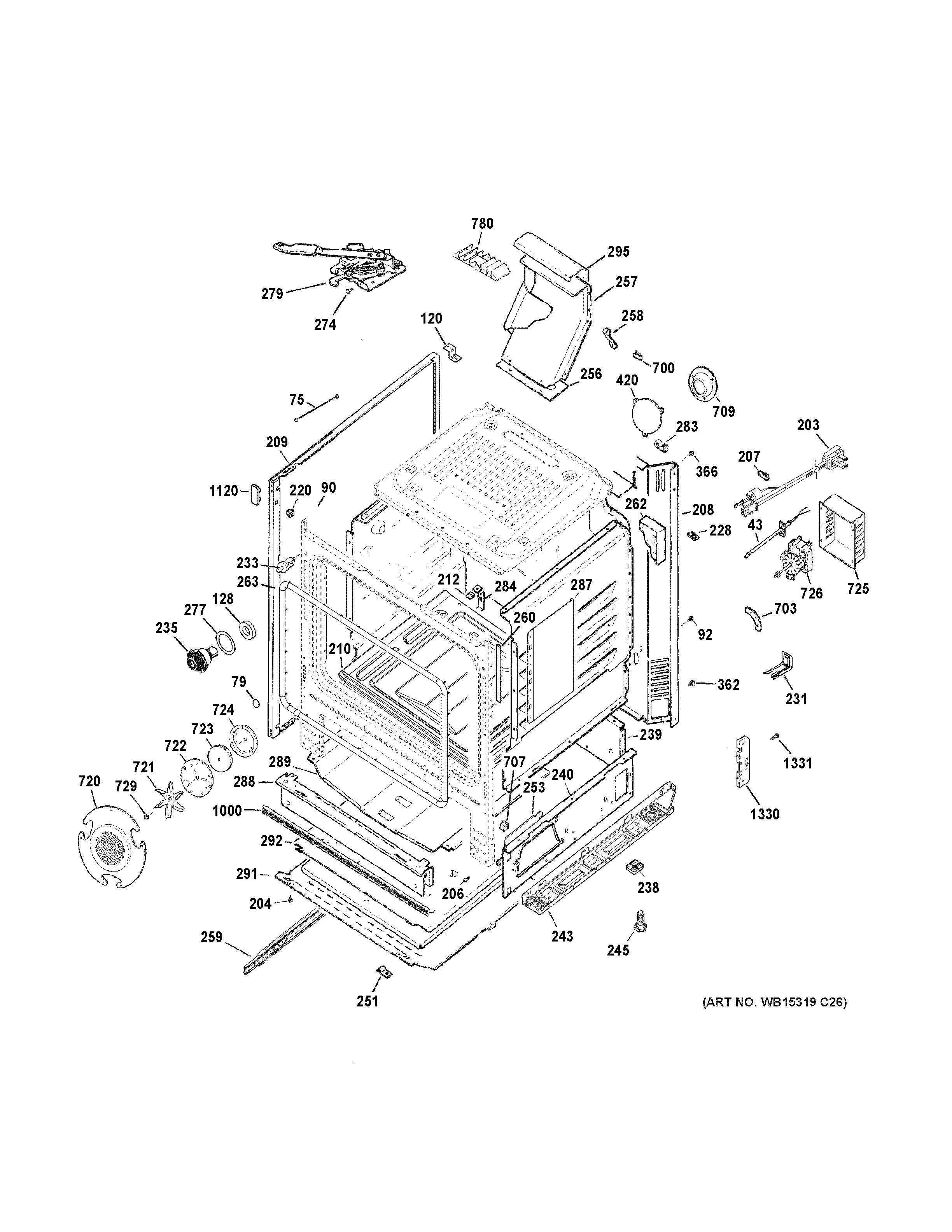

PGB920SEF2SS BODY PARTS

PGB920SEF2SS BODY PARTS

Written by

in

PGB920SEF2SS BODY PARTS

Products

PositionProduct
43TEMPERATURE SENSOR
75WB18K10083 GE Oven Ground Harness
79SPACER SIDE
90WB02X28737 GE Oven Front Frame Bumper
92WB1X1261 GE Oven Screw
120WB02X20735 GE Top Rear Support
128LAMP INSULATION
203WB18K10081 GE Oven Line Cord
204GEN WB01K10111
204WZ4X345D GE Screw Package 12 C92
206WB01K10091 GE Oven Screw
207WB2K36 GE Oven Clamp Cable
208WB63X23200 GE Range Back Assembly
209WB56X22013 GE Oven Side Panel
210WB35X37968 GE Heat Shield
212WB1K2 GE Oven Speednut
220GEN WB02K0008
228GEN WB02X7066
231WB02K10254 GE Oven Anti-Tip Bracket Assembly
233WB24X20445 GE Oven Dual Plunger Switch
235WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
238WB16X20449 GE Oven Base Spacer
238WB16X20448 GE Oven Spacer Base
239PANEL REAR BROIL
240WB63K3 GE Oven Panel Side Broil
240GEN WB63K0002
243WB63X20215 GE Oven Support Base
243WB63X20216 GE Oven Support Base
245WB02K10182 GE Oven Leveling Leg
251WB02K10023 GE Oven Heating Element Clamp
253WB2K4 GE Cover Accessory Spring
256GASKET VENT
257WB34X20294 GE Vent Assembly
258BRACE VENT
259WB39K10020 GE Oven Right Drawer Slide Assembly
259WB39K10021 GE Oven Left Drawer Slide Assembly
260WB32K2 GE Oven Gasket Seal
262INSULATION OVEN BACK
263GASKET DRAWER ASM
274GEN WB01K0044
277WB32K10044 GE Oven Light Gasket
279WB10X20842 GE Oven Automatic Latch
283WB02X21679 GE Oven Wire Clip
284WB2K32 GE Oven Support Bracket
287GUARD RADIATION
288BRACE
289WB34K10086 GE Oven Lower Heat Shield
291WB63K16 GE Oven Bottom Guard
292WB63K10187 GE Bottom Inner Guard
295INSULATION VENT
362WB01K10057 GE Oven Screw
366WB1K5062 GE Oven Screw
420GEN WB34K0016
700WB02K10380 GE Insulation Clip
703BRACKET OVEN
707WB02K10267 GE Wire Clip
709WB08K10018 GE Range Light Cover
720WB34K10142 GE Fan Cover Assembly
721WB2X8351 GE Oven Blade Fan
722WB34K10038 GE Oven Fan Cover Back
723WB35K10038 GE Fan Insulator Range
724WB02K10034 GE Range Fan Support
725WB34K10148 GE Motor Cover
726WB26K10003 GE Oven Convection Fan Motor
729WB02T10017 GE Oven Nut
780WB38K10022 GE Oven Diffuser Vent
1000WB04K10036 GE Oven Rubber Bumper Strip
1120WB02K10171 GE Oven Bumper
1330WB10X25602 GE Range Hinge Receiver
1331WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
