PGB920SEF2SS CONTROL PANEL & COOKTOP

PGB920SEF2SS CONTROL PANEL & COOKTOP

Written by

in

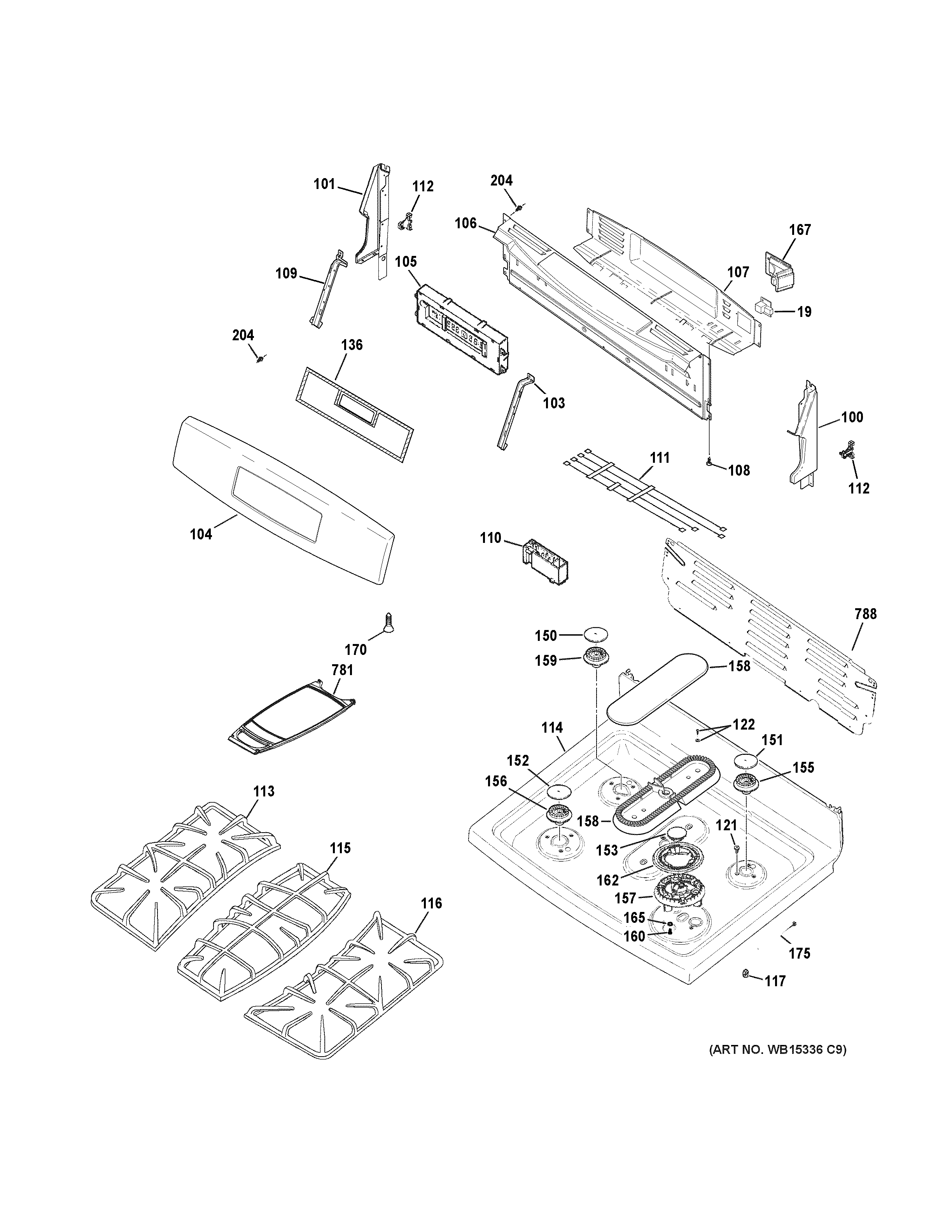

PGB920SEF2SS CONTROL PANEL & COOKTOP

Products

PositionProduct
100END SUPPORT
101END SUPPORT
103BRACKET CONTROL RIGHT
104TRIM CONTROL
105CONTROL BOARD T012 ELE
106COVER BACK UPPER
107WB34K10129 GE Lower Back Cover
108WB1X5364 GE Oven Mounting Screw
109BRACKET CONTROL LEFT
110WB13X26360 GE Oven Spark Module
111ELECTRODES, HARNESS H. V
112WB14K10003 GE Range Top Hinge
113WB31K10250 GE Oven Left Hand Double Grate
114RANGETOP & BRKT ASM
115WB31K10248 GE Oven Center Double Grate
116WB31K10251 GE Oven Right Hand Double Burner Grate
117WB14K10004 GE Oven Pin Locator
121WB01X24460 GE Oven Screw
122WB1K5119 GE Oven Screw
136WB27X20536 GE Oven Overlay T012
150WB29K10023 GE Oven Burner Cap Assembly
151WB29K10022 GE Oven Burner Cap Assembly
152WB29K10024 GE Burner Cap Oven
153WB29K10045 GE Oven Surface Burner Cap
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156BURNER 12K
157WB16X24999 GE Oven Triple Ring Burner
158WB16K10076 GE Oven Oval Burner Assembly
159WB16K10055 GE Oven Burner Base
160WB01K10110 GE Oven Trilobular Screw
162WB29K10044 GE Stove Burner Cap Cover
165WB01X26841 GE Lock Washer
167WB27X20933 GE Oven RJ45 Housing Assembly
170SCREW MTG END CAP
175HARNESS GROUND
204WZ4X345D GE Screw Package 12 C92
204GEN WB01K10111
781WB31X23201 GE Oven Reversible Griddle
788WB34X21575 GE Oven Back Cover
