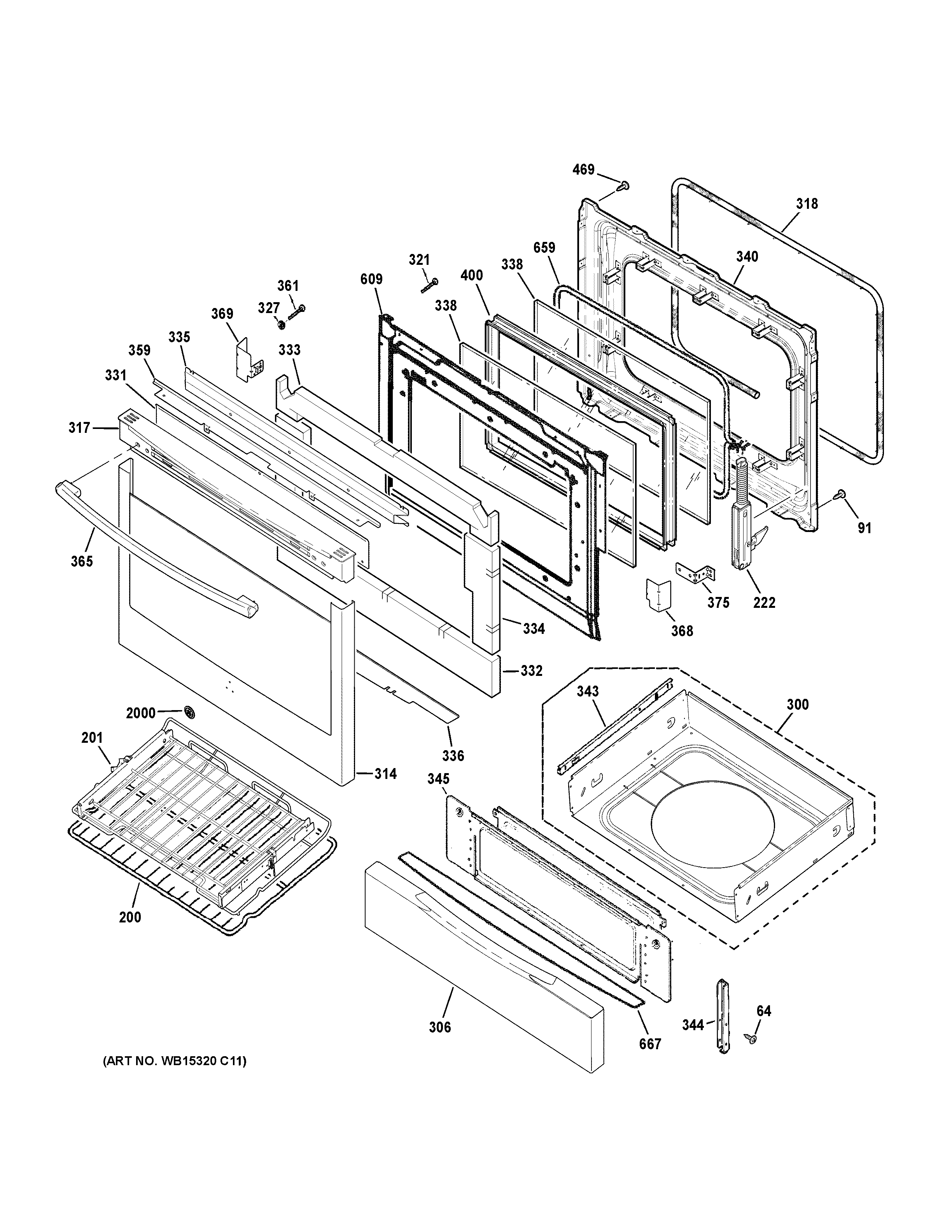

PGB920SEF2SS DOOR & DRAWER PARTS

PGB920SEF2SS DOOR & DRAWER PARTS

Written by

in

PGB920SEF2SS DOOR & DRAWER PARTS

Products

PositionProduct
64SCREW M4X8
91WB01T10008 GE Oven Screw 10-32
200WB48X21508 GE Oven Rack
201WB48X21543 GE Oven Rack Slide Assembly
222WB10X30271 GE Oven Door Hinge
222WB10X30484 GE Oven Door Hinge
300KIT DRAWER BODY ASM
306WB63X21517 GE Oven Drawer Panel
314GLASS DOOR ASM
317TRIM VENT
318WB32K10052 GE Oven Gasket
321WB02X32442 GE Screw 10-24
327WB01K10093 GE Oven Speednut
331WB35X21565 GE Inner Door Deflector
332WB35X21566 GE Door Insulation
333INSULATION DOOR
334WB35X21567 GE Door Insulation
335WB34X21570 GE Door Stiffener
336INSULATION TRIM
338WB57K10174 GE Range Crystal Window Door
340WB55K10084 GE Door Liner Weld Assembly
343GUIDE- SLIDE DRAWER
344WB39K20 GE Oven Mounting Bracket Drawer
345WB55K10068 GE Oven Drawer Liner
359COMPLEMENT VENT TRIM
361WB1X5731D GE Oven Nut Package of 12
365HANDLE AND END CAP ASM
368HEAT DEFLECTOR DOOR RT
369HEAT DEFLECTOR DOOR LT
375BRACKET HANDLE
400WB34K10141 GE Range Oven Glass Metal Frame
469WB01K10116 GE Oven Screw 10-16
609DOOR GUARD
659WB35X21685 GE Oven Cord Fiberglass
667WB35X21686 GE Door Insulation
2000GE BADGE GRAY
