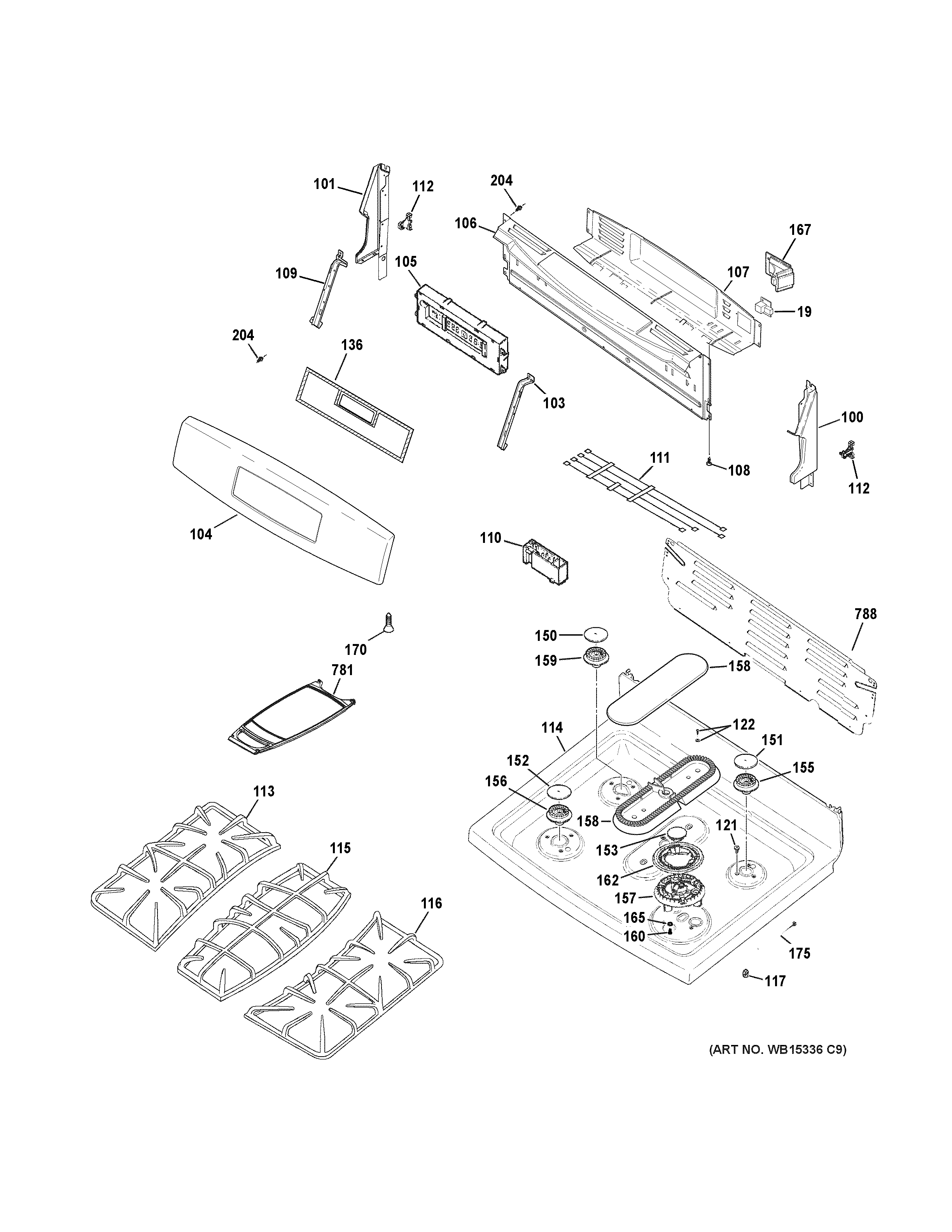

PGB920SEF3SS CONTROL PANEL & COOKTOP

Products

Position	Product
100	END SUPPORT
101	END SUPPORT
103	BRACKET CONTROL RIGHT
104	TRIM CONTROL
105	CONTROL BOARD T012 ELE
106	COVER BACK UPPER
107	WB34K10129 GE Lower Back Cover
108	WB1X5364 GE Oven Mounting Screw
109	BRACKET CONTROL LEFT
110	WB13X26360 GE Oven Spark Module
111	ELECTRODES, HARNESS H. V
112	WB14K10003 GE Range Top Hinge
113	WB31K10250 GE Oven Left Hand Double Grate
114	RANGETOP & BRKT ASM
115	WB31K10248 GE Oven Center Double Grate
116	WB31K10251 GE Oven Right Hand Double Burner Grate
117	WB14K10004 GE Oven Pin Locator
121	WB01X24460 GE Oven Screw
122	WB1K5119 GE Oven Screw
136	WB27X20536 GE Oven Overlay T012
150	WB29K10023 GE Oven Burner Cap Assembly
151	WB29K10022 GE Oven Burner Cap Assembly
152	WB29K10024 GE Burner Cap Oven
153	WB29K10045 GE Oven Surface Burner Cap
155	WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156	BURNER 12K
157	WB16X24999 GE Oven Triple Ring Burner
158	WB16K10076 GE Oven Oval Burner Assembly
159	WB16K10055 GE Oven Burner Base
160	WB01K10110 GE Oven Trilobular Screw
162	WB29K10044 GE Stove Burner Cap Cover
165	WB01X26841 GE Lock Washer
167	WB27X20933 GE Oven RJ45 Housing Assembly
170	SCREW MTG END CAP
175	HARNESS GROUND
204	GEN WB01K10111
204	WZ4X345D GE Screw Package 12 C92
781	WB31X23201 GE Oven Reversible Griddle
788	WB34X21575 GE Oven Back Cover
