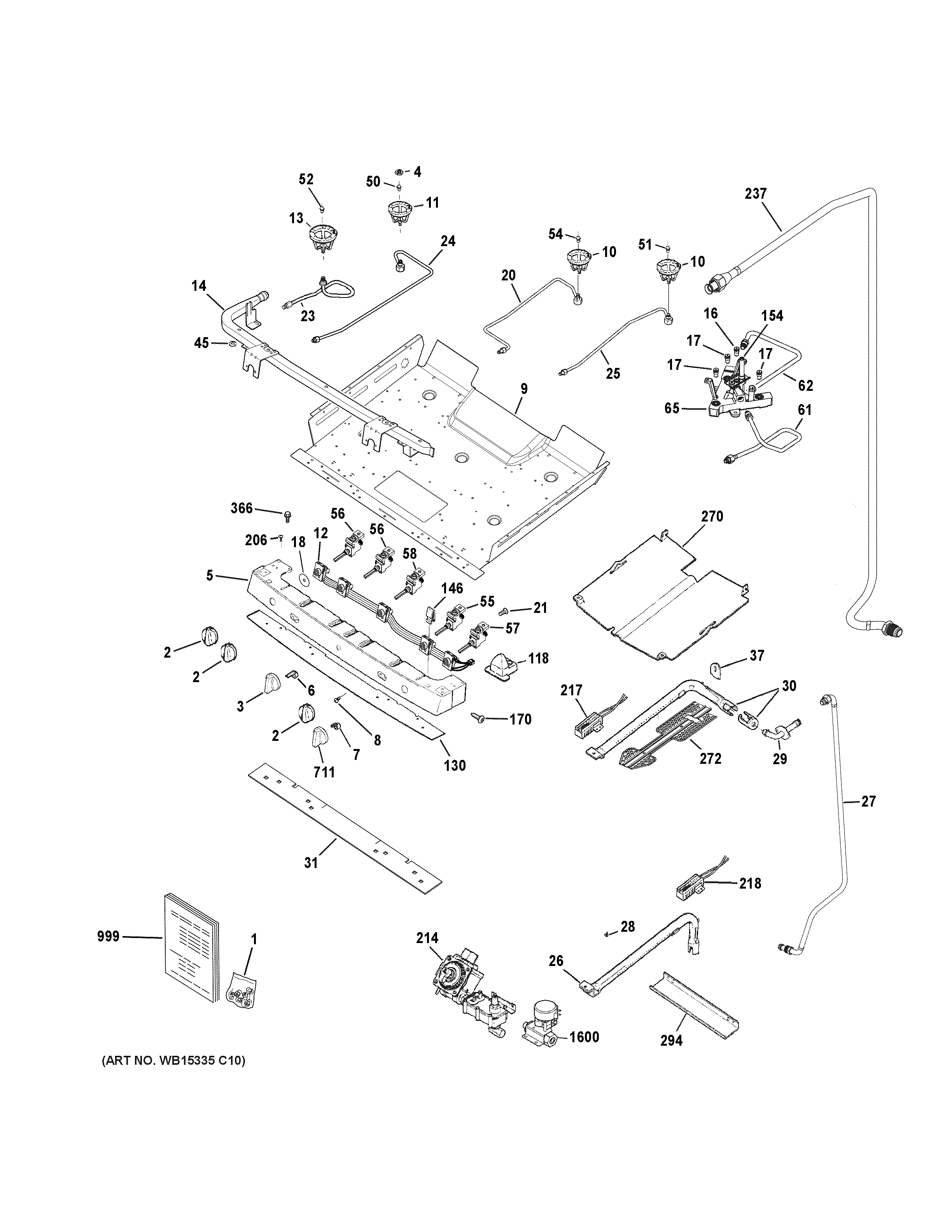

PGB920SEF3SS GAS & BURNER PARTS

PGB920SEF3SS GAS & BURNER PARTS

Written by

in

PGB920SEF3SS GAS & BURNER PARTS

Products

PositionProduct
1KIT LP CONVERSION ASM
1KIT HIGH ALTITUDE ASM
2WB03X20563 GE Oven Knob Profile Assembly
3WB03X20565 GE Oven Burner Knob
4WB01K10037 GE Oven Economic Nut
5ASM MANIFOLD PANEL
6KNOB LOCATOR
7KNOB LOCATOR
8WB01K10002 GE Oven Screw 8-32
9BURNER BOX SP
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12HARNESS SWITCHES
13WB02K10362 GE Oven CKT Bracket MDM & L
14MANIFOLD PIPE
16WB28K10694 GE Oven Spud Orifice
17WB28K10693 GE Oven Orifice Spud
18WB2K24 GE Oven Valve Cover
20ORIFICE HOLDER ASM
21WB01K10067 GE Oven Screw 1/4" HD 20
23ORIFICE HOLDER LF
24ORIFICE HOLDER LR
25ORIFICE HOLDER RR
26BURNER BAKE
27WB28X24773 GE Oven Burner Supply Tube
28WB1X1293 GE Oven Screw
29WB28X20389 GE Oven 90-Degree Elbow Assembly
30WB16X20418 GE Oven Broil Burner
31INSULATION BURNER BOX
37WB34X24753 GE Igniter Cover
45GEN WB01X1378
50WB28K10023 GE Oven Orifice
51WB28K10834 GE Oven Orifice Assembly
52WB28K10214 GE Oven Orifice
54WB28K10215 GE Oven Orifice
55WB21X20469 GE Oven Burner Valve 270
56VALVE BURNER 270
57WB21X20472 GE Oven Burner Valve 3R 310
58WB21X20471 GE Oven Burner Valve
61TUBE SIMMER DUAL VALVE
62TUBE MAIN DUAL VALVE
65WB28K10784 GE Oven Inject Top Burner Assembly
118GEN WB14K10005
130MANIFOLD EYEBROW
146GEN WB02K0052
154ELECTRODE TOP
170SCREW MTG END CAP
206WB01K10091 GE Oven Screw
214WB19K10074 GE Oven Control Valve Assembly
217WB13X25261 GE Oven Igniter Glowbar
218WB13K21 GE Oven Igniter with 7 Leads
237TUBE MANIFOLD SUPPLY
270WB49K10025 GE Range Deflector
272WB34X20303 GE Range Broil Shield
294GEN WB63K10040
366WB1K5062 GE Oven Screw
711KNOB GE PROFILE ASM
999PM INSTALL INSTRUCTIONS
999PM OWNERS MANUAL
999LP CONVERSION INST
1600WB19K10059 GE Oven Valve Lockout
