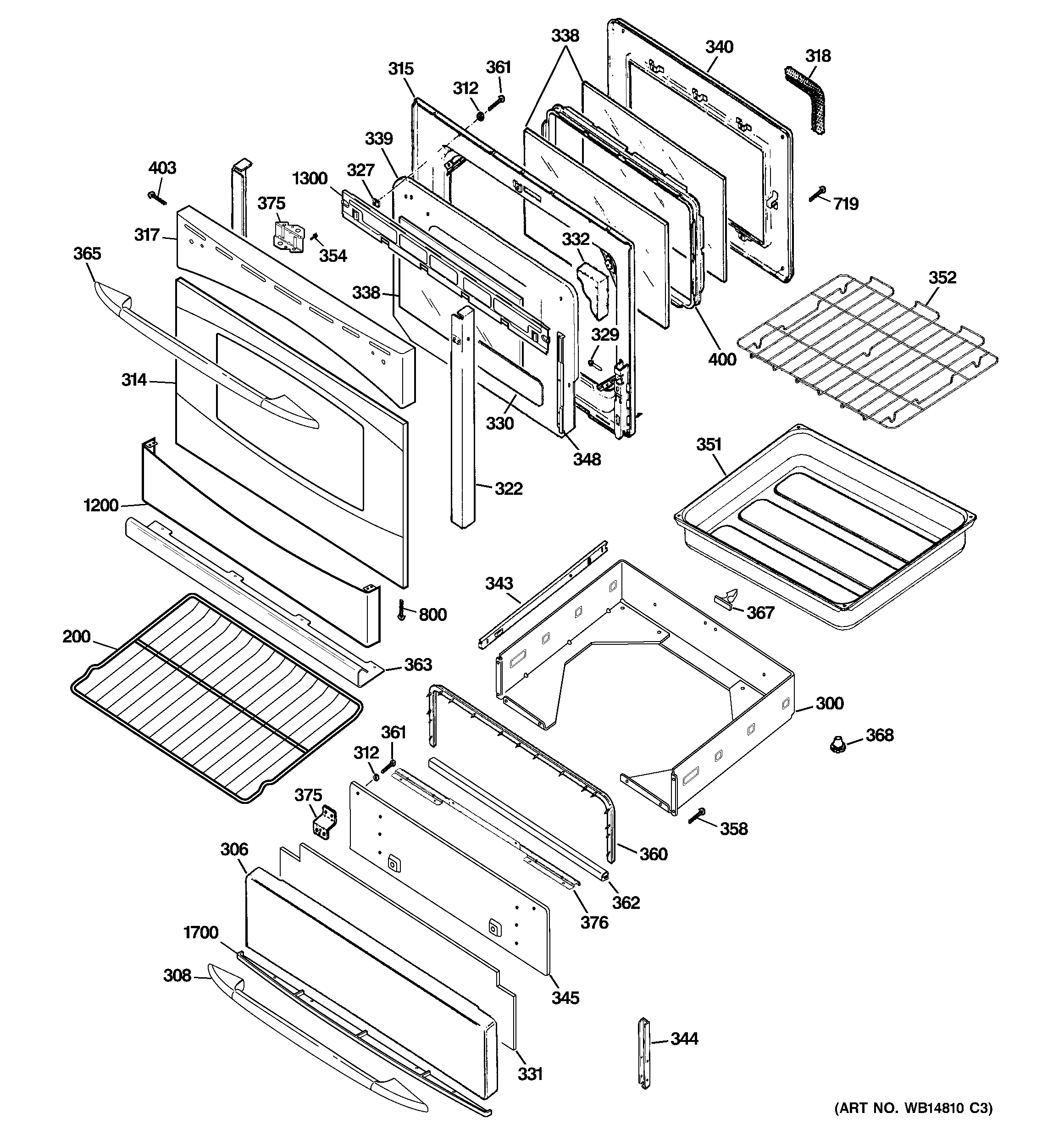

PGB928SEM3SS DOOR & DRAWER PARTS

PGB928SEM3SS DOOR & DRAWER PARTS

Written by

in

PGB928SEM3SS DOOR & DRAWER PARTS

Products

PositionProduct
200WB48T10095 GE Oven Rack
300WB58K10010 GE Oven Frame Drawer & Slide Assembly
306GEN WB55K10039
308WB15T10190 GE Oven Handle Assembly 30 (PRF-SS)
312WB1X119D GE Oven Range Washer
314GEN WB57K10118
315GEN WB55K10034
317GEN WB07K10345
318WB35X29668 GE Oven Door Gasket Assembly
322TRIM POST
322TRIM POST
327WB01K10093 GE Oven Speednut
329WB1X558D GE Oven Screw Package
330GEN WB35K0022
331GEN WB35K10053
332WB35K10150 GE Bottom Door Oven Insulation
332GEN WB35K10096
338GEN WB56K10021
338CRYSTAL WINDOW
339WB56K10037 GE Door Insulation Guard
340WB55K10033 GE Oven Welded Panel
343WB39K10027 GE Range Internal Slide
344WB39K20 GE Oven Mounting Bracket Drawer
345WB55K10024 GE Oven Drawer Liner
348GEN WB02K10100
351GEN WB48K10009
352WB48K10010 GE Oven Baking Drawer Rack
354WB01K10009 GE Oven Handle Mounting Screw 10-32
354WB01K10047 GE Drawer Screw 10-32 HXW 9/16
358WR01X10389 GE Refrigerator Screw 8-18 AB PHR 1/2 S
360WB04K10017 GE Oven Drawer Gasket Assembly
361WB1K63 GE Oven Screw
362WB04K10018 GE Oven Lower Gasket
363GEN WB07K10342
365GEN WB15K10063
367WB02K10111 GE Oven Strike
368WB2K15 GE Oven Grate Bumper
368WB02K10112 GE Oven Bumper Blue
375GEN WB02K10151
375GEN WB02K10064
376WB63K10062 GE Oven Drawer Bracket
400WB34K10087 GE Oven Window Spacer Assembly
403SCREW MTG END CAP
719WB1X536 GE Oven Screw
800WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
