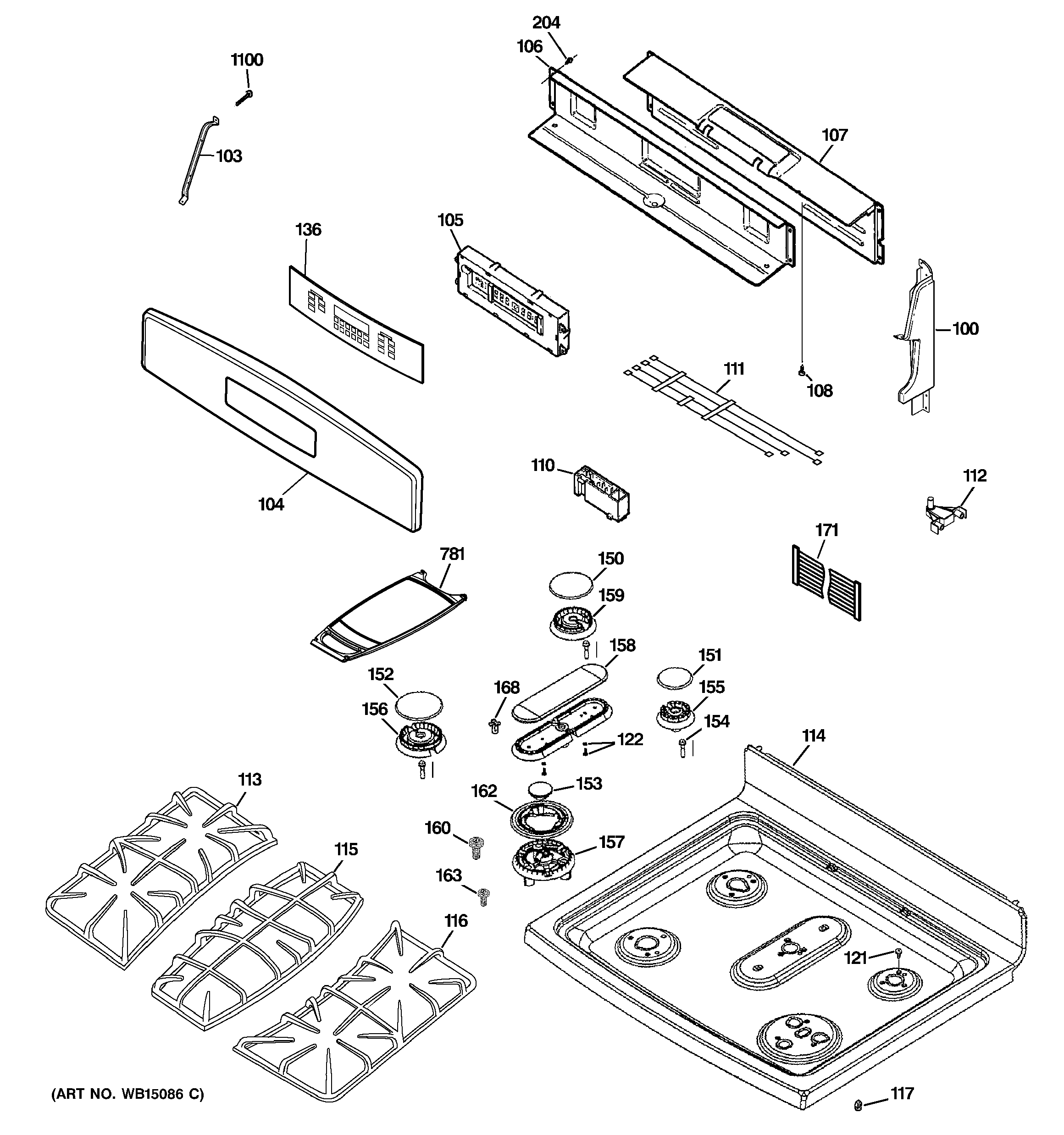

PGB930DET1BB CONTROL PANEL & COOKTOP

PGB930DET1BB CONTROL PANEL & COOKTOP

Written by

in

PGB930DET1BB CONTROL PANEL & COOKTOP

Products

PositionProduct
100END SUPPORT RT
100END SUPPORT LF WH
100END SUPPORT LF
100END SUPPORT RT WH
103GEN WB02K10152
104GEN WB36K10701
104GEN WB36K10660
105GEN WB27K10381
106COVER BACK UPPER
107WB34K10129 GE Lower Back Cover
108WB1X5364 GE Oven Mounting Screw
110WB13X26360 GE Oven Spark Module
110HARNESS GROUND
111GEN WB18K10037
112WB14K10003 GE Range Top Hinge
113WB31K10250 GE Oven Left Hand Double Grate
114GEN WB62K10137
114GEN WB62K10139
115WB31K10248 GE Oven Center Double Grate
116WB31K10251 GE Oven Right Hand Double Burner Grate
117WB14K10004 GE Oven Pin Locator
121GEN WB01K0078
121WB1K84 GE Oven Screw and
122WB01K10106 GE Oven Circuit Screw
136GEN WB27K10387
136GEN WB27K10394
150WB29K10023 GE Oven Burner Cap Assembly
151WB29K10022 GE Oven Burner Cap Assembly
152WB29K10024 GE Burner Cap Oven
153WB29K10045 GE Oven Surface Burner Cap
154GEN WB13K10014
154ELECTRODE TOP
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156BURNER 12K
157WB16K10079 BURNER ASSY
158WB16K10076 GE Oven Oval Burner Assembly
159WB16K10055 GE Oven Burner Base
160WB01K10110 GE Oven Trilobular Screw
162WB29K10044 GE Stove Burner Cap Cover
168WB01K10112 GE Range Oven Electrode Clip
171WB18T10386 GE Oven Touch Glass Wire Harness
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
781WB31X23201 GE Oven Reversible Griddle
1100WB01T10016 GE Oven Screw 8-18 AB Hex
