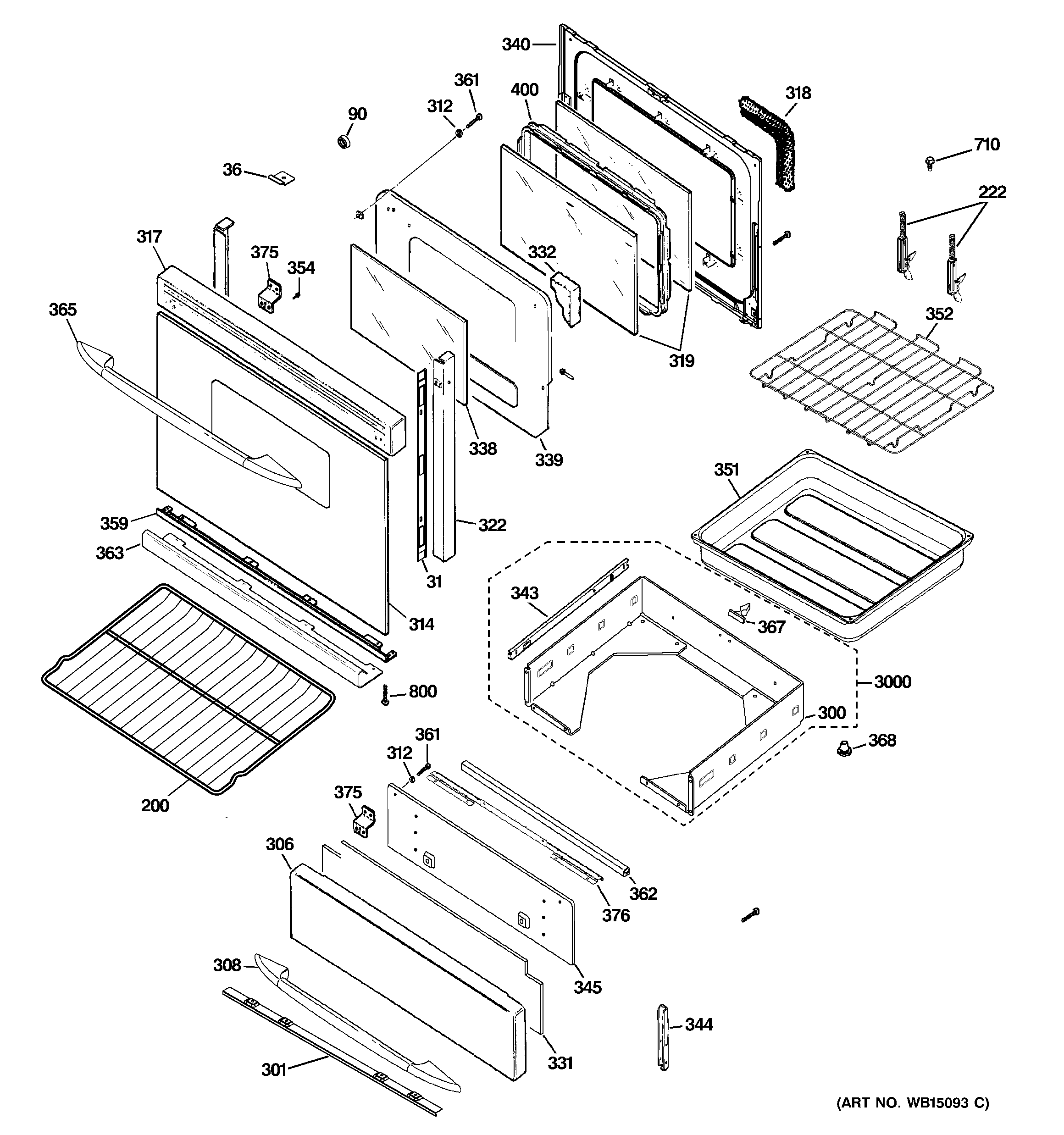

PGB930DET1BB DOOR & DRAWER PARTS

PGB930DET1BB DOOR & DRAWER PARTS

Written by

in

PGB930DET1BB DOOR & DRAWER PARTS

Products

PositionProduct
36BRACKET GLASS
90WB02X28737 GE Oven Front Frame Bumper
200OVEN RACK
222HINGE DOOR
222HINGE DOOR
300WB58K10010 GE Oven Frame Drawer & Slide Assembly
301GEN WB07K10378
306GEN WB55K10023
306GEN WB55K10026
308WB15T10136 GE Oven Drawer Handle
308GEN WB15T10138
312WB1X119D GE Oven Range Washer
314GEN WB57K10078
314GEN WB57K10076
317GEN WB07K10421
317WB07K10420 GE Vent Trim Assembly
318WB32K10052 GE Oven Gasket
319WB57K10174 GE Range Crystal Window Door
322GEN WB07K10237
322GEN WB07K10258
322GEN WB07K10259
322GEN WB07K10236
331GEN WB35K10053
332WB35K10222 GE Oven Insulation
332WB35K10221 GE Range Insulation
338CRYSTAL WINDOW
339WB34K10137 GE Door Insulation Guard
340WB55K10084 GE Door Liner Weld Assembly
343WB39K10027 GE Range Internal Slide
344WB39K20 GE Oven Mounting Bracket Drawer
345WB55K10024 GE Oven Drawer Liner
351WB48K10033 GE Oven Drawer Pan
352WB48K10010 GE Oven Baking Drawer Rack
354WB01K10012 GE Oven Screw 8-22 PL 1HX
359WB07K10232 GE Oven Bottom Trim Assembly
359TRIM BOTTOM ASM
361WB1X5731D GE Oven Nut Package of 12
362WB04K10018 GE Oven Lower Gasket
363GEN WB07K10342
365GEN WB15T10141
365GEN WB15T10139
367WB02K10111 GE Oven Strike
368WB02K10112 GE Oven Bumper Blue
368WB2K15 GE Oven Grate Bumper
375GEN WB02K10064
375GEN WB02K10341
376WB63K10062 GE Oven Drawer Bracket
400WB34K10141 GE Range Oven Glass Metal Frame
710WB1X536 GE Oven Screw
710WB02K10254 GE Oven Anti-Tip Bracket Assembly
800WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
