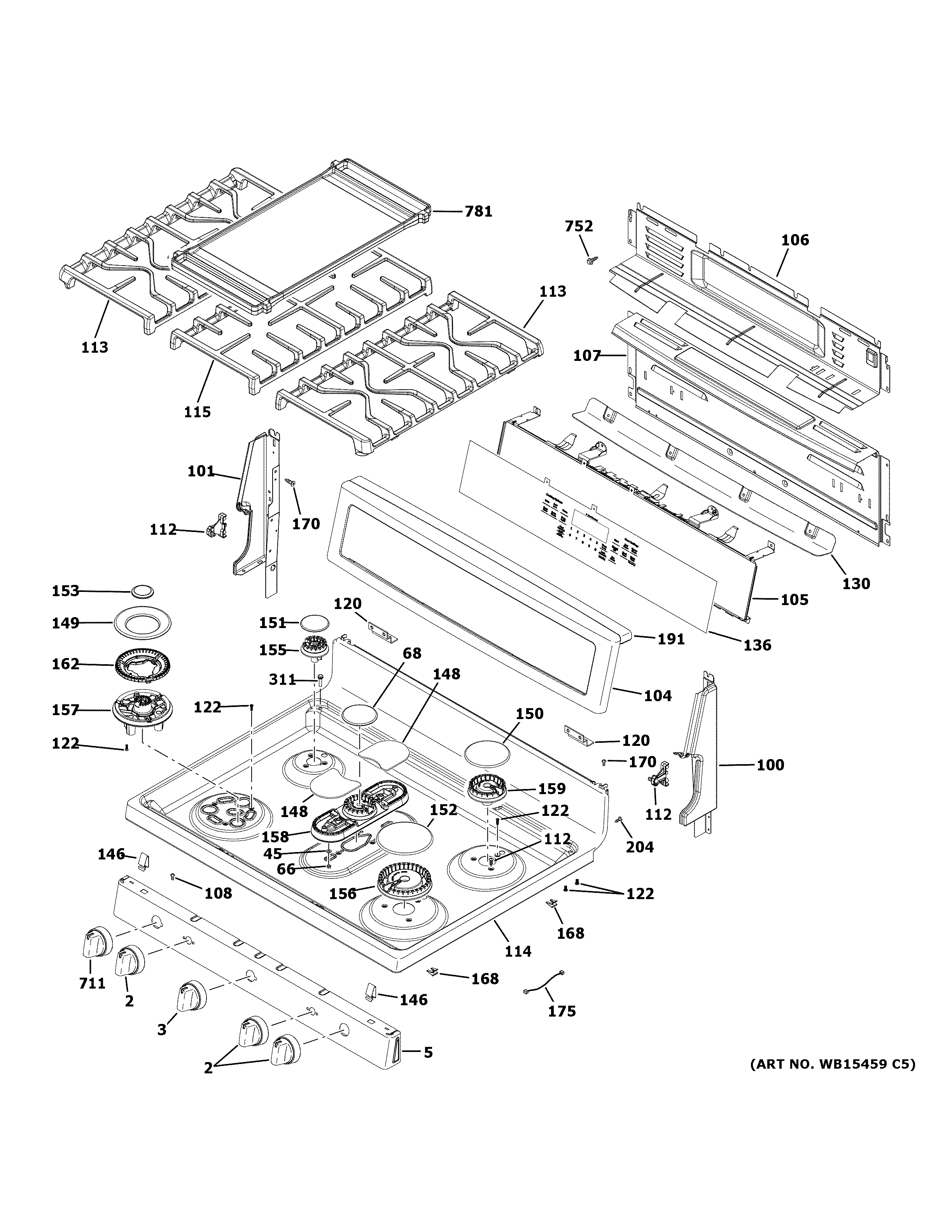

PGB930SEJ7SS CONTROL PANEL & COOKTOP

Products

Position	Product
2	WB03X24988 RANGE KNOB – STAINLESS STEEL
3	WB03X24991 GE Oven Knob Assembly
5	WB36X32655 GE Stainless Steel Manifold Pan
45	GEN WB01X1378
66	GEN WB01X1385
68	WB29X24971 GE Oven Center Burner Cap Assembly
100	WB07X29143 GE Oven End Support
101	WB07X29144 GE Oven End Support
104	WB36X24974 GE Range Backguard
105	WB27X35449 GE Refrigerator Overlay and Control Assembly
106	WB34X24745 GE Oven Upper Back Cover
107	WB34X24746 GE Oven Back Cover Lower
108	WB1X5364 GE Oven Mounting Screw
112	WB14K10003 GE Range Top Hinge
113	GRATE ASM
114	WB62X30714 GE Range Bracket Top Assembly
115	WB31X24737 GE Grate Central
120	WB02X20735 GE Top Rear Support
122	WB01X24735 GE Oven CKT Screw
130	WB34X25717 GE Oven Backguard Eyebrow
136	WB07X35078 GE Overlay
146	WB02X26569 GE Range Top Clip
148	WB29X24972 GE Oven Burner Endcap Assembly DUA
149	WB29X28253 GE Oven Surface Burner Cap
150	WB29K10023 GE Oven Burner Cap Assembly
151	WB16X28654 GE Oven Burner Cap Cover
152	CAP BURNER ASM (15K)
153	WB16X28252 GE Oven Burner Cap Inner
155	WB16X24721 GE Oven Range Small Cooktop Burner V2
156	WB16X24722 GE Oven Gas Range XL Surface Burner
157	WB16X28656 GE Oven Surface Burner Base
158	WB16X24975 GE Oven Dual Oval Burner and Plate
159	WB16X24724 GE Oven Medium Burner
162	HEAD BURNER
168	WB02X24976 GE Oven Igniter Clip V2
170	SCREW MTG END CAP
175	WB18X31424 GE Ground Harness
191	WB34X29145 GE Backguard Top Complement
204	WB1K5062 GE Oven Screw
311	BUMPER
711	WB03X24990 GE Oven Knob Assembly
752	WZ4X345D GE Screw Package 12 C92
781	WB31X24998 GE Oven Reversible Grille
