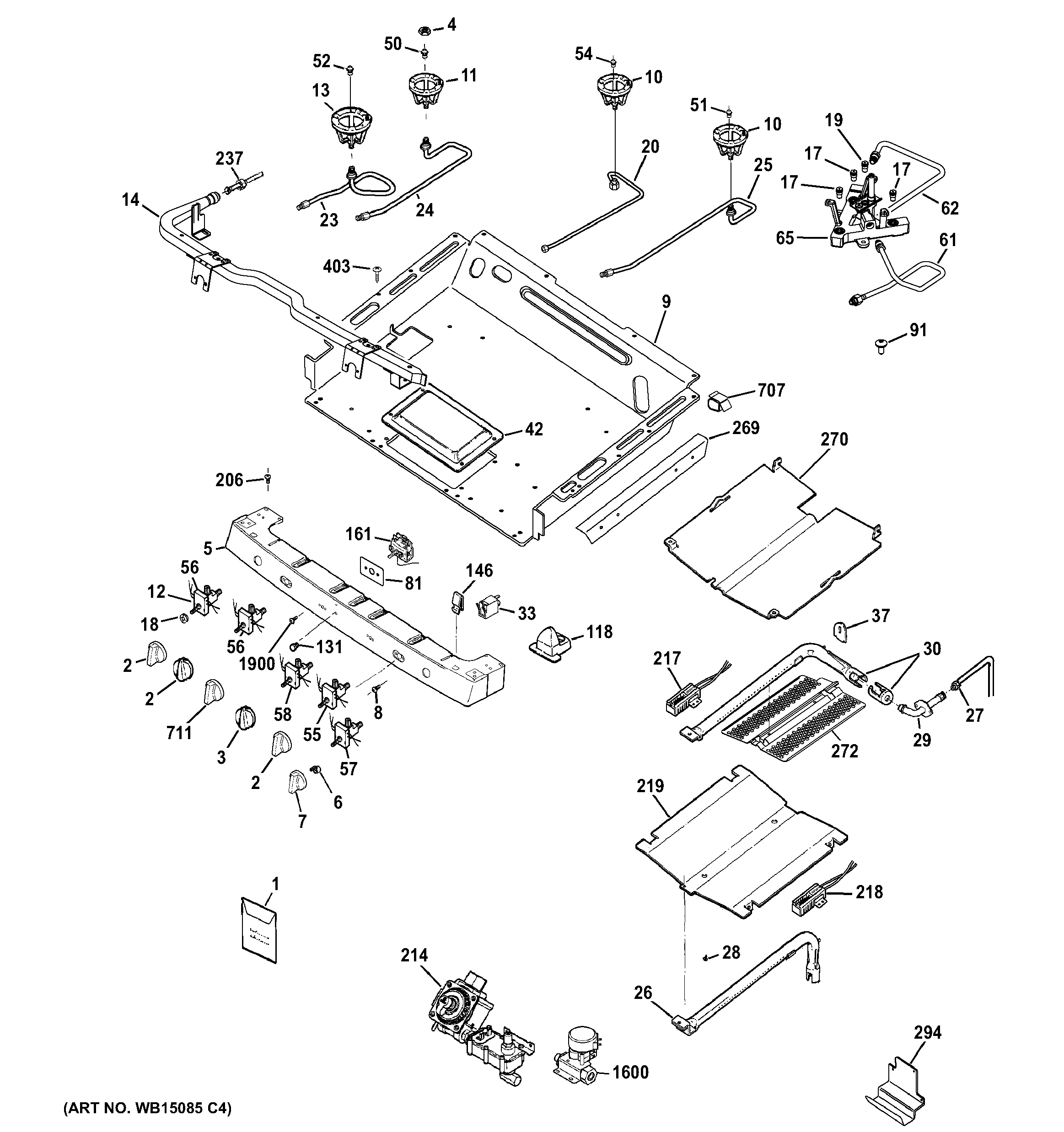

PGB930SET2SS GAS & BURNER PARTS

PGB930SET2SS GAS & BURNER PARTS

Written by

in

PGB930SET2SS GAS & BURNER PARTS

Products

PositionProduct
1GEN 31-10781
1GEN 31-14978
1GEN 31-10774-1
1GEN 49-85183
1GEN WB28K10829
1GEN 31-10774
1WB02T10111 GE Cleaner Stainless Steel
2KNOB GE PROFILE ASM
3KNOB GE PROFILE ASM
4WB01K10037 GE Oven Economic Nut
5GEN WB36K11006
6GEN WB03K10340
7GEN WB03K10342
8WB01K10002 GE Oven Screw 8-32
9BOX BURNER SP
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12GEN WB18K10078
13WB02K10362 GE Oven CKT Bracket MDM & L
14GEN WB28K10722
14GEN WB01X1378
17WB28K10693 GE Oven Orifice Spud
18WB2K24 GE Oven Valve Cover
19WB28K10694 GE Oven Spud Orifice
20ORIFICE HOLDER ASM
23ORIFICE HOLDER LF
24ORIFICE HOLDER LR NG
25ORIFICE HOLDER RR
26WB16K10081 GE Oven Bake Burner
27WB28K10168 GE Oven Burner Supply Tube
28WB1X1293 GE Oven Screw
29WB28K10798 GE Dual Cavity Elbow
30WB16K10086 GE Range Broil Burner
33WB25K10010 GE Oven Light Indicator Pilot
37WB34K14 GE Igniter Cover
42WB63K10063 GE Burner Box Cover
50WB28K10023 GE Oven Orifice
51WB28K10834 GE Oven Orifice Assembly
52WB28K10214 GE Oven Orifice
54WB28K10215 GE Oven Orifice
55WB21K10096 GE Oven Burner Valve 270
56WB21K10119 GE Oven Burner Valve 270
57WB21K10141 GE Oven Dual Gas Valve Assembly
58WB21K10097 GE Oven Burner Valve
61GEN WB28K10723
62GEN WB28K10724
65WB28K10784 GE Oven Inject Top Burner Assembly
81WB37K10012 GE Thermostat Cover
91WB01T10008 GE Oven Screw 10-32
118GEN WB14K10005
131WB25K10009 GE Oven Lens
146GEN WB02K0052
161WB20K10017 GE Oven Thermostat
206WB01K10091 GE Oven Screw
214WB19K10079 GE Oven Control Valve Assembly
217WB13X25261 GE Oven Igniter Glowbar
218WB13K21 GE Oven Igniter with 7 Leads
219DEFLECTOR OVEN
237GEN WB28K10428
270WB49K10025 GE Range Deflector
272WB49K10045 GE Broil Shield
294WB63K10054 GE Terminal Cover
707WB02K10267 GE Wire Clip
711GEN WB03K10335
1600WB19K10059 GE Oven Valve Lockout
1900WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
