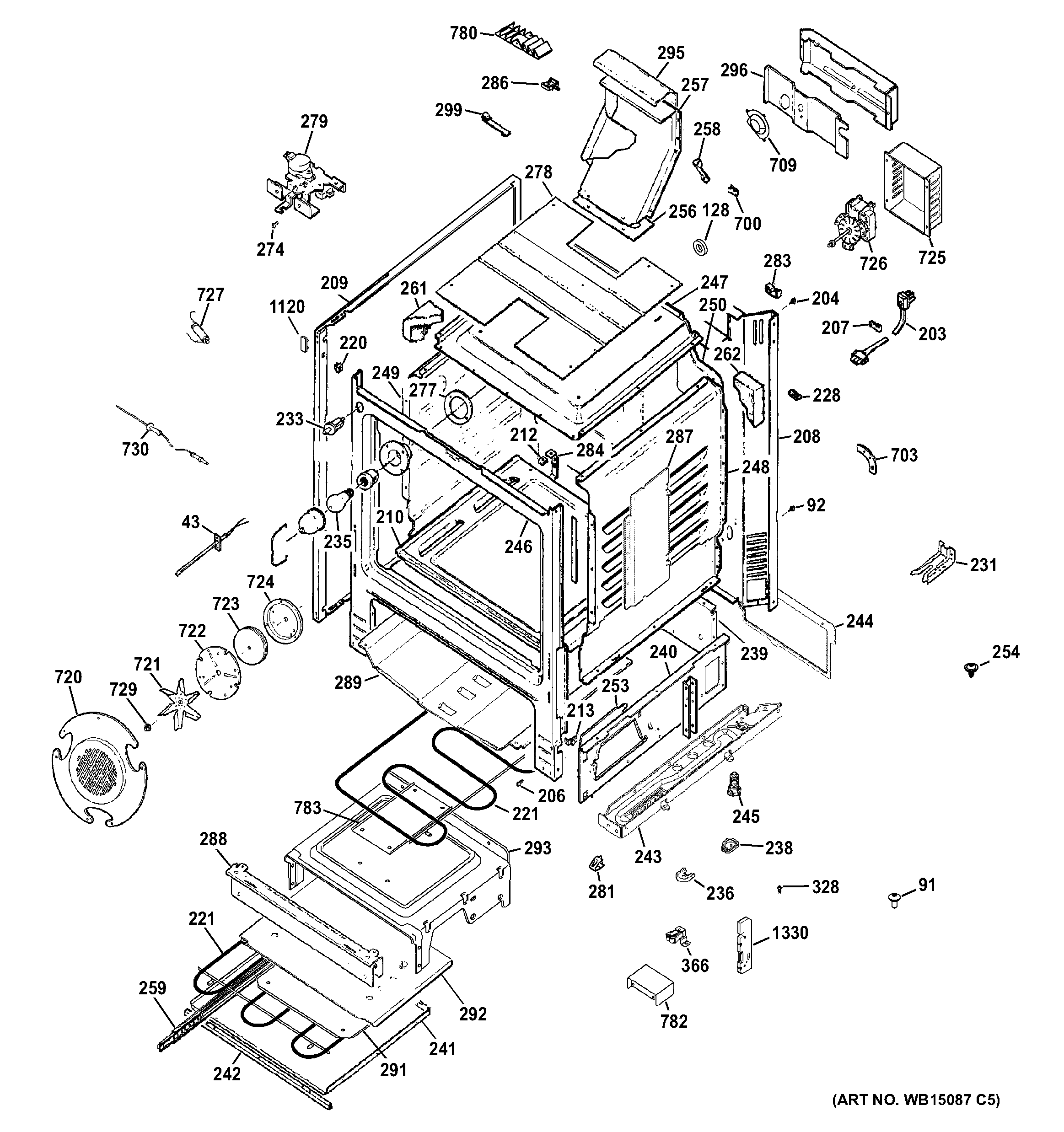

PGB930SET3SS BODY PARTS

PGB930SET3SS BODY PARTS

Written by

in

PGB930SET3SS BODY PARTS

Products

PositionProduct
43TEMPERATURE SENSOR
91WB01T10008 GE Oven Screw 10-32
92WB1X1261 GE Oven Screw
128LAMP INSULATION
203WB18K10081 GE Oven Line Cord
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
204GEN WB01K10111
207WB2K36 GE Oven Clamp Cable
208GEN WB62K10138
209WB63K10119 GE Oven Side Panel, Black
212WB1K2 GE Oven Speednut
213WB1K3 GE Oven Speed Nut
220GEN WB02K0008
221WB02K10294 GE Oven Grommet
221WB44K10014 GE Oven Top Heating Element
221WB44K10015 GE Oven Bottom Heating Element
228GEN WB02X7066
231WB02K10254 GE Oven Anti-Tip Bracket Assembly
233WB24K10068 GE Oven Plunger Switch
235WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
236WB02K10104 GE Base Spacer
238WB02K10270 GE Spacer Base
239PANEL REAR BROIL
240WB63K10055 GE Oven Broil Side Panel
240WB63K10056 GE Oven Broil Side Panel
241WB63K10060 GE Rack Bottom Panel
242GEN WB63K0005
243SUPPORT BASE LEFT
243WB63K10256 GE Oven Support Base
244WB63K10167 GE Drawer Back
245WB02K10182 GE Oven Leveling Leg
246GEN WB63K10261
247WB53K10017 GE Top Panel
248WB53K10052 GE Oven Side
249WB53K10058 GE Oven Side
250WB63K10228 GE Oven Back Panel
253WB02K10109 GE Access Cover Spring
253WB02K10108 GE Access Spring Cover
254GEN WB01K0053
256WB32K10051 GE Vent Gasket
257WB38K10008 GE Oven Vent Assembly
258WB38K2 GE Range Vent Brace
259WB39K10025 GE Oven Slide and Bearing Assembly
259WB39K10026 GE Oven Slide and Bearing Assembly
262WB35K10236 GE Oven Rear Insulation
274GEN WB01K0044
277WB32K10044 GE Oven Light Gasket
279GEN WB02K10358
281WB02K10073 GE Oven Clip Capillary
283WB02X21679 GE Oven Wire Clip
284WB2K32 GE Oven Support Bracket
286WB02K10068 GE Wire Clip
287GEN WB34K0031
287WB34K30 GE Radiation Guard
288BRACE
289WB34K10086 GE Oven Lower Heat Shield
291WB49K10011 GE Bottom Deflector
292WB35K10054 GE Oven Top Insulation Drawer
295GEN WB35K10218
296WB34K13 GE Oven B Panel Cover
366WB02K10110 GE Oven Catch
703BRACKET OVEN
709WB08K10018 GE Range Light Cover
720WB34K10142 GE Fan Cover Assembly
721WB2X8351 GE Oven Blade Fan
722WB34K10038 GE Oven Fan Cover Back
723WB35K10038 GE Fan Insulator Range
724WB02K10034 GE Range Fan Support
725GEN WB34K10125
726WB26K10003 GE Oven Convection Fan Motor
727PROBE COVER
727WB34K10121 GE Oven Probe Receptacle & Harness
729WB02T10017 GE Oven Nut
730WB20T10024 GE Oven Thermistor Probe
780WB38K10022 GE Oven Diffuser Vent
782WB34K10128 GE Heating Element Cover
783GEN WB49K10012
1120WB02K10178 GE Oven Bumper
1330WB10K10029 GE Oven Receiver Hinge
