PGB935SET1SS GAS & BURNER PARTS

PGB935SET1SS GAS & BURNER PARTS

Written by

in

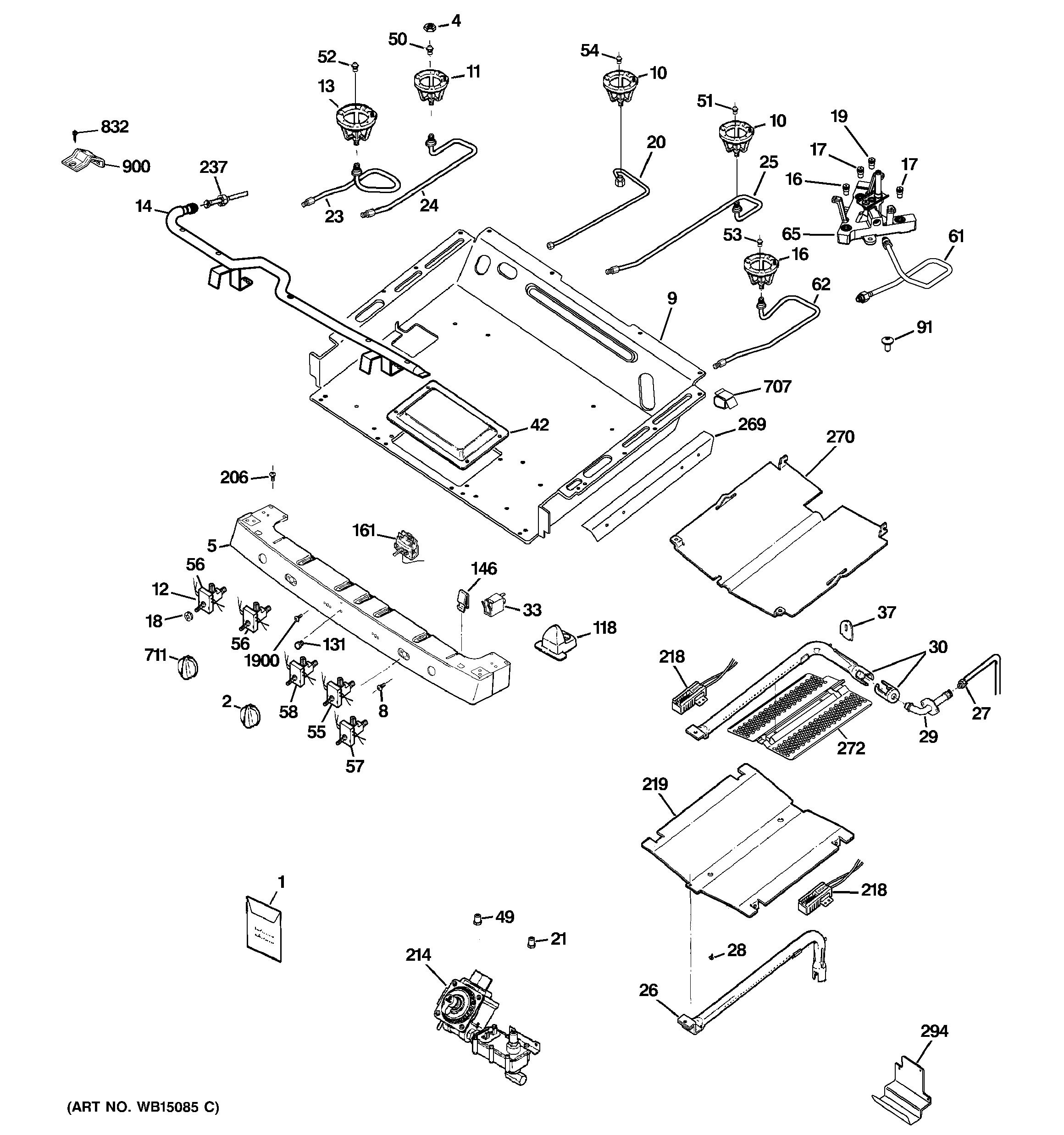

PGB935SET1SS GAS & BURNER PARTS

Products

PositionProduct
1WB02T10111 GE Cleaner Stainless Steel
1GEN 49-85189-1
1GEN 31-21397
2KNOB GE PROFILE ASM
4WB01K10037 GE Oven Economic Nut
5GEN WB36K10936
8WB01K10002 GE Oven Screw 8-32
9BOX BURNER SP
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12GEN WB18K10078
13WB02K10362 GE Oven CKT Bracket MDM & L
14GEN WB28K10722
16GEN WB28K10755
16WB28K10694 GE Oven Spud Orifice
17GEN WB28K10756
17WB28K10693 GE Oven Orifice Spud
18WB2K24 GE Oven Valve Cover
18WB37K10012 GE Thermostat Cover
19GEN WB28K10692
20ORIFICE HOLDER ASM
21GEN WB28K10718
23ORIFICE HOLDER LF
24ORIFICE HOLDER LR NG
25ORIFICE HOLDER RR
26GEN WB16K10054
27WB28K10168 GE Oven Burner Supply Tube
28WB1X1293 GE Oven Screw
29GEN WB28K10719
30WB16K10086 GE Range Broil Burner
33WB25K10010 GE Oven Light Indicator Pilot
37WB34K14 GE Igniter Cover
42WB63K10063 GE Burner Box Cover
49GEN WB28K10720
50WB28K10215 GE Oven Orifice
51WB28K10031 GE Oven Orifice
51GEN WB28K10732
52GEN WB28K10733
54WB28K10742 GE Orifice Spud
54WB28K10214 GE Oven Orifice
55WB21K10096 GE Oven Burner Valve 270
56WB21K10119 GE Oven Burner Valve 270
57WB21K10141 GE Oven Dual Gas Valve Assembly
58WB21K10097 GE Oven Burner Valve
61GEN WB28K10723
62GEN WB28K10724
65WB28K10784 GE Oven Inject Top Burner Assembly
91WB01T10008 GE Oven Screw 10-32
118WB02K10104 GE Base Spacer
118GEN WB14K10005
131WB25K10009 GE Oven Lens
146GEN WB02K0052
161WB20K10017 GE Oven Thermostat
206WB01K10091 GE Oven Screw
214WB19K10074 GE Oven Control Valve Assembly
218WB13X25261 GE Oven Igniter Glowbar
218WB13K21 GE Oven Igniter with 7 Leads
219DEFLECTOR OVEN
237WB28X24772 GE Oven Gas Tube Connector
270WB49K10025 GE Range Deflector
272WB49K10045 GE Broil Shield
294WB63K10054 GE Terminal Cover
707WB02K10267 GE Wire Clip
711GEN WB03K10335
832WB01K10080 GE Oven Thermostat Screw
900WB02K10297 GE Oven Valve Bracket
1900WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
