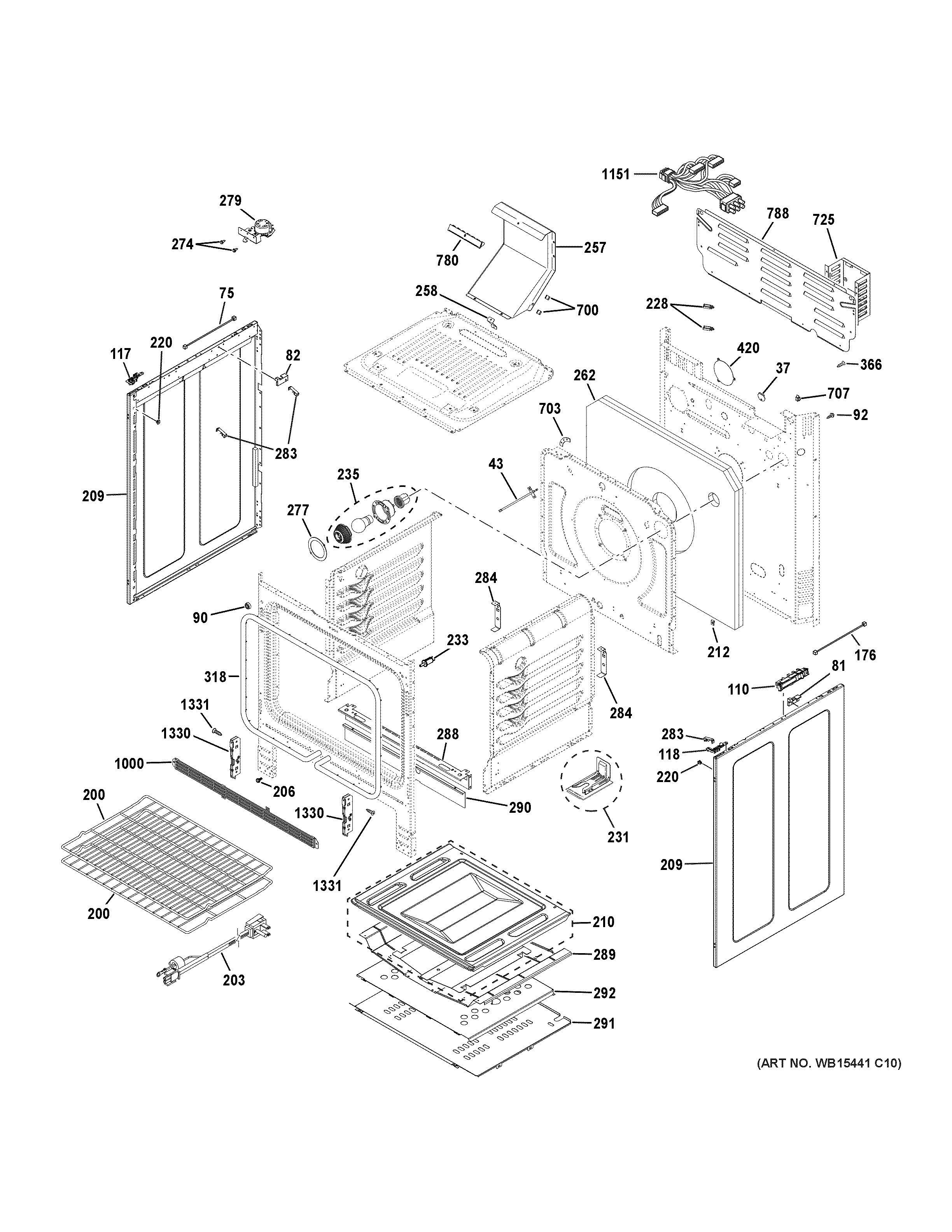

PGB935YP4FS BODY PARTS

PGB935YP4FS BODY PARTS

Written by

in

PGB935YP4FS BODY PARTS

Products

PositionProduct
37WB34X24753 GE Igniter Cover
43WB24X25557 GE Oven Sensor Assembly
75WB18X25597 GE Ground Harness
81HOLDER RANGETOP
82WB02X24942 GE Rantop Holder
90WB02X28738 GE Oven Front Frame Bumper
92WB1X1261 GE Oven Screw
110WB13X24741 GE Oven Spark Module
117BRACKET MANIFOLD SIDE LEFT
118BRACKET MANIFOLD SIDE RIGHT
176WB18X27594 GE Ground Harness
200OVEN RACK
203WB18X28855 GE Oven Power Cord
206WB01K10091 GE Oven Screw
209WB56X29670 GE Oven Side Panel
210WB35X37968 GE Heat Shield
212WB1K2 GE Oven Speednut
220GEN WB02K0008
228GEN WB02X7066
231WB02K10254 GE Oven Anti-Tip Bracket Assembly
233WB24X27550 GE Oven Plunger Switch
235WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257WB34X20294 GE Vent Assembly
258BRACE VENT
262WB35X28786 GE Oven Back Insulation
274GEN WB01K0044
277WB32K10044 GE Oven Light Gasket
279WB10X24780 GE Oven Automatic Latch
283WB02X21679 GE Oven Wire Clip
284WB2K32 GE Oven Support Bracket
288BRACE
289WB34K10086 GE Oven Lower Heat Shield
290GEN WB34K0012
291WB63K16 GE Oven Bottom Guard
292WB63K10187 GE Bottom Inner Guard
318WB32X29539 GE Oven Gasket Assembly
366WB1X536 GE Oven Screw
420GEN WB34K0016
700WB02K10380 GE Insulation Clip
703BRACKET OVEN
707WB02K10267 GE Wire Clip
725WB34X25587 GE Motor Cover
780WB38K10022 GE Oven Diffuser Vent
788WB34X21575 GE Oven Back Cover
1000WB34X24779 GE Front Frame Trim
1151WB18X38054 GE Main Harness
1330WB10X28563 GE Oven Receiver Hinge
1331WR01X10065 GE Screw
