PGB935YP4FS CONTROL PANEL & COOKTOP

PGB935YP4FS CONTROL PANEL & COOKTOP

Written by

in

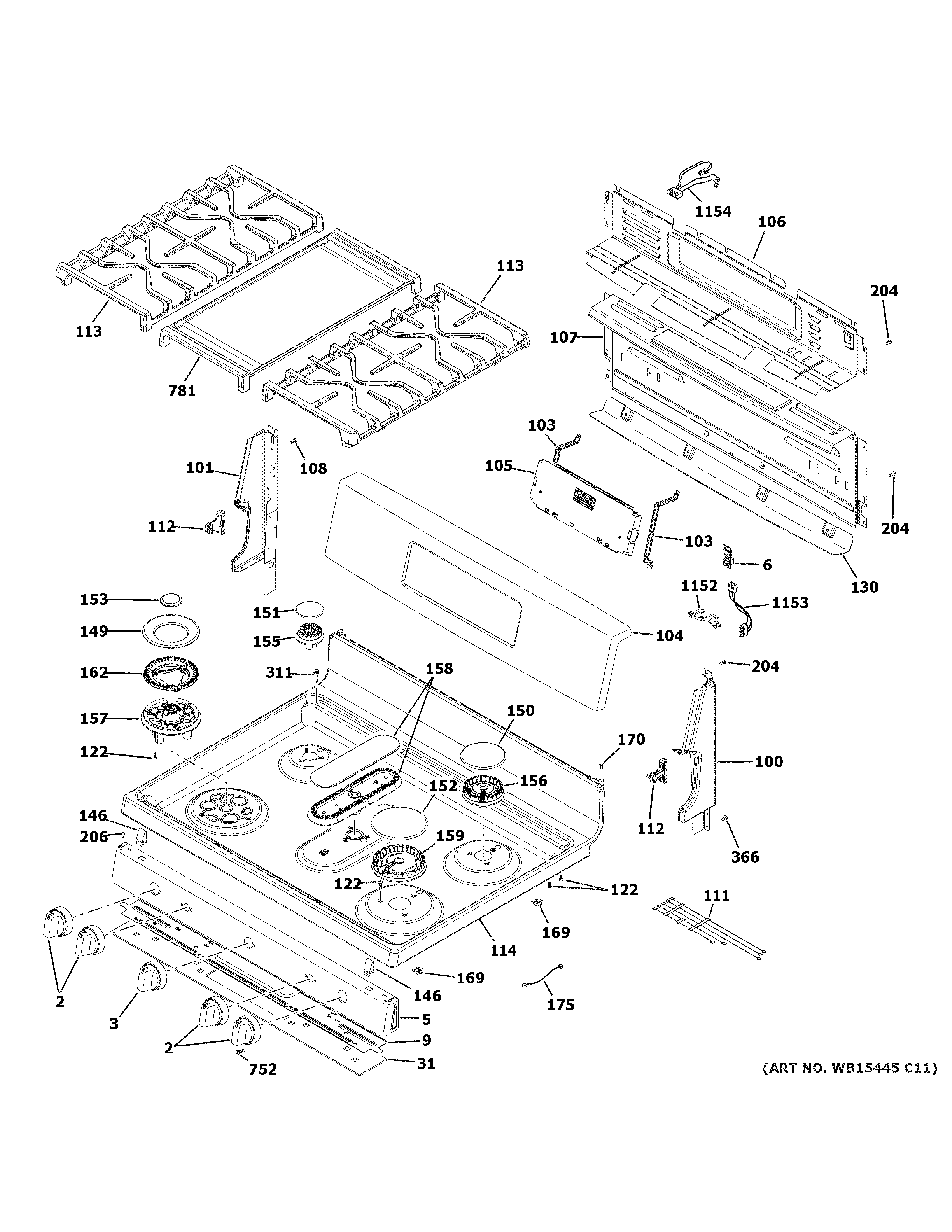

PGB935YP4FS CONTROL PANEL & COOKTOP

Products

PositionProduct
2WB03X24988 RANGE KNOB – STAINLESS STEEL
3WB03X24990 GE Oven Knob Assembly
5STAINLESS STEEL MANIFOLD PANEL
6GEA3 WIFI/BLE BOARD W/INSTRUCT
9WB34X20680 GE Support Manifold
31WB35X24985 GE Burner Box Insulation
100WB07X29143 GE Oven End Support
101WB07X29144 GE Oven End Support
103BRACKET CONTROL
104WB36X44710 GE Stainless Steel Backguard
105WB27X38685 GE Control and Touch Glass
106WB34X31704 GE Black Upper Back Cover
107WB34X24746 GE Oven Back Cover Lower
108WB1X5364 GE Oven Mounting Screw
111WB18X38052 GE High Voltage Electrode & Harness
112WB14K10003 GE Range Top Hinge
113GRATE ASM
114WB62X38001 GE Dark Dorian Gray Rantop & Br
122WB01X24735 GE Oven CKT Screw
130WB34X31700 GE Backguard for Dark Dorian Gray Oven
146WB02X26569 GE Range Top Clip
149WB29X28253 GE Oven Surface Burner Cap
150WB29K10023 GE Oven Burner Cap Assembly
151WB16X28654 GE Oven Burner Cap Cover
152CAP BURNER ASM (15K)
153WB16X28252 GE Oven Burner Cap Inner
155WB16X24721 GE Oven Range Small Cooktop Burner V2
156WB16X24724 GE Oven Medium Burner
157WB16X28656 GE Oven Surface Burner Base
158WB16K10076 GE Oven Oval Burner Assembly
159WB16X24722 GE Oven Gas Range XL Surface Burner
162HEAD BURNER
169WB02X24976 GE Oven Igniter Clip V2
170SCREW MTG END CAP
175WB18X24748 GE Oven Ground Harness
204WB1K5062 GE Oven Screw
206WB01K10091 GE Oven Screw
311BUMPER
366WB1X536 GE Oven Screw
752WB01X26995 GE Oven Screw 8-18 AB X 5/16
781WB31X24998 GE Oven Reversible Grille
1152HARNESS BACKGUARD
1153HARNESS INTERFACE
1154HARNESS CONTROL
