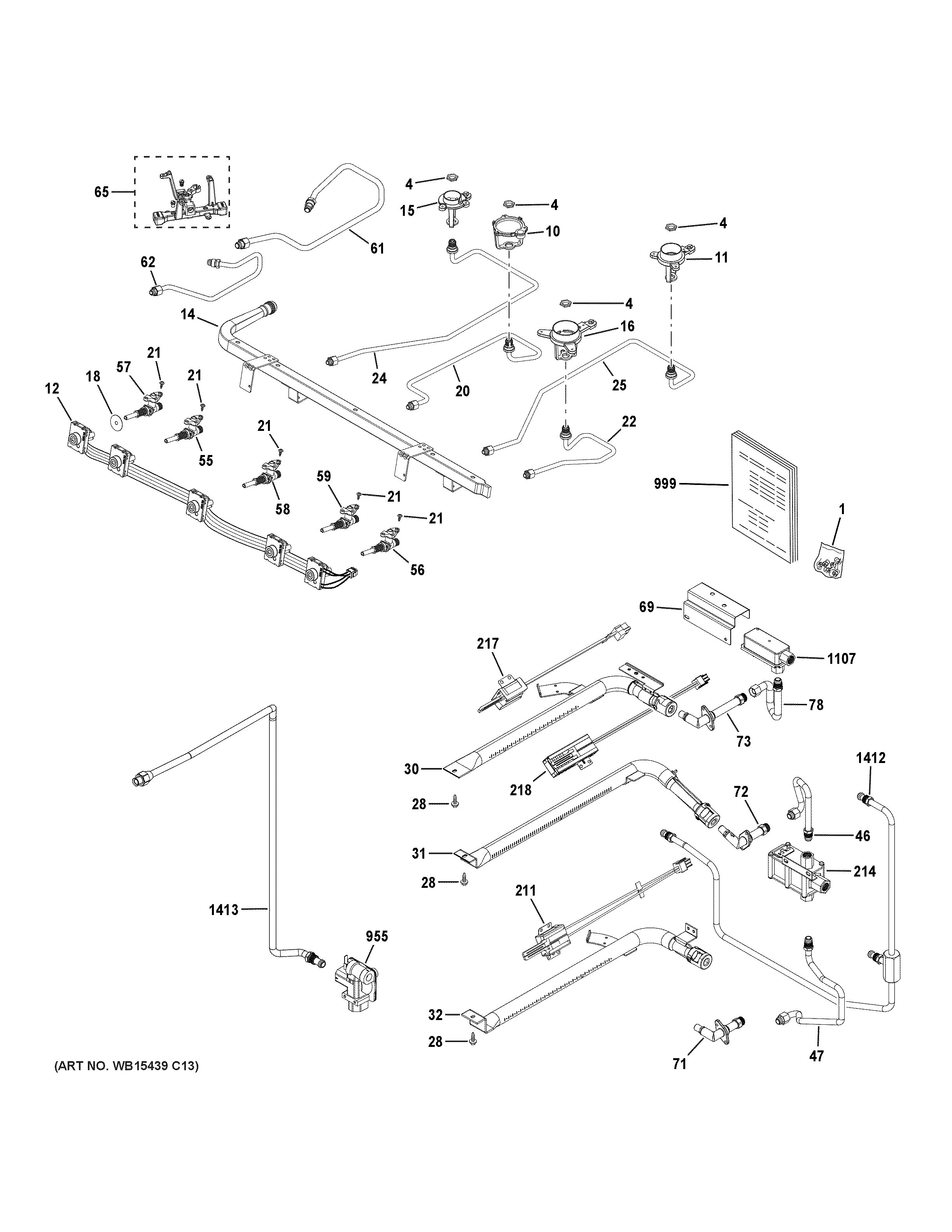

PGB965YP1FS GAS & BURNER PARTS

PGB965YP1FS GAS & BURNER PARTS

Written by

in

PGB965YP1FS GAS & BURNER PARTS

Products

PositionProduct
1WB28X29254 GE Range Natural Gas High Altitude Kit
1WB28X29255 GE Range LP High Altitude Kit
1WB28X41066 GE LP Conversion Kit Assembly
4WB01K10037 GE Oven Economic Nut
10WB02K10360 GE Oven Circuit Bracket Small
11WB02X24727 GE Oven Right Front Burner Jet with Electrode
12WB18X38063 GE Switches Harness
14WB28X25074 GE Stove Manifold Pipe
15WB02X24728 GE Range Small Injector
16WB02X24725 GE Oven Inlet XLV2
18WB2K24 GE Oven Valve Cover
20WB28X24762 GE Oven Surface Burner Orifice Holder
21WB01K10067 GE Oven Screw 1/4" HD 20
22WB28X24858 GE Oven Surface Burner Orifice Holder
24WB28X24763 GE Oven Right Rear Orifice Holder
25WB28X24850 GE Oven Orifice Holder
28WB1X1293 GE Oven Screw
30WB16X28249 GE Gas Range Bake Burner
31WB16X28251 GE Range Broil Burner
32WB16X28670 GE Gas Range Bake Burner
46WB28X28164 GE Tube Safety Valve
47WB28X28152 GE Oven Lower Bake Supply Tube
55WB21X25979 GE Oven Burner Valve 270
56VALVE BURNER 270
57WB21X28821 GE Range Burner Valve 3,170
58WB21X20471 GE Oven Burner Valve
59VALVE BURNER 270
61TUBE DUAL VALVE
62WB28X30713 GE Dual Valve Tube
65WB16X28867 GE Stove Burner Injector Assembly
69WB02K10325 GE Valve Support Single
71WB28X20451 GE Oven 90-Degree Elbow Assembly
72WB28X28696 GE Elbow 90 Assembly
73WB28X28695 GE Oven 90-Degree Elbow Assembly
78WB28X28163 GE Upper Bake Supply Tube
211WB13X25633 GE Oven Igniter Glowbar
214SAFETY VALVE DUAL
217WB28X28781 GE Oven Igniter Glow Bar
218WB28X28780 GE Oven Glowbar Igniter
955WB19K10077 GE Oven Pressure Regulator
999PM MINI MANUAL AND WIRING
999PM INSTALL INSTRUCTIONS
999PM INSTALL INSTRUCTIONS
999PM OWNERS MANUAL
999PM WI FI INSTRUCTIONS
999PM QUICK OWNERS MANUAL
1107WB21X28836 GE Safety Valve Assembly Single
1412WB28X28159 GE Oven Supply Tube
1413WB28X31693 GE Burner Tube Supply Box
