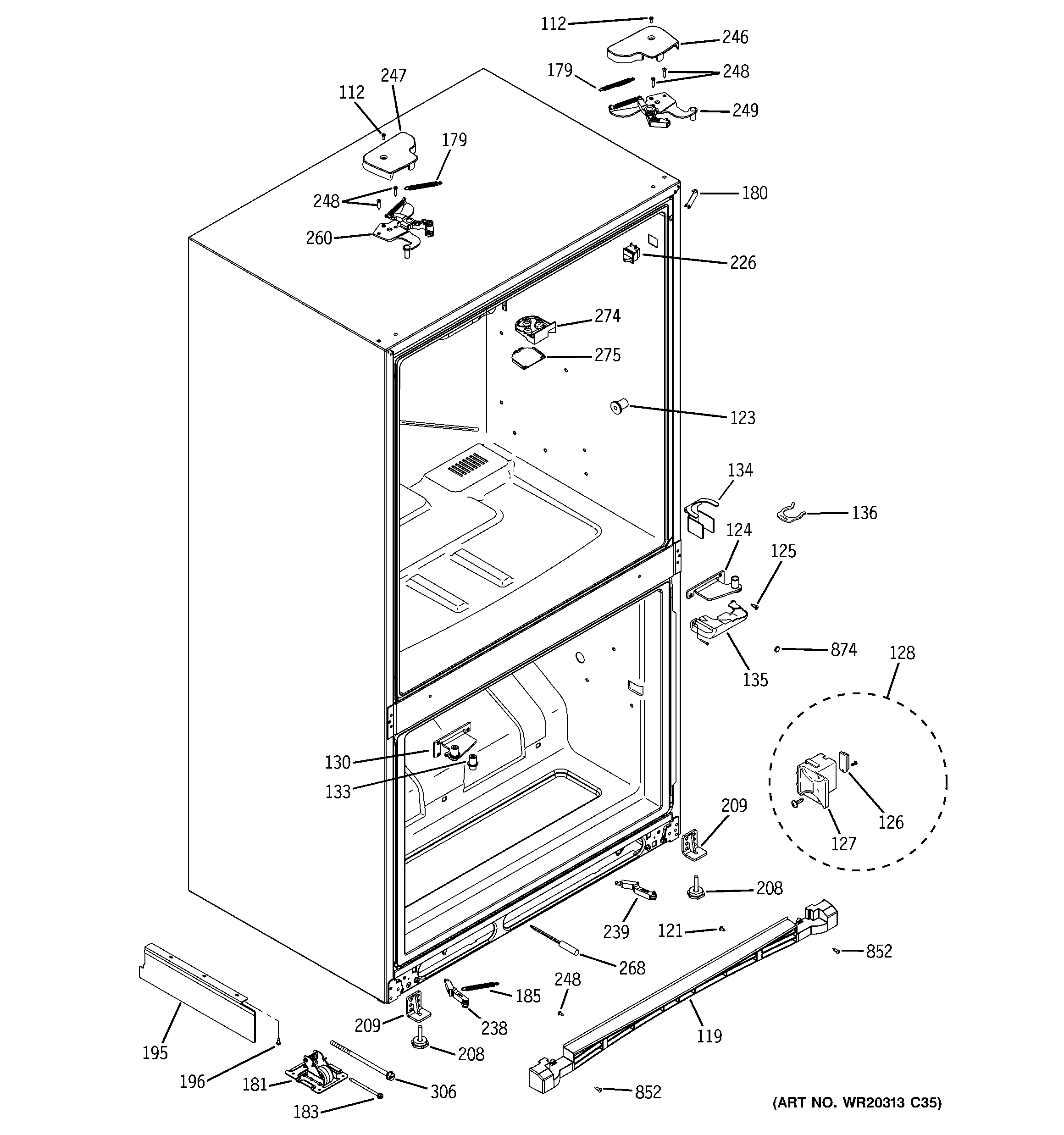

PGCS1PJYASS CASE PARTS

PGCS1PJYASS CASE PARTS

Written by

in

PGCS1PJYASS CASE PARTS

Products

PositionProduct
112WR01X10379 GE Refrigerator Hinge Cover Screw
119GRILLE BASE COVER
121WR01X10629 GE Refrigerator Screw 8-18 AB Hex Washer 1/2"
123WR02X12187 GE Refrigerator Support Shelf
124GEN WR13X10432
125WR01X10690 GE Refrigerator Screw 12-24 TT HXT20 .90 S
126WR02X12711 GE Refrigerator Humidity Sensor
127WR17X12443 GE Humidity Sensor Housing
128WR55X10748 GE Refrigerator Humidity Sensor Assembly
130GEN WR13X10433
133WR01X10793 GE Refrigerator Hinge Adjuster Pin
134SUPPORT WATER LINE
135GEN WR02X12590
136CLIP LOCKING
179WR01X10827 GE Refrigerator Closure Spring
180CAP CORNER OC
181WR02X12274 GE Refrigerator Mobility Front Assembly
183WR01X10210 GE Refrigerator Mobility Screw
185WR1X2027 GE Refrigerator Spring Closure
195WR17X12382 GE Air Separator Hinge Side
196WR01X10588 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
208WR01X10686 GE Refrigerator Leveling Screw
209WR02X12378 GE Leg Assembly Bracket
226WR23X37285 GE Light Switch
238WR11X10017 GE Refrigerator Lever Arm Closure Assembly
239WR11X10016 GE Refrigerator Lever Arm Closure Assembly
246COVER HINGE TOP RH
247GEN WR02X12706
248WR01X10792 GE Refrigerator Screw 12-24 TT HX 7/8 S
249HINGE CLOSURE ASM
260GEN WR13X10565
268WR55X10025 GE Refrigerator Temperature Sensor
274WR02X12685 GE Refrigerator Top Mullion Striker
275WR02X12684 GE Refrigerator Top Cover Striker
306WR02X12271 GE Refrigerator Mobility Screw
852WR01X10858 GE Refrigerator Screw 8-18 AB PNP 5/8 S
874GEN WR01X10855
