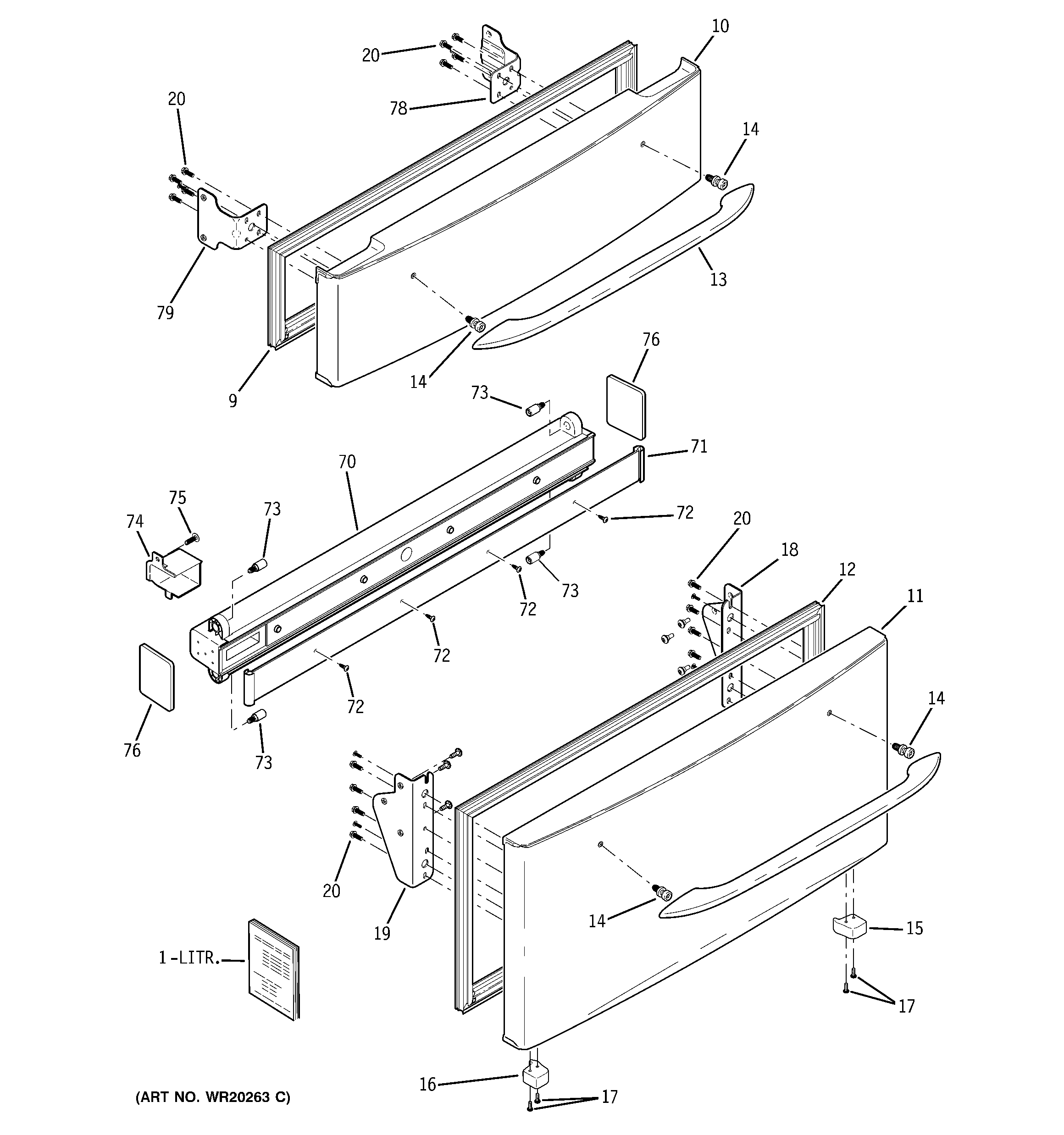

PGCS1PJYASS FREEZER DOORS

PGCS1PJYASS FREEZER DOORS

Written by

in

PGCS1PJYASS FREEZER DOORS

Products

PositionProduct
1GEN 49-60581
1GEN 31-51725
9WR14X10338 GE Refrigerator Gasket
10DOOR FOAM ASM UPR FZ BOW
11GEN WR78X12127
12WR14X10336 GE Refrigerator Gasket
13GEN WR12X10858
14FASTENER HANDLE SS
15GEN WR02X12693
16GEN WR02X12694
17WR01X10611 GE Screw
18WR02X12695 GE Door Connector Lower Right
19GEN WR02X12696
20WR01X10682 GE Refrigerator Screw 1/4-10 PL HXW 3/4 S
70WR17X12440 GE Refrigerator Mullion Foamed Assembly
71WR17X12442 GE Face Mullion Assembly
72WR01X10788 GE White Screw
73WR01X10787 GE Bolt Shoulder
74GEN WR17X12441
75WR01X10789 GE Refrigerator Stainless Steel Screw 8-18 RNDW 5/8
76WR14X10248 GE Mullion Side Foam Pad
78WR02X12709 GE Door Upper Right Connector
79WR02X12710 GE Door Upper LH Connector
