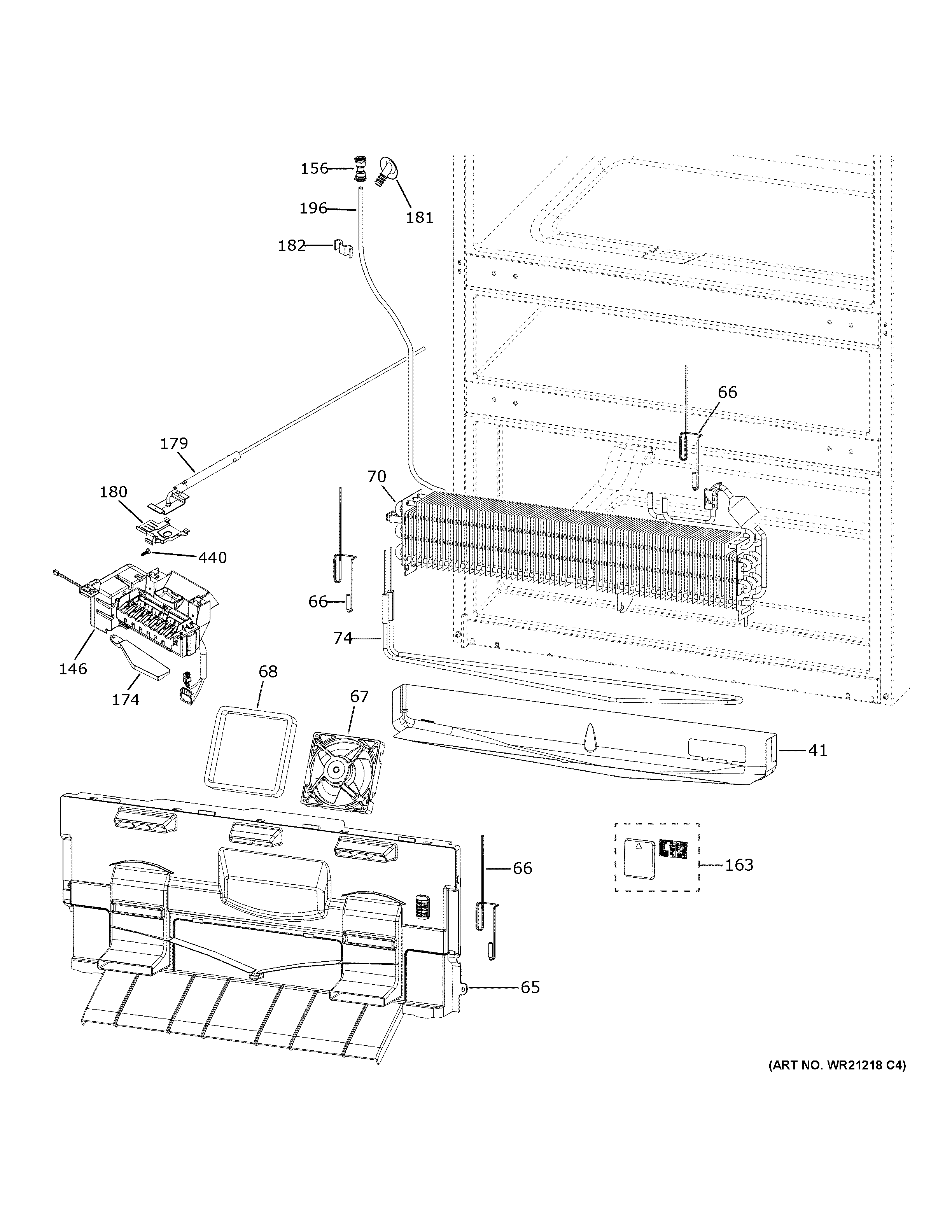

PGD29BYTCFS FREEZER SECTION

PGD29BYTCFS FREEZER SECTION

Written by

in

PGD29BYTCFS FREEZER SECTION

Products

PositionProduct
41WR17X31777 GE Refrigerator Freezer Drain Trough
65WR14X32098 GE Refrigerator Freezer Evaporator Cover
66DEFROST THERMISTOR
67WR60X32088 GE Refrigerator Freezer Evaporator Fan Assembly
68WR01X27755 GE Refrigerator Evaporator Fan Bracket
70WR87X32081 GE Refrigerator Freezer Evaporator with Foam B
74FREEZER DEFROST HEATER
146WR29X44279 GE Icemaker Small Cube
156WR02X13738 GE Refrigerator Coupler Straight 1/4
163WR55X32501 GE Refrigerator Freezer Reed Switch White CO
174WR29X36234 GE Refrigerator Feeler Arm
179WR29X44280 GE Heater Fill Tube Assembly
180FILL TUBE COVER
181FILL TUBE GROMMET
182WATER LINE CLIP
1961/4 WATER LINE AND DOOR GROMME
440WR01X28345 GE Screw
