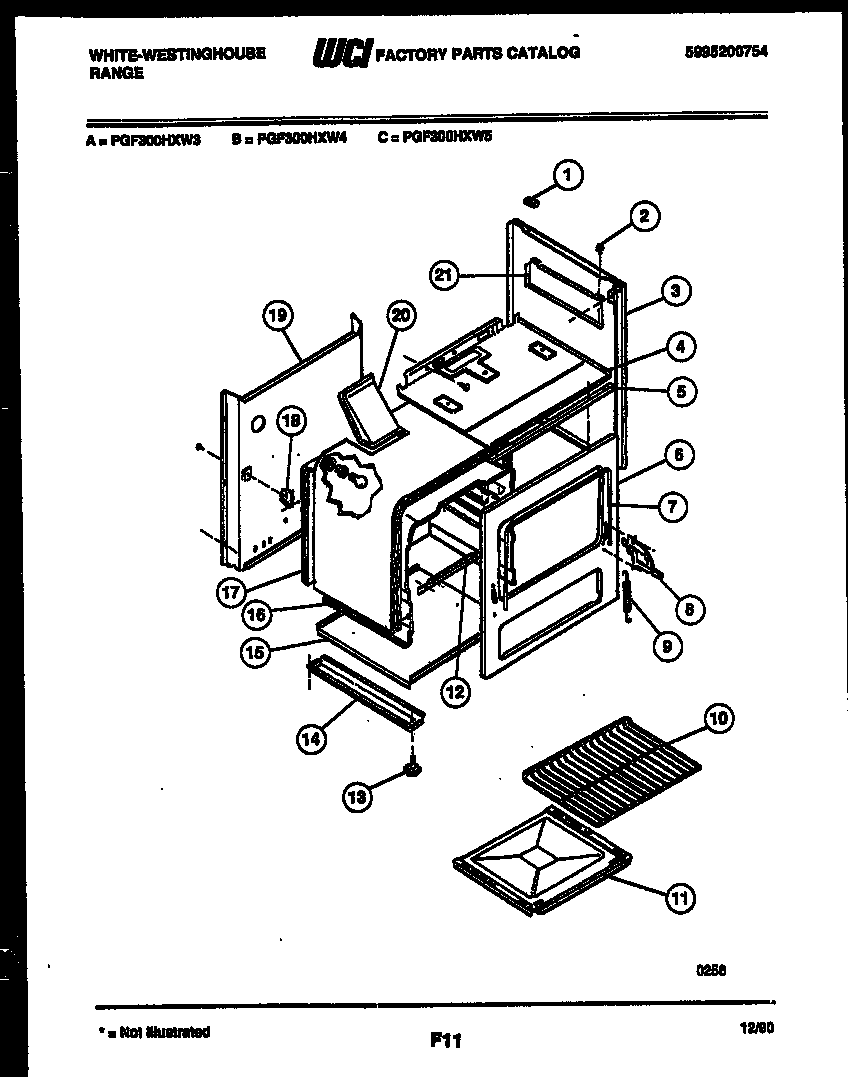

PGF300HXW5 05 – BODY PARTS

PGF300HXW5 05 – BODY PARTS

Written by

in

PGF300HXW5 05 – BODY PARTS

Products

PositionProduct
*25536GROMMET-MAINTOP
*25536ANTI-TIP KIT
*25535CLIP,BODYSIDE
2GROMMET
3BODYSIDE PANEL-WHITE (2)
4WCI 3017174
5SUPPORT CONTROL PNL
6WCI 3205578
7DOOR SEAL
8318348801 Frigidaire Oven Left Side Door Hinge
8HINGE ASSY-RH
9SPRING-OVEN DR (2)
10OVEN RACK (2)
11WCI 3018282
12SUPPORT-OVEN BOTTOM
14Rail,base ,RH
14RAIL-BASE, LH
15WCI 3011645
16WCI 3018995
16OVEN LINER-SIDE LH
16OVEN LINER-SIDE RH
16WCI 3018347
17WCI 3017171
17WCI 3017172
18SUPPORT-REAR OVN (2)
19WCI 5303013340
20WCI 3017173
21SHIELD-BURNER BOX RH
21SHIELD-BURNER BOX LH
