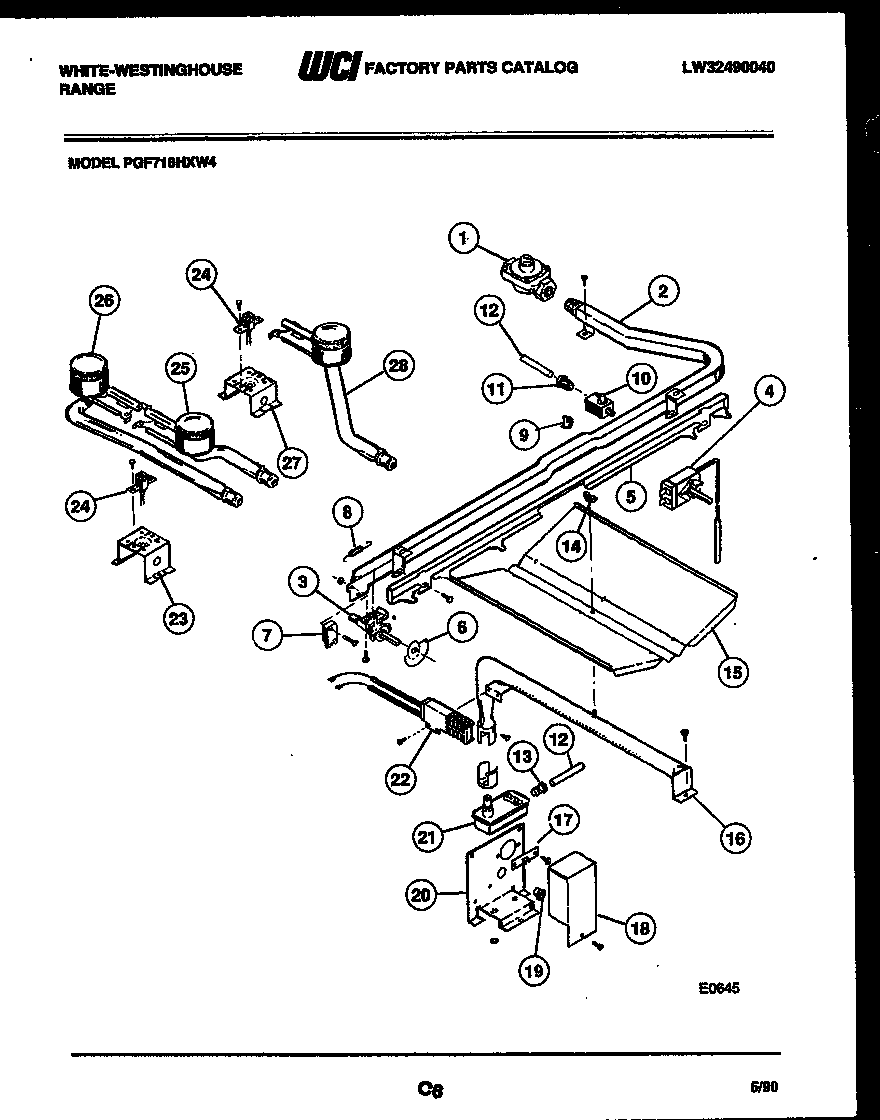

PGF716HXW4 04 – BURNER, MANIFOLD AND GAS CONTROL

PGF716HXW4 04 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

PGF716HXW4 04 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
15308007974 Frigidaire Pressure Regulator
2MANIFOLD PIPE
3WCI 5303131057
3AVALVE-TOP BURNER (2)
4WCI 5308013926
5WCI 5303018341
6CAM-VALVE
6AWCI 5303131859
7WCI 5303131094
8SPRING – SLIDE BAR
9CLIP CAPILLARY
10WCI 5303131099
11NUT-LOXIT (3/8)
12TUBE-OVEN FEED
13WCI 538007983
14NUT – WING
15BAFFLE-OVEN BURNER
16WCI 5303202752
17TERMINAL BLOCK
18COVER – OVEN SAFETY VALVE
19WCI 08008051
20SUPPORT-OVEN SAFETY VALVE
21WCI 5308009419
225303935066 Frigidaire Oven Flat Igniter 17" Leads
23WCI 323964
24IGNITER-TOP BURNER 48“
25BURNER-TOP FRONT
26Burner,top ,rear
27SUPPORT – GRID BURNER
28WCI 5303131882
