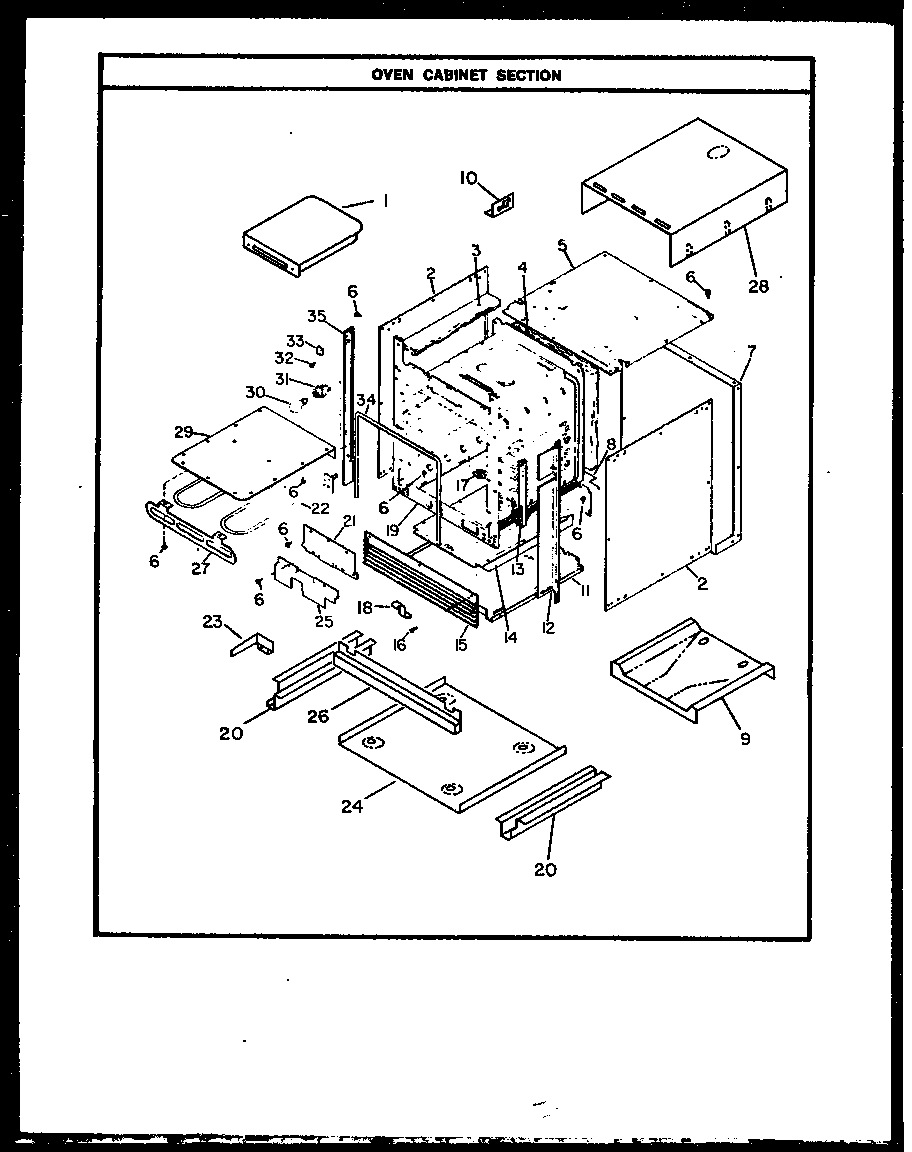

PGO-151 03 – OVEN CABINET SECTION
Written by
in
PGO-151 03 – OVEN CABINET SECTION
Products
Position
Product
NI
MAY 42715
1
MAY 40572
2
MAY 40330
3
MAY Y0041116
3
MAY 0041098
4
MAY 41123
5
MAY Y0040284
6
MAY Y41808
7
MAY Y0040353
8
MAY 0052468
9
MAY 0041378
10
MAY 52487
11
MAY Y0052515
12
MAY 0040826
12
MAY Y0040827
13
MAY Y0041911
14
MAY 0052516
15
MAY Y0042571
16
MAY Y0041794
17
MAY 41874
18
MAY Y0040880
19
SEE NOTE GROUND WIRE, GREEN
20
MAY Y0040283
21
MAY Y40853
22
MAY Y0042165
23
MAY 0052469
24
MAY 52467
25
MAY 52454
26
MAY 0040388
27
MAY 0040862
28
MAY Y0095751
29
MAY 0052455
30
MAY Y0042175
31
MAY 73028
32
MAY 0041839
33
MAY Y0041995
34
MAY 0041876
34
MAY 0042398
35
MAY Y0042578
35
MAY Y0042577
←
