PGP7036BM1TS CONTROL PANEL & COOKTOP

PGP7036BM1TS CONTROL PANEL & COOKTOP

Written by

in

PGP7036BM1TS CONTROL PANEL & COOKTOP

Products

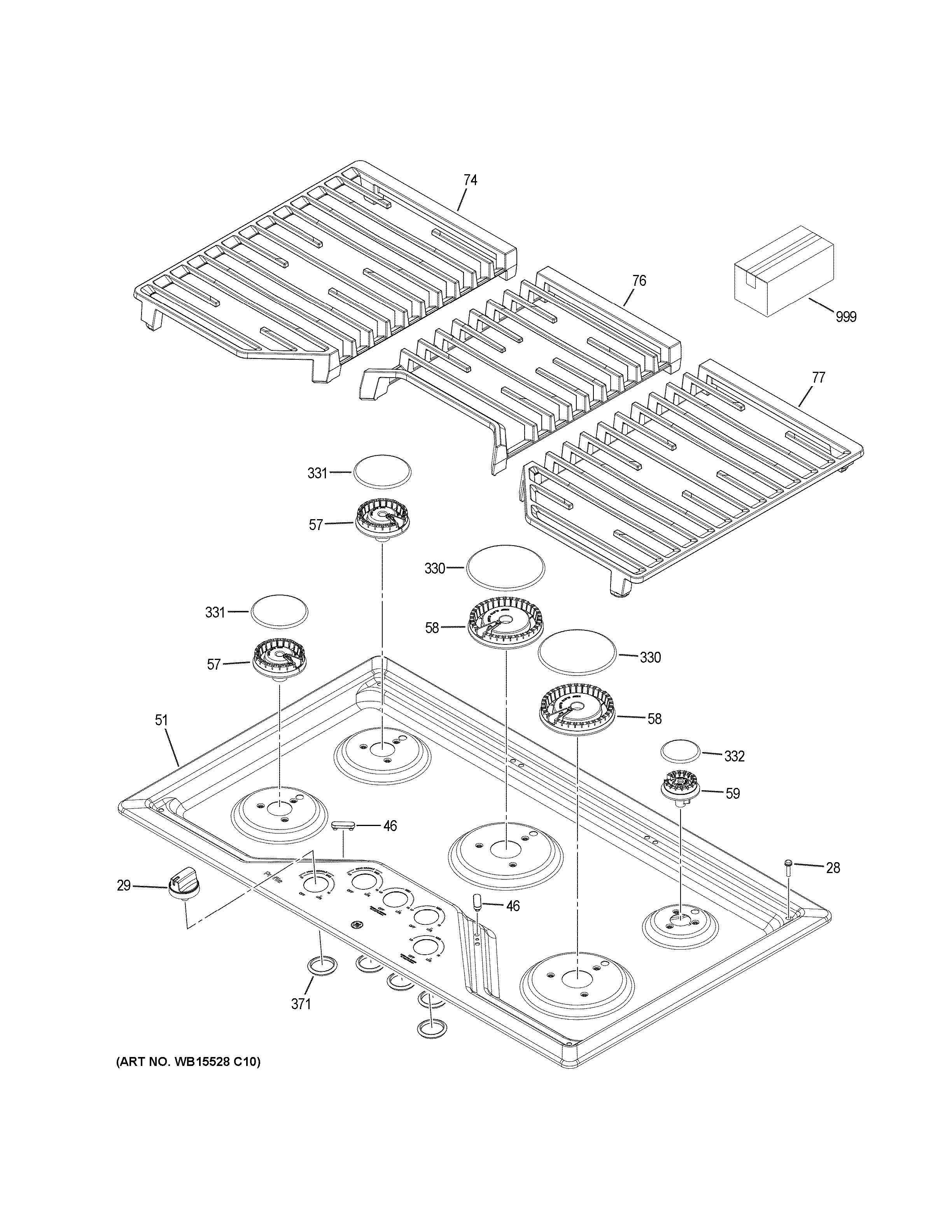

PositionProduct
28BUMPER
29WB03X31786 GE Range Black Stainless Control
46WB02X30761 GE Oven Bridge Bumper
51BLACK STAINLESS 36" MAINTOP
57WB16X24724 GE Oven Medium Burner
58WB16X24722 GE Oven Gas Range XL Surface Burner
59WB16X24721 GE Oven Range Small Cooktop Burner V2
74WB31X29309 GE Oven Left Hand Grate
76WB31X29310 GE Oven Center Grate
77WB31X29308 GE Oven Right Hand Grate
330CAP BURNER ASM (15K)
331WB29K10023 GE Oven Burner Cap Assembly
332WB16X28654 GE Oven Burner Cap Cover
371WB04T10042 GE Oven Black Control Seal
999PM INSTRUCTIONS INSTALL
999PM GUIDE MINI
999PM INSTALL INSTRUCTIONS
999PM MANUAL MINI & WD ASM
