PGP9036SL2SS CONTROL PANEL & COOKTOP

PGP9036SL2SS CONTROL PANEL & COOKTOP

Written by

in

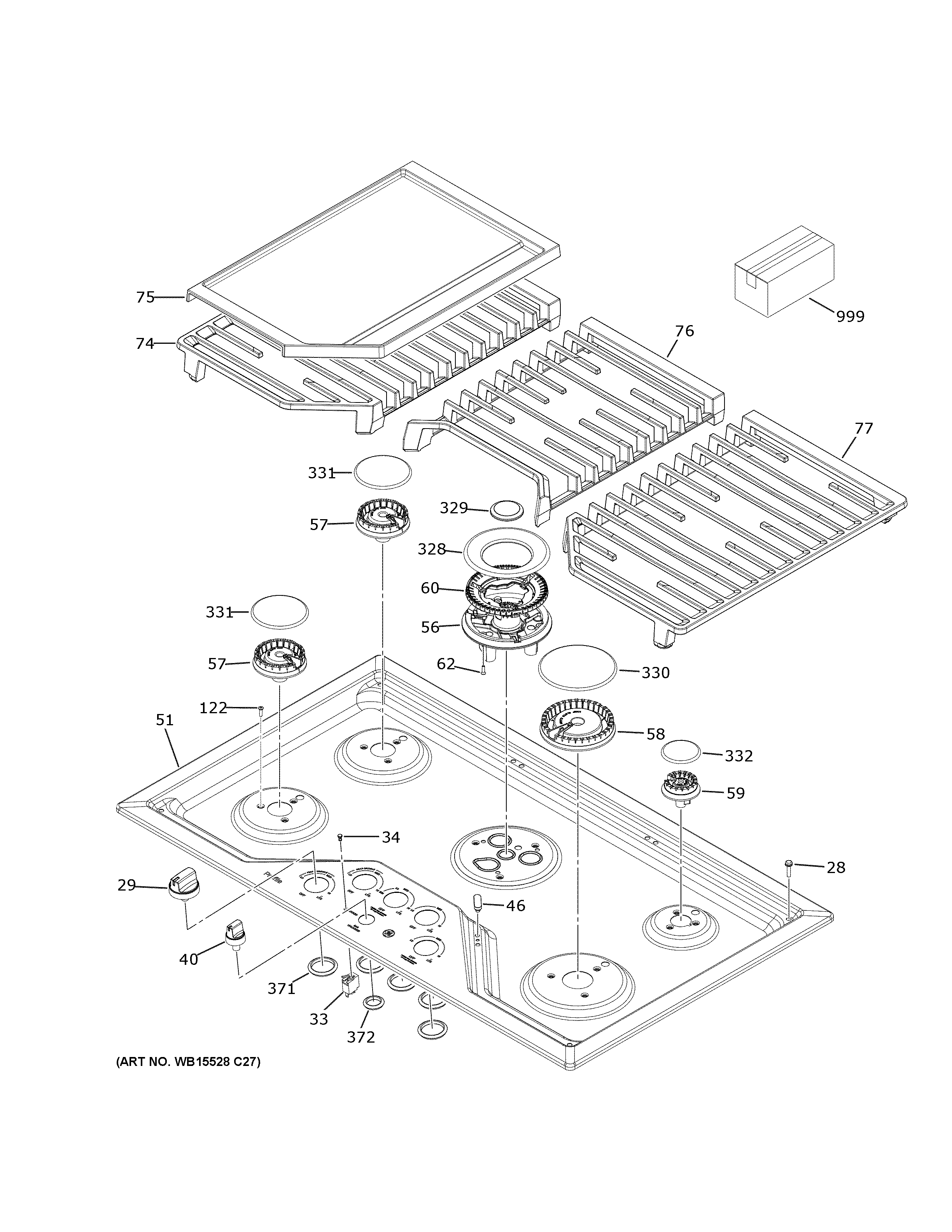

PGP9036SL2SS CONTROL PANEL & COOKTOP

Products

PositionProduct
28BUMPER
29WB03X29354 GE Oven Stainless Steel Knob Assembly
33WB25K10010 GE Oven Light Indicator Pilot
34WB25X29379 GE Oven Lens
40WB03X29375 GE Oven Stainless Steel Selector Knob
46WB02X30761 GE Oven Bridge Bumper
51WB62X29377 GE Maintop Assembly 36" Stainless Steel
56WB16X28656 GE Oven Surface Burner Base
57WB16X24724 GE Oven Medium Burner
58WB16X24722 GE Oven Gas Range XL Surface Burner
59WB16X24721 GE Oven Range Small Cooktop Burner V2
60HEAD BURNER
62SCREW 6-32 OVT15 1/2 S
74WB31X29309 GE Oven Left Hand Grate
75WB31X29396 GE Oven Optional 36" Cast Iron GRIDD
76WB31X29310 GE Oven Center Grate
77WB31X29308 GE Oven Right Hand Grate
122WB01X30054 GE Screw 6-32 OVT15 1/2"
328WB29X28253 GE Oven Surface Burner Cap
329WB16X28252 GE Oven Burner Cap Inner
330CAP BURNER ASM (15K)
331WB29K10023 GE Oven Burner Cap Assembly
332WB16X28654 GE Oven Burner Cap Cover
371WB04T10042 GE Oven Black Control Seal
372CONTROL SEAL BK
999PM MINI MANUAL AND WIRING
999PM INSTALL INSTRUCTIONS
999PM OWNERS MANUAL
999PM INSTALL INSTRUCTIONS
