PGP953DET1WW GAS & BURNER PARTS

PGP953DET1WW GAS & BURNER PARTS

Written by

in

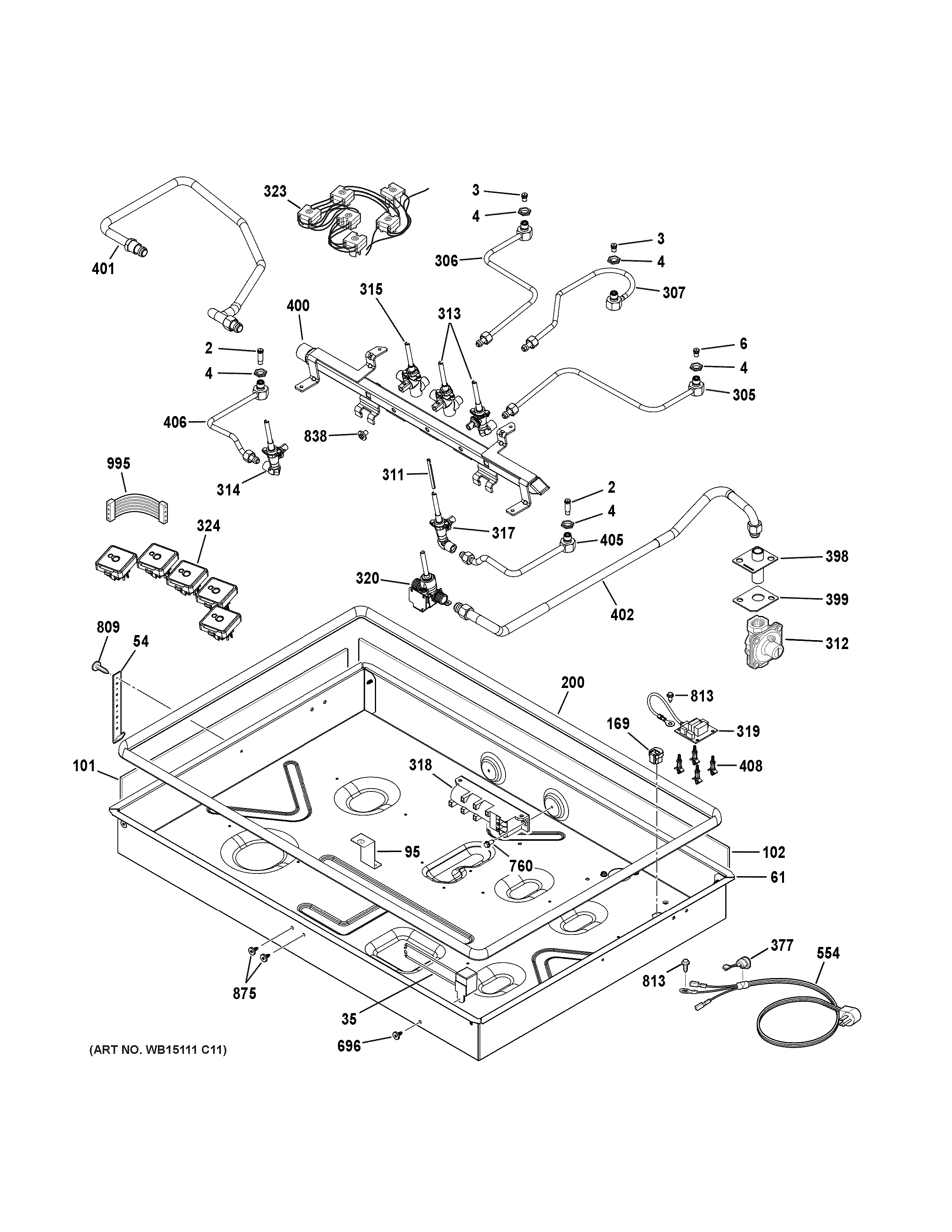

PGP953DET1WW GAS & BURNER PARTS

Products

PositionProduct
2WB28T10246 GE Oven LP Orifice Spud 9.1K
3WB28T10245 GE Oven LP Orifice Spud 5K
4WB01K10037 GE Oven Economic Nut
6WB28T10274 GE Oven LP Orifice Spud 17K
35WB08T10039 GE Oven Buzzer (120V)
54WB2K5328 GE Oven Hold Down Bracket
61WB64T10070 GE Bottom Burner Box
95WB02T10567 GE Bracket Rail
101GEN WB35T10249
102GEN WB35T10250
169GEN WB16K10045
200TAPE FOAM
305WB28T10268 GE Oven Burner Tube Assembly
306WB28T10269 GE Oven Burner Tube Assembly
307WB28T10277 GE Oven Burner Tube Assembly
311WB02T10569 GE Oven Plug Valve Stem
312WB19T10089 GE Oven Pressure Regulator
313WB19T10084 GE Oven Surface Burner Valve
314WB19T10085 GE Oven Surface Burner Valve
315WB19T10093 GE Oven Gas Valve
317VALVE GAS
318SPARK MODULE KIT
319WB27T11382 GE Oven Control Board LED
320WB19T10039 GE Oven Valve Lockout
323GEN WB18T10512
324WB17T10026 GE Oven LED Board Assembly
377GEN WB02K5275
398WB04T10082 GE Oven Cooktop Inlet Supply
399WB04T10084 GE Oven Manifold Seal Cooktop
400WB28T10249 GE Range Manifold Bracket Assembly
401WB28T10251 GE Oven Tube Manifold
402WB28T10267 GE Oven Supply Tube
405WB28X27817 GE Burner Tube Right Front
406WB28X29273 GE Burner Tube Assembly
408WB02T10207 GE PCB Standoff
554WB08T10015 GE Range Cord
696WB01T10110 GE Oven Screw 8-18 x .450 AB FLT20 S
760WB1X536 GE Oven Screw
809WB1X1137 GE Oven Screw
813WB1X1261 GE Oven Screw
838GEN WB01X1121
875WH2X930 GE Screw
995WB18T10511 GE Oven Burner Wire Harness
995WB18T10510 GE Oven Burner Wire Harness
