PGR4100BDW 03 – DOOR/DRAWER

PGR4100BDW 03 – DOOR/DRAWER

Written by

in

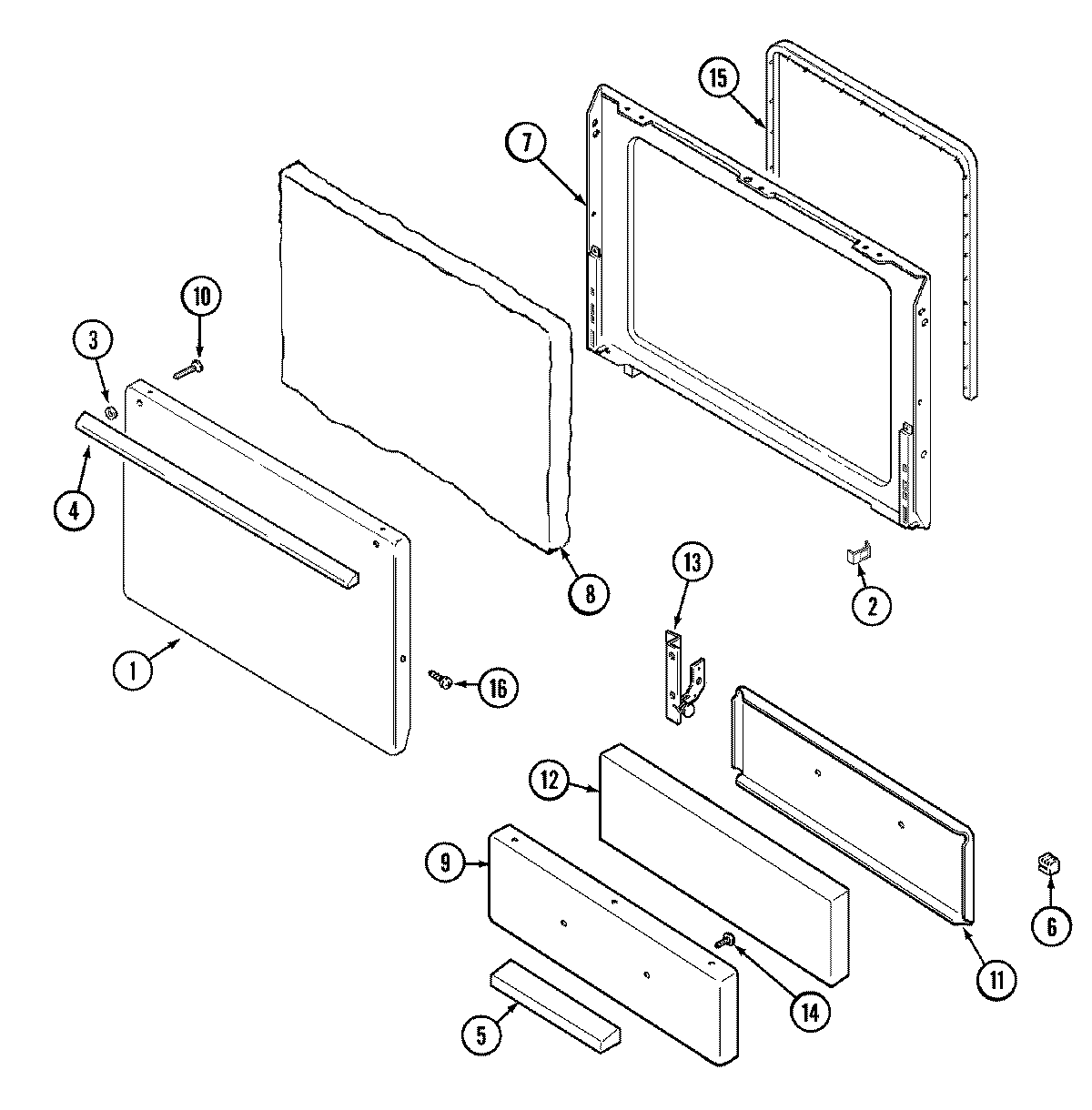

PGR4100BDW 03 – DOOR/DRAWER

Products

PositionProduct
1PANEL, DOOR (WHT)
2CLIP, DOOR
3WP74005058 Whirlpool Spacer Assembly
5WP2411F013-71 Whirlpool Door Handle
6MAY 8016P015-60
7NUT, SNAP (ROUND-WHT)
7MAY 74003240
8MAY 4804F050-60
9MAY 74001729
10WP3387230 Whirlpool Screw
11MAY 74002397
11MAY 74007553
12MAY 74001814
13MAY 74002398
1474002481 Whirlpool Screw
15WP7212P043-60 Whirlpool Oven Door Seal Gasket
19SCREW
