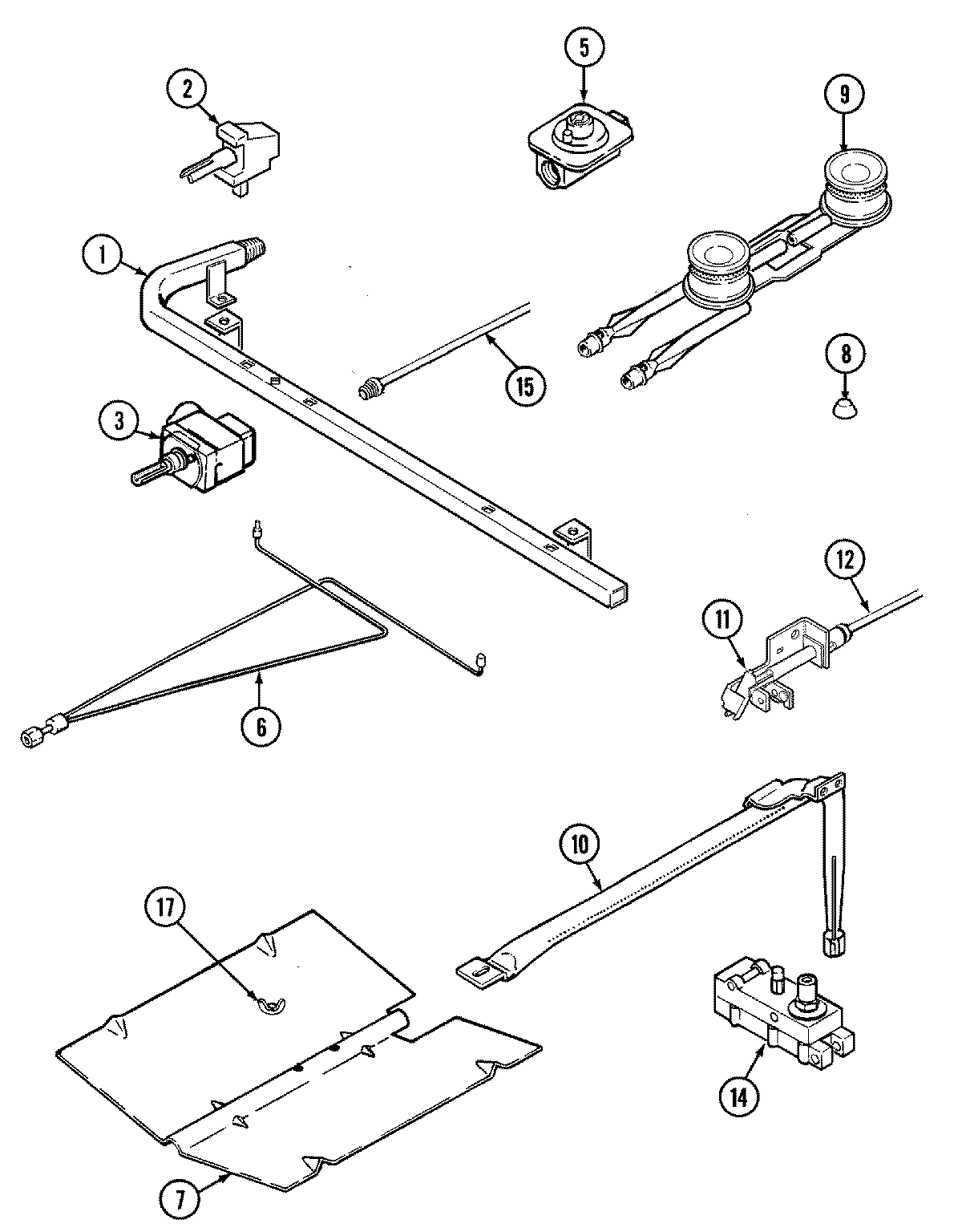

PGR4100BDW 04 – GAS CONTROLS

Products

Position	Product
1	MAY 74002424
2	MAY 74002383
2	WP8273096 Whirlpool Screw
3	MAY 74006182
3	MAY 7101P010-60
4	NUT, WING
5	MAY 7510P002-60
6	MAY 74002426
6	MAY 7103P128-60
7	MAY 74002393
8	MAY 74002435
9	SCREW (8BX3/8-NI)
9	MAY 74003332
10	SCREW
10	MAY 74002434
11	SCREW (10-24X5/16-NI)
11	MAY 74006183
12	MAY 74006184
13	MAY 74006185
14	W11693756 Whirlpool Screw Assembly
14	MAY 74002428
16	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
