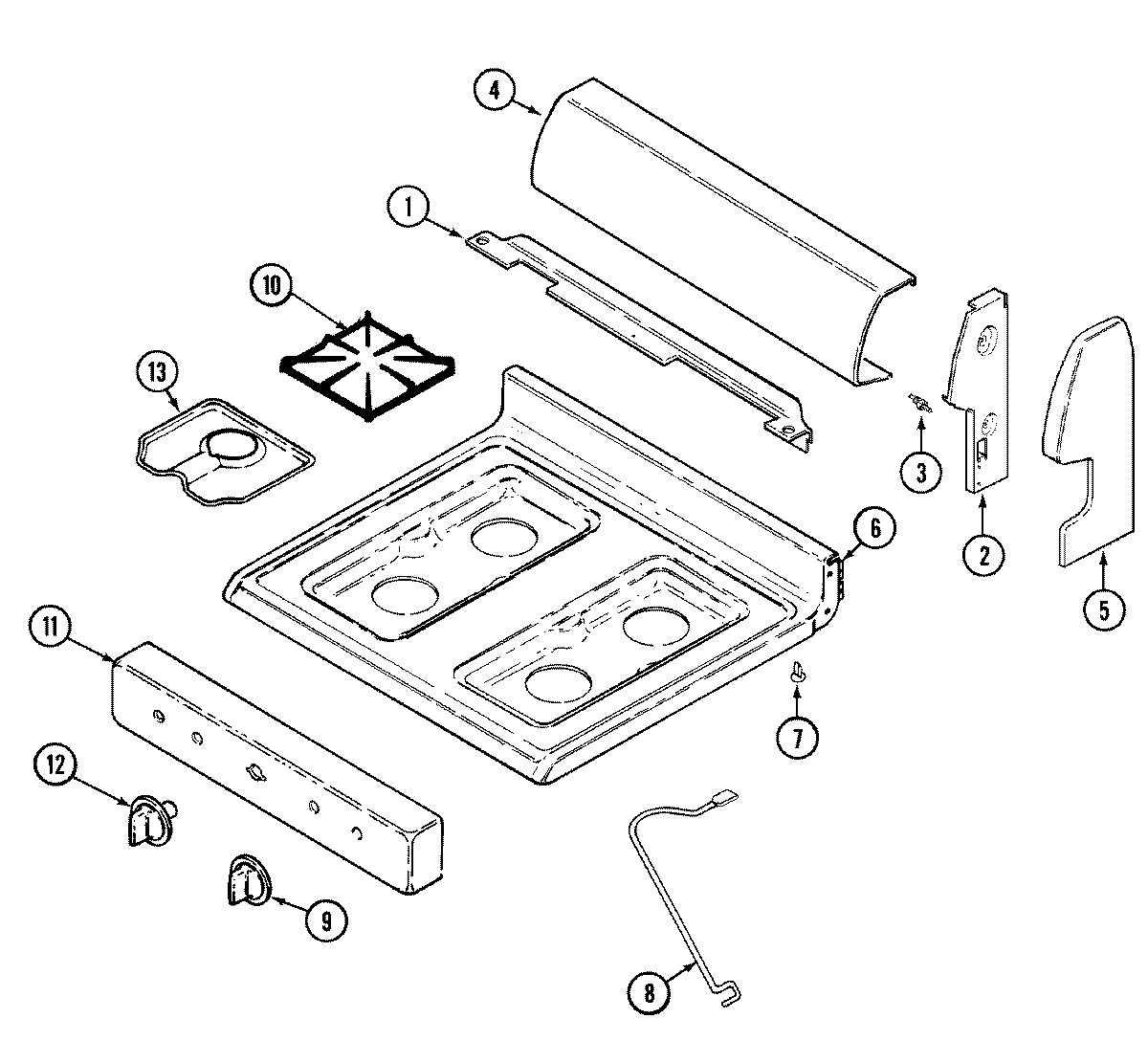

PGR4102CDT 02 – CONTROL PANEL/TOP ASSEMBLY

PGR4102CDT 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

PGR4102CDT 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74002409
1MAY 74005319
2W10828565 Whirlpool Screw
2MAY 74002403
2MAY 74002402
3MAY 74002404
4SCREW
4MAY 74006414
5MAY 74002432
5MAY 74002407
5MAY 74002406
5SCREW (8ABX1/2“-BLK)
6MAY 74005049
7MAY 8016P015-60
8MAY 74004084
9WP74002353 Whirlpool Control Knob
10WP2003X030-00 Whirlpool Burner Grate
11MAY 74006279
12WP74002352 Whirlpool Thermostat Knob
13MAY 5401A433-60
14MAY 74002746
14MAY 16008701
14MAY 74005911
15MAY 16010161
