PGR4102CDT 04 – GAS CONTROLS

PGR4102CDT 04 – GAS CONTROLS

Written by

in

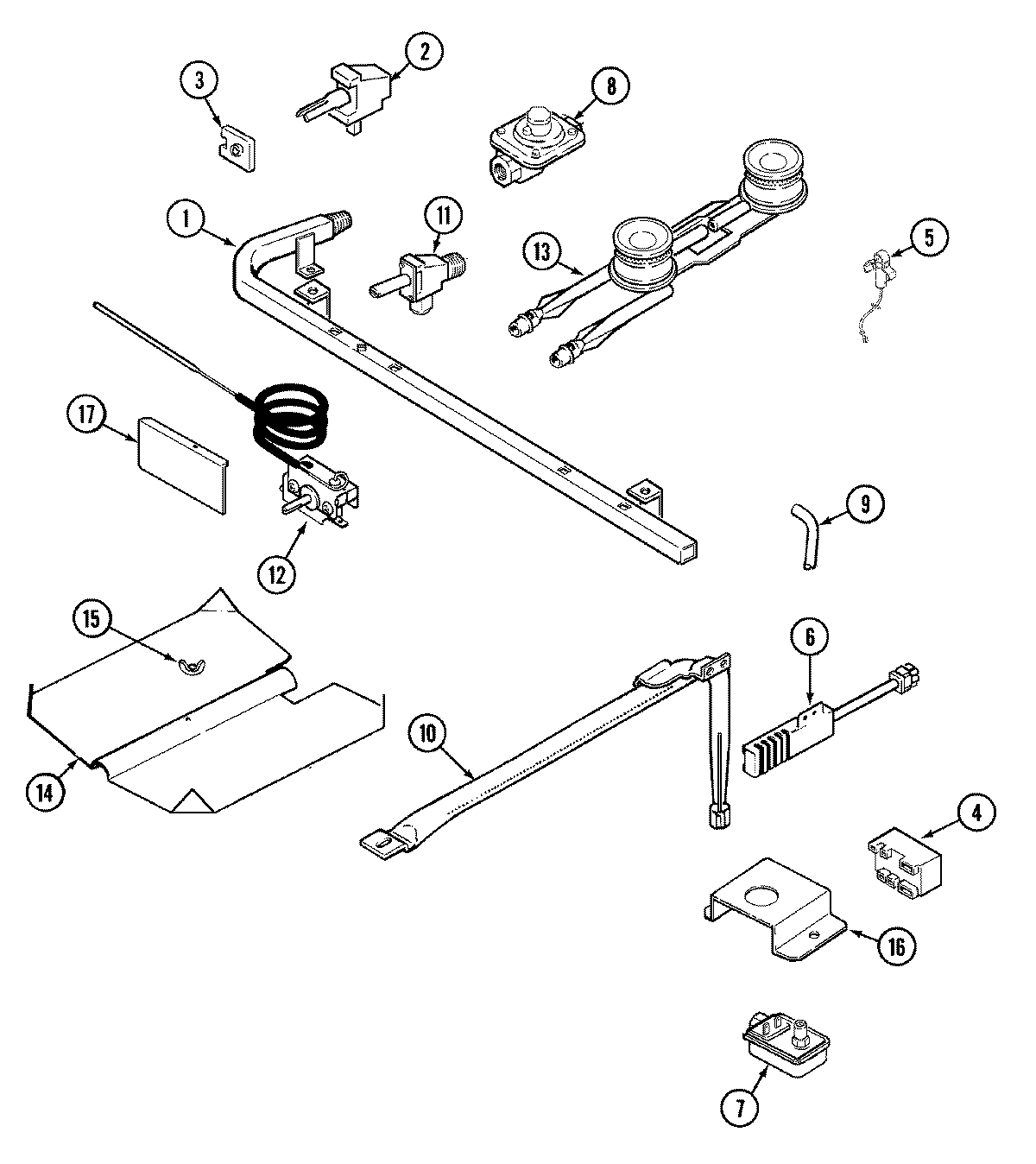

PGR4102CDT 04 – GAS CONTROLS

Products

PositionProduct
1MAY 74003913
2MAY 74002383
2WP8273096 Whirlpool Screw
3MAY 74002384
4MAY 74004282
5MAY 74004483
5MAY 74002386
6MAY 7432P075-60
6SCREW (10-24X5/16-NI)
7MAY 74006281
8MAY 74006282
9MAY 74006417
10MAY 74002434
1112002280 Whirlpool Oven Valve Kit and Screw
11MAY 7101P044-60
12WP74002390 Whirlpool Oven Thermostat
12MAY 7101P280-60
13SCREW (8BX3/8-NI)
13MAY 74003332
14MAY 74002393
15NUT, WING
16MAY 74005051
17MAY 74002391
17SCREW
18MAY 74004469
19NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
