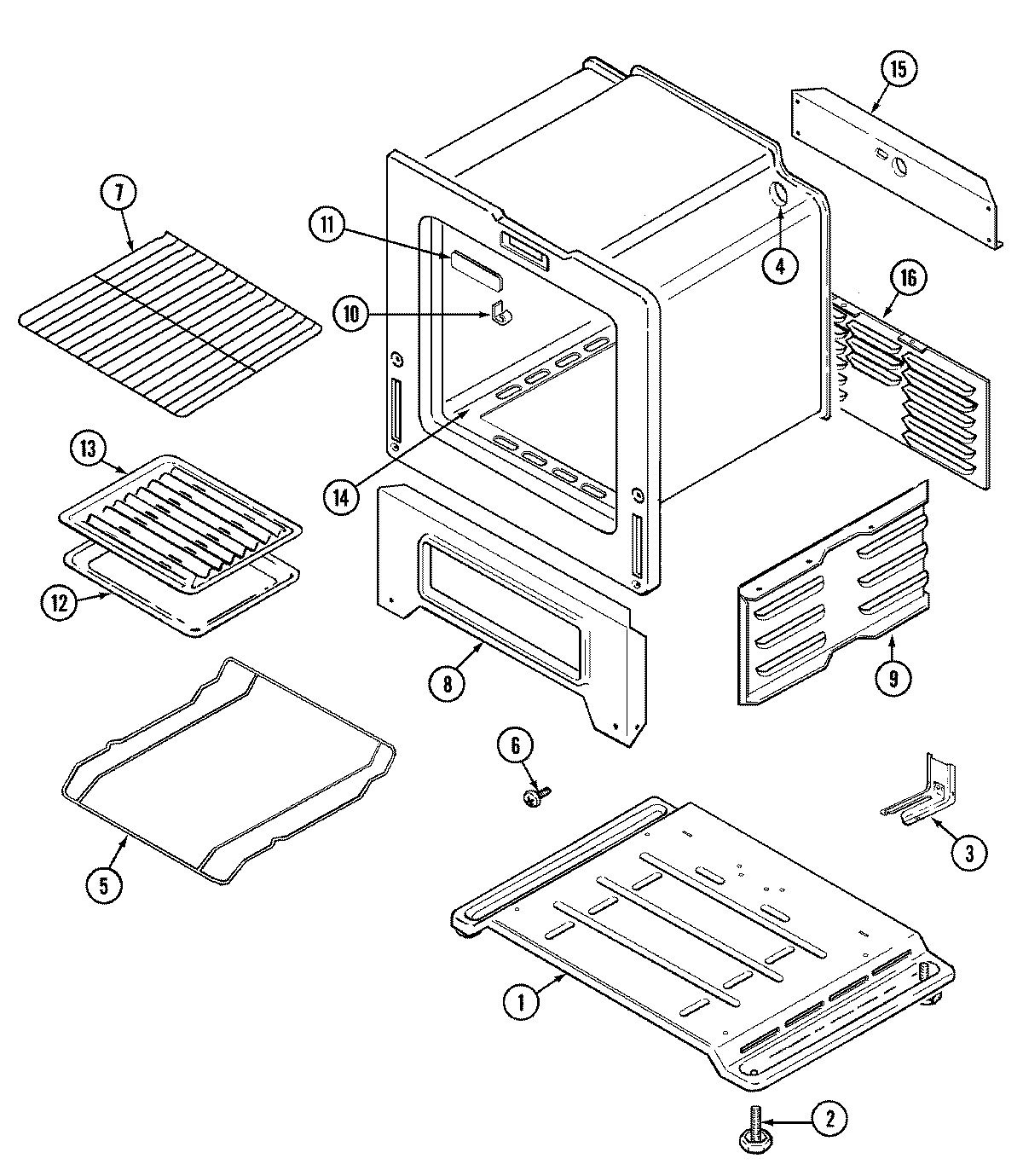

PGR4102CDT 05 – OVEN/BASE

Products

Position	Product
1	MAY 74005215
2	W11665456 Whirlpool Range Level Foot
3	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
3	WP7101P485-60 Whirlpool Anchor Tip
4	MAY 74002380
5	MAY 74002381
6	SCREW (8ABX1/2``-BLK)
7	WPW10282492 Whirlpool Oven Rack
8	MAY 74002327
9	MAY 74002375
9	MAY 74002374
10	WP7112P004-60 Whirlpool Thermal Clip
11	PLUG, LOCK SLOT
12	MAY Y3401F02019
13	MAY Y3413F01619
14	MAY 74002377
14	MAY 74002376
15	MAY 74002378
16	SCREW
16	MAY 74002379
