PGR4202BDH 04 – GAS CONTROLS

Products

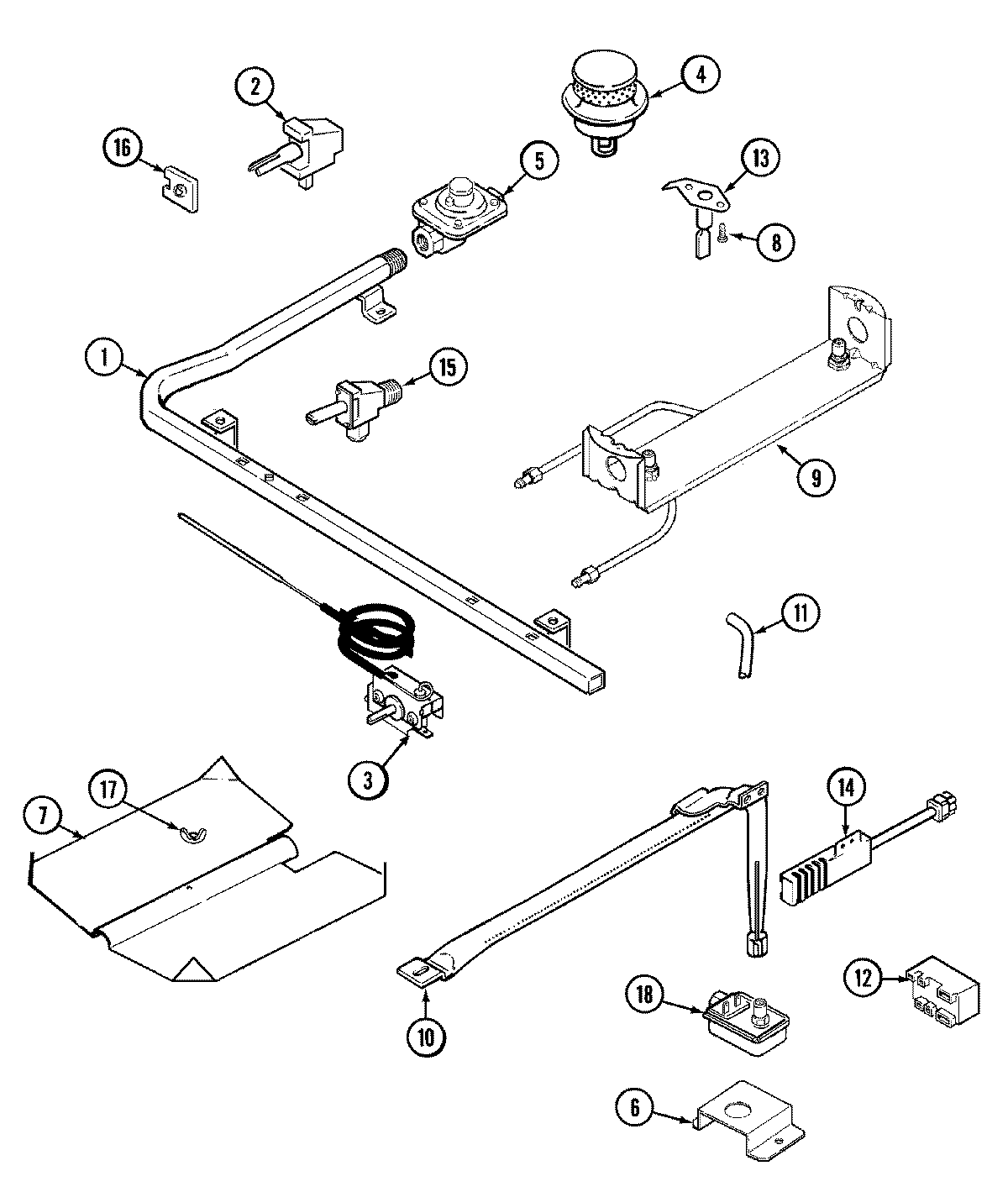

PositionProduct
1SCREW
1MAY 74002454
2MAY 74002455
2WP8273096 Whirlpool Screw
3MAY 7101P280-60
3WP74002390 Whirlpool Oven Thermostat
4WP3412D024-09 Whirlpool Oven Burner Head
5MAY 74006282
6MAY 74005051
7MAY 74002393
8MAY Y707113
9WP5187M026-60 Whirlpool Surface Burner Orifice Holder
10MAY 74002434
11MAY 74006417
128215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
1374004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
14MAY 7432P075-60
14SCREW (10-24X5/16-NI)
1512002280 Whirlpool Oven Valve Kit and Screw
15MAY 7101P044-60
16MAY 74002384
17NUT, WING
18MAY 74006281
19MAY 74005313
19MAY 74002363
19MAY 74004469
20NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
