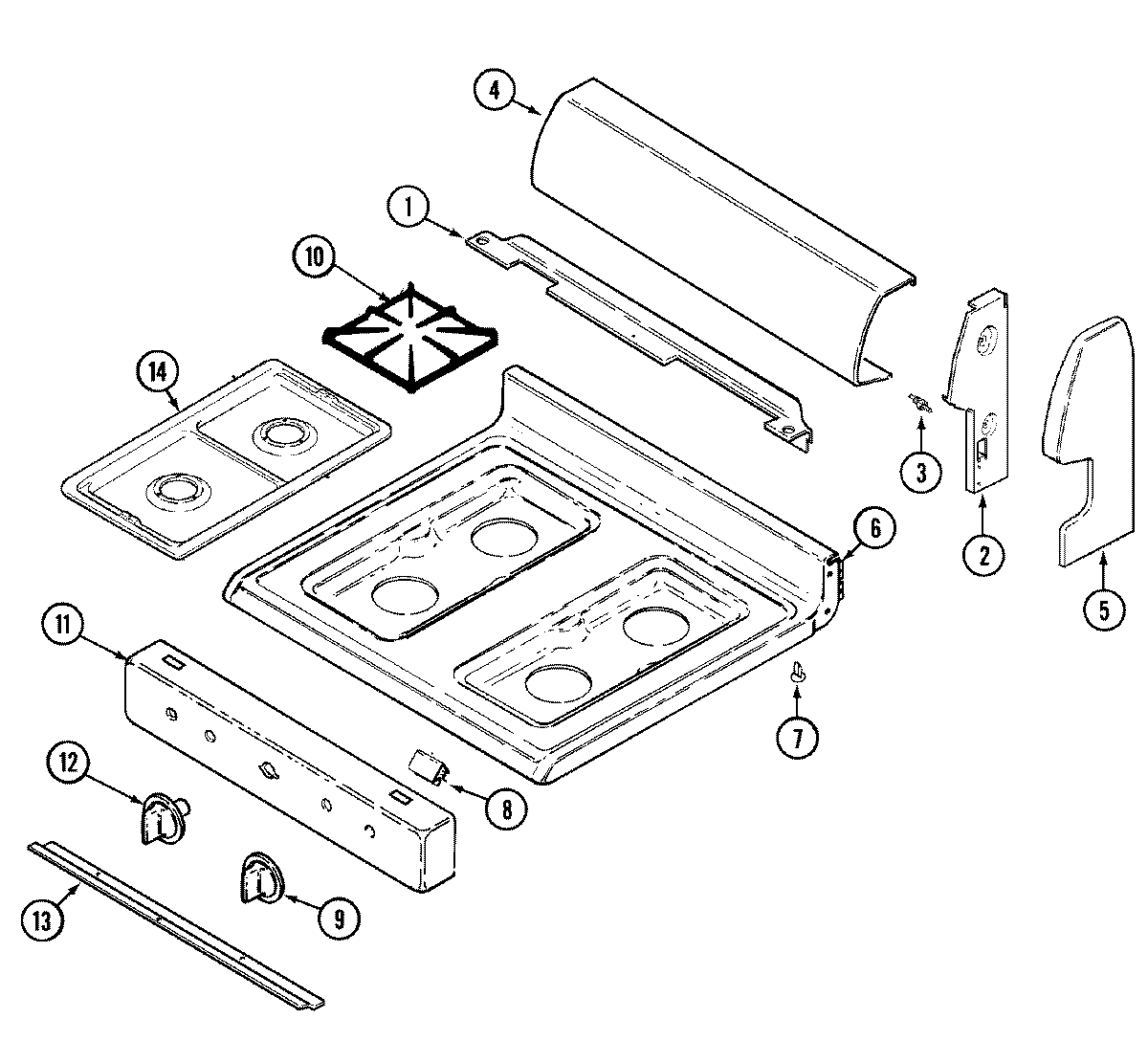

PGR4202BDT 02 – CONTROL PANEL/TOP ASSEMBLY

PGR4202BDT 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

PGR4202BDT 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74005319
1MAY 74002409
2W10828565 Whirlpool Screw
2MAY 74002402
2MAY 74002403
3MAY 74002404
4SCREW
4MAY 74006414
5MAY 74002406
5MAY 74002407
5MAY 74002432
5SCREW (8ABX1/2“-BLK)
6MAY 74005050
7MAY 8016P015-60
8MAY 74004827
9MAY 74002445
10WP7518P464-60 Whirlpool Burner Grate
11MAY 74006279
12MAY 74002443
13MAY 74002447
14MAY 5401A452-60
15MAY 16008701
15MAY 74005475
15MAY 74005911
17MAY 16010161
