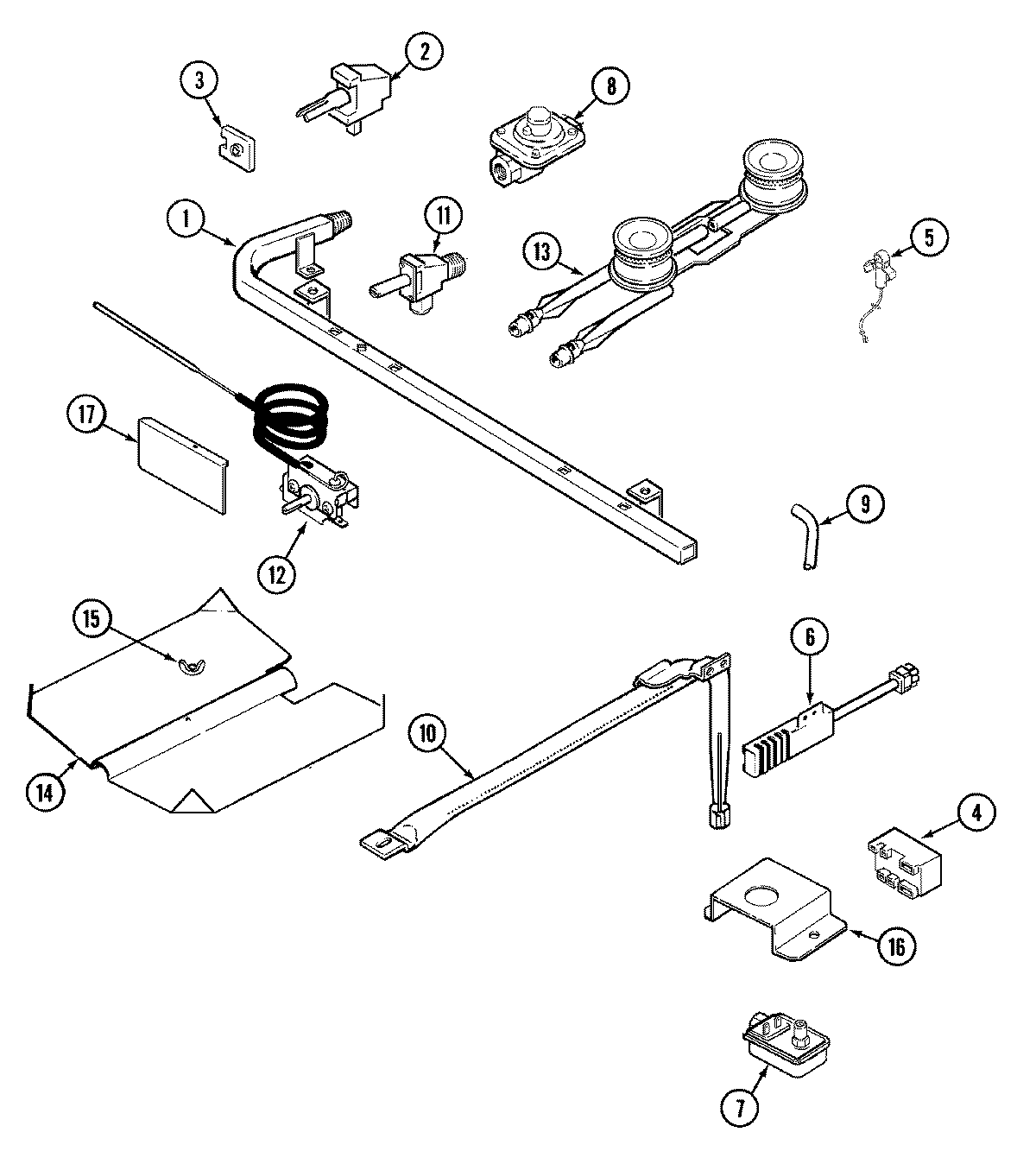

PGR4305CDT 04 – GAS CONTROLS

Products

Position	Product
1	MAY 74003913
2	MAY 74002383
2	WP8273096 Whirlpool Screw
3	MAY 74002384
4	MAY 74004282
5	MAY 74004483
5	MAY 74002386
6	SCREW (10-24X5/16-NI)
6	MAY 7432P075-60
7	MAY 74006281
8	MAY 74006282
9	MAY 74006417
10	MAY 74002434
11	MAY 71003231
11	12002280 Whirlpool Oven Valve Kit and Screw
12	MAY 7101P280-60
12	WP74002390 Whirlpool Oven Thermostat
13	SCREW (8BX3/8-NI)
13	MAY 74003332
14	MAY 74002393
15	NUT, WING
16	MAY 74005051
17	SCREW
17	MAY 74002391
18	MAY 74002363
18	MAY 74004469
19	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
