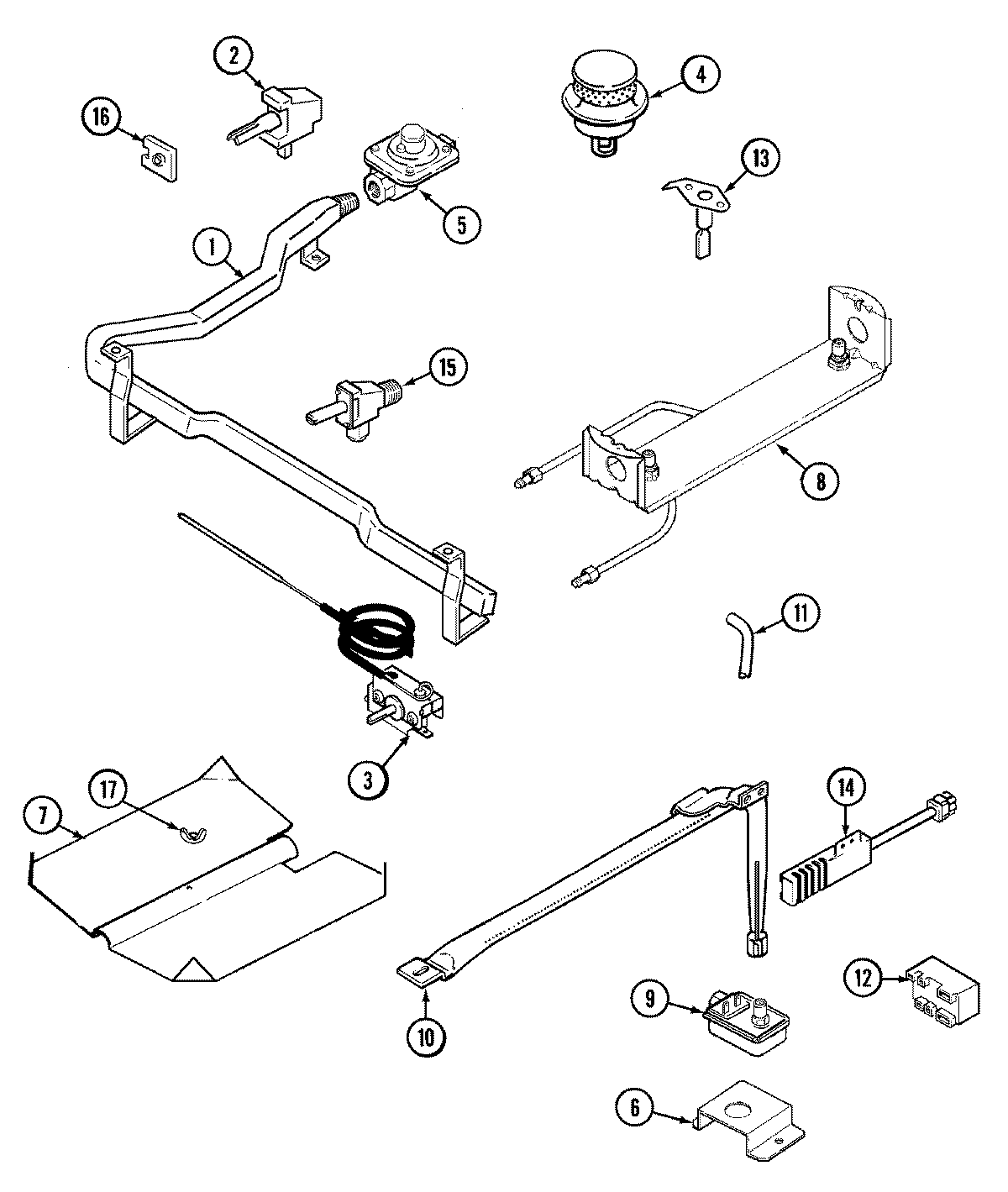

PGR4405CDS 03 – GAS CONTROLS

PGR4405CDS 03 – GAS CONTROLS

Written by

in

PGR4405CDS 03 – GAS CONTROLS

Products

PositionProduct
1MAY 74009463
2MAY 74009416
2MAY 74009462
3MAY 7101P280-60
3WP74002390 Whirlpool Oven Thermostat
4WP3412D024-09 Whirlpool Oven Burner Head
5MAY 74010540
6MAY 74005051
7MAY 74002393
8WP5187M026-60 Whirlpool Surface Burner Orifice Holder
8MAY 74002535
9MAY 74006352
10MAY 74002434
10SCREW
11MAY 74006417
128215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
1374004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
14MAY 7432P075-60
14SCREW (10-24X5/16-NI)
15MAY 74009460
15MAY 74009427
16MAY 74009464
17NUT, WING
18MAY 74002363
19MAY 74005313
20NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
