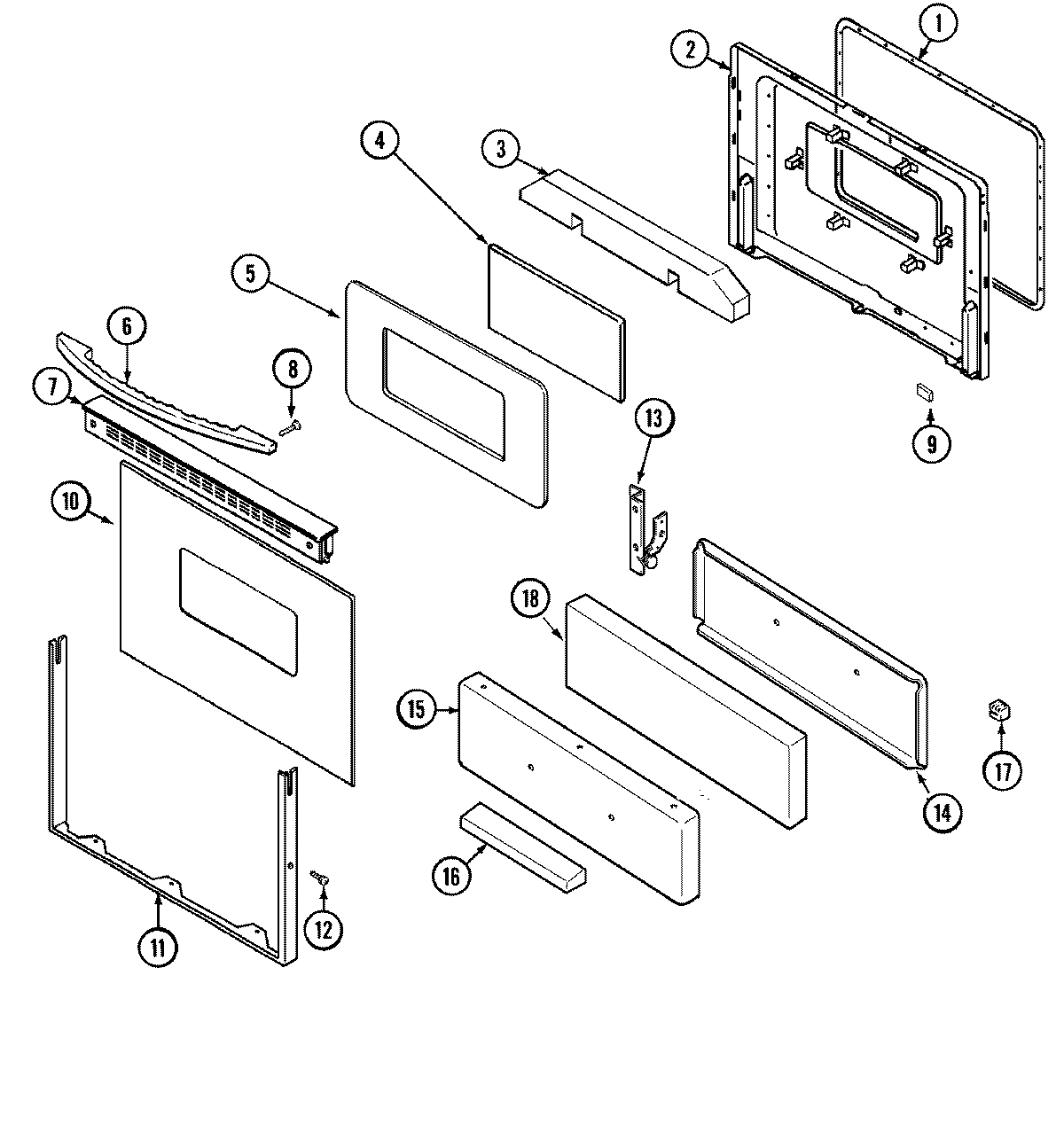

PGR4405CDT 03 – DOOR/DRAWER

PGR4405CDT 03 – DOOR/DRAWER

Written by

in

PGR4405CDT 03 – DOOR/DRAWER

Products

PositionProduct
1WP7212P043-60 Whirlpool Oven Door Seal Gasket
2NUT, SNAP (ROUND-BLK)
2NUT, SNAP (ROUND-WHT)
2MAY 74005097
3MAY 74002458
4MAY 74002459
5MAY 7101P209-60
5MAY 74002461
6MAY 74006286
7MAY 74003889
8MAY 74001521
8MAY 74006394
8SCREW (8ABX1/2“-BLK)
9WP74005546 Whirlpool RU Spacer
10MAY 74006287
11MAY 7706P309-60
12WP98008545 Whirlpool Screw
13MAY 74002398
14MAY 74007553
14MAY 74002397
15MAY 74005046
15SCREW
16MAY 74001820
1674002481 Whirlpool Screw
16WP74003976 Whirlpool Screw
17MAY 74001663
18MAY 74001814
