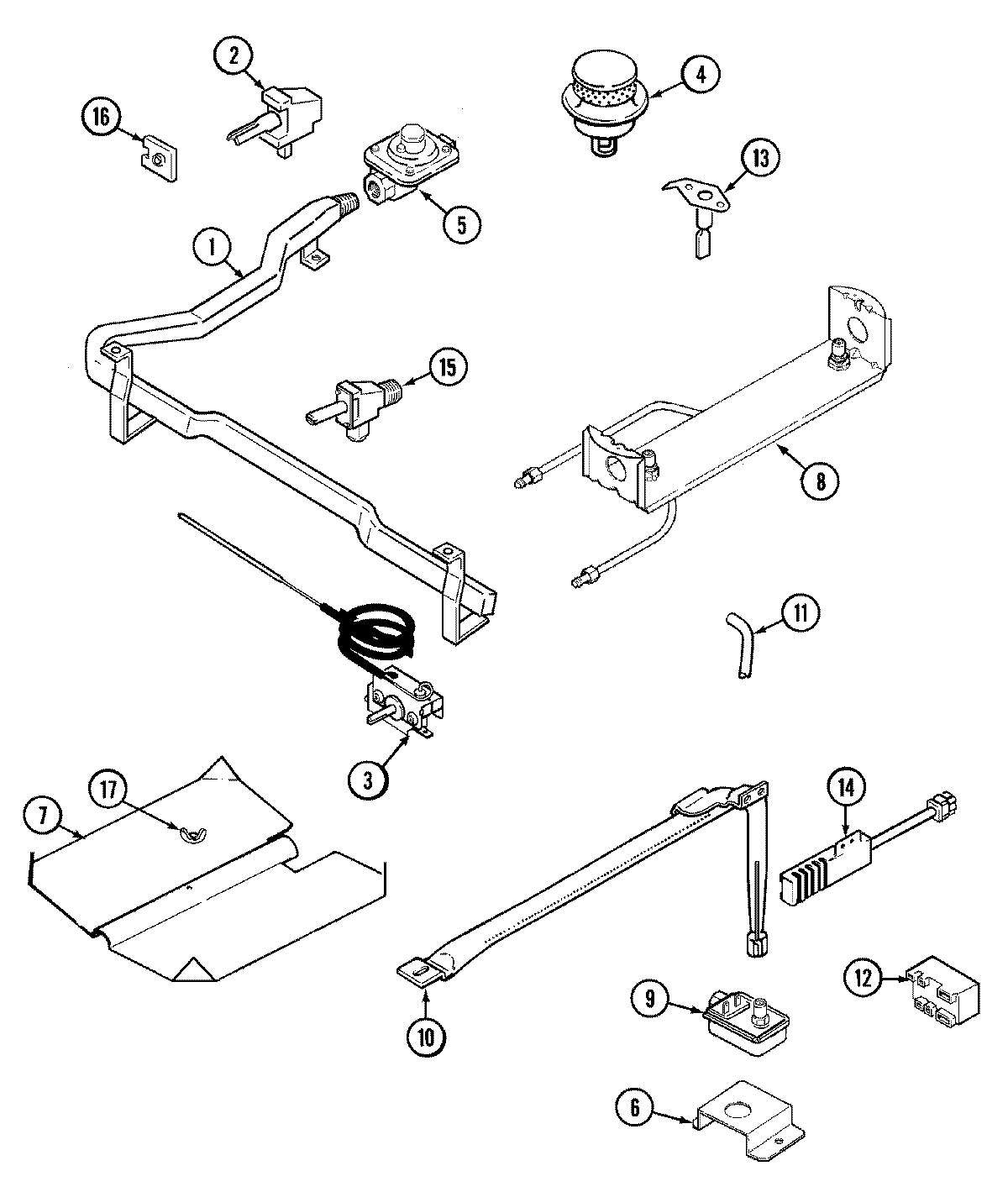

PGR4410CDQ 04 – GAS CONTROLS

Products

Position	Product
1	MAY 74009463
1	MAY 74006416
2	MAY 12002281
2	MAY 71003231
2	WP8273096 Whirlpool Screw
2	MAY 74003925
2	MAY 74002532
3	WP74002390 Whirlpool Oven Thermostat
3	MAY 7101P280-60
4	MAY 74003966
5	MAY 74006282
6	MAY 74005051
7	MAY 74002393
8	WP5187M026-60 Whirlpool Surface Burner Orifice Holder
8	MAY 74002535
9	MAY 74006281
10	SCREW
10	MAY 74002434
11	MAY 74006417
12	8215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
13	74004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
14	MAY 7432P075-60
14	SCREW (10-24X5/16-NI)
15	12002277 Whirlpool Oven Valve Kit & Screw
15	12002280 Whirlpool Oven Valve Kit and Screw
15	MAY 7101P044-60
16	WP7403P287-60 Whirlpool Igniter Switch
16	MAY 74002533
16	MAY 74009464
17	NUT, WING
20	MAY 74002363
20	MAY 74005313
21	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
