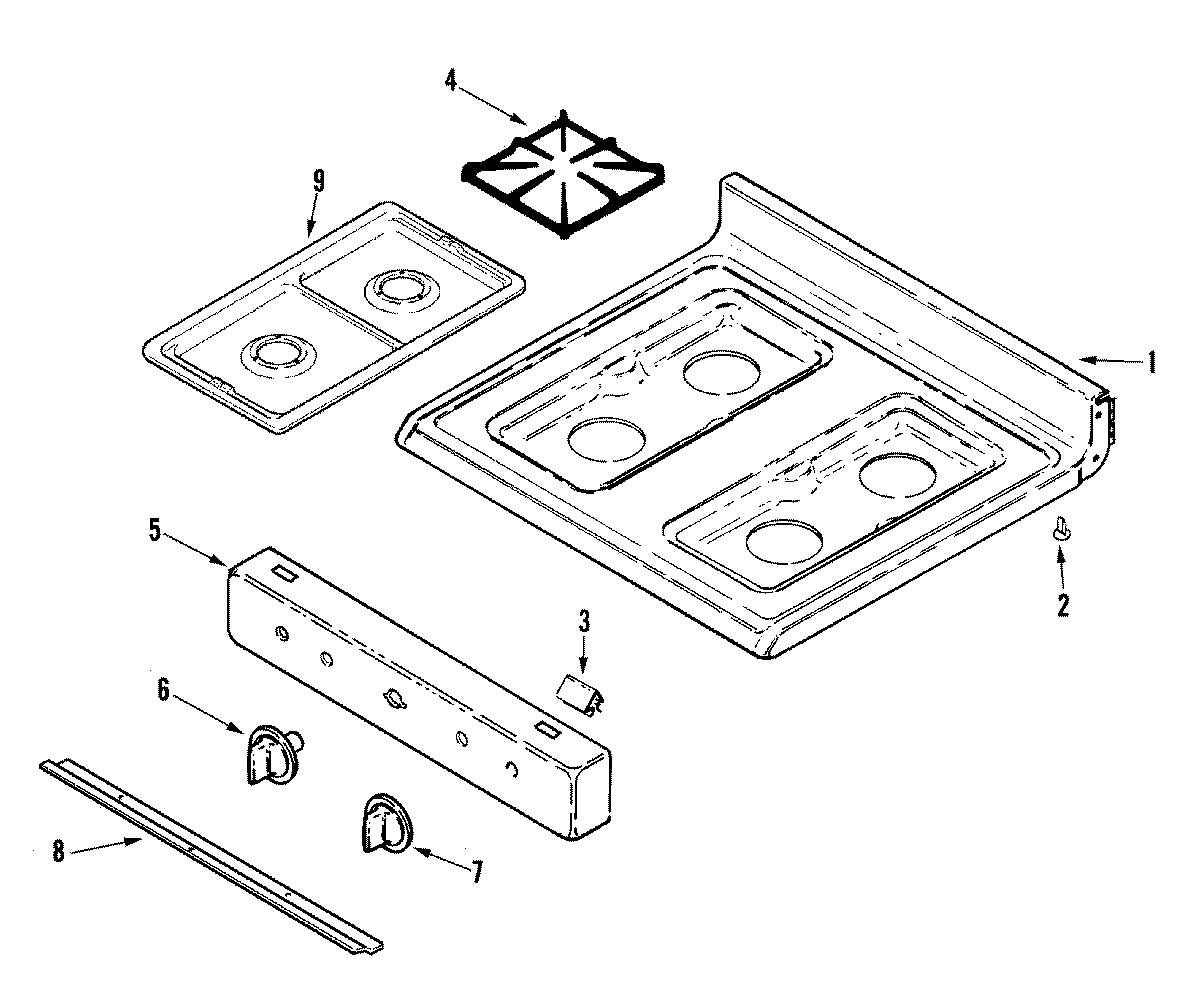

PGR4410CDQ 06 – TOP ASSEMBLY

PGR4410CDQ 06 – TOP ASSEMBLY

Written by

in

PGR4410CDQ 06 – TOP ASSEMBLY

Products

PositionProduct
1MAY 74005050
2MAY 8016P015-60
3MAY 74004827
4MAY 74003514
5MAY 74006276
5MAY 7101P074-60
5SCREW (8BX3/8-NI)
6WP74005160 Whirlpool Thermal Knob
7MAY 74005186
7MAY 74005187
8SCREW
8MAY 74002447
9MAY 5401A452-60
