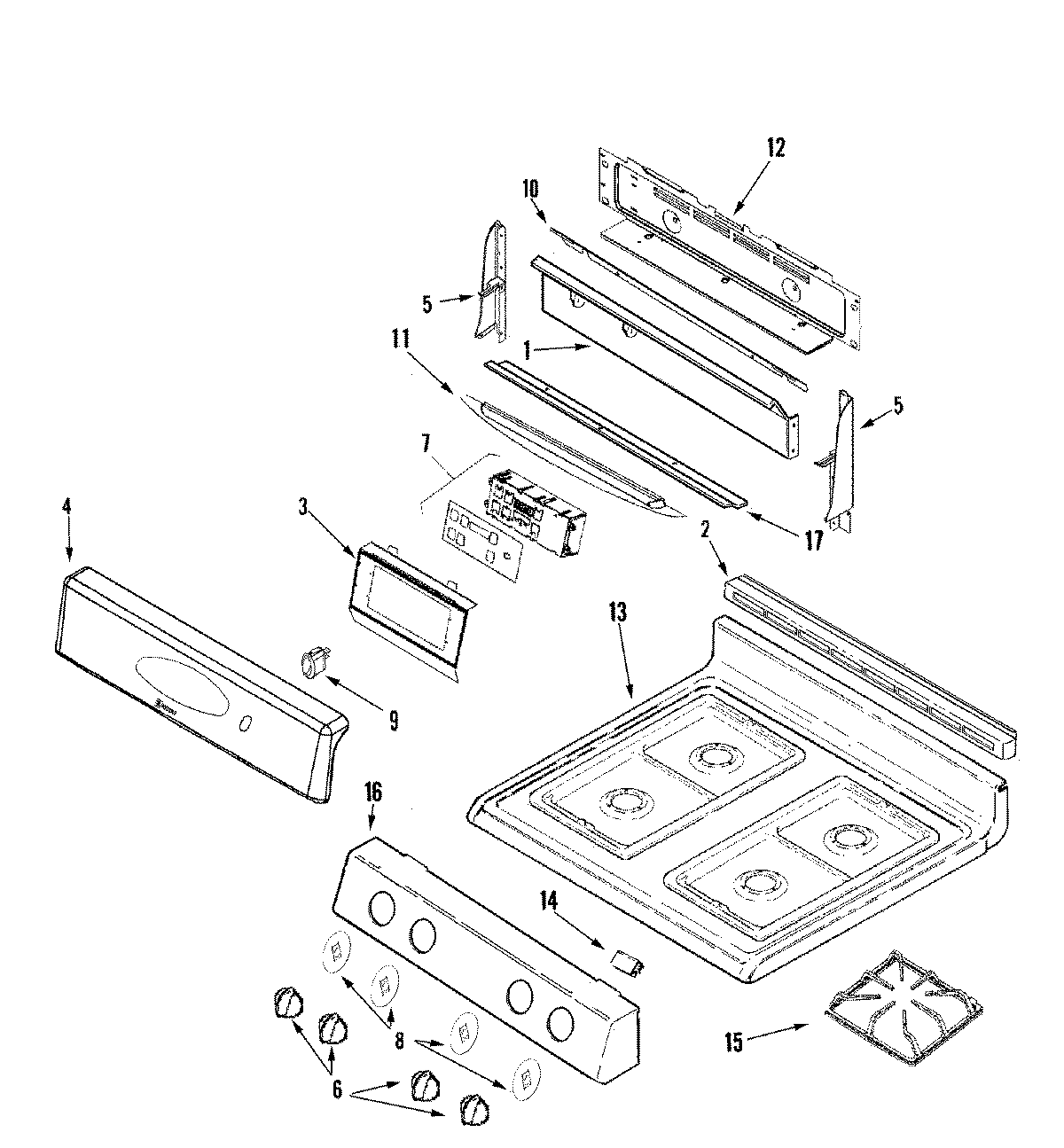

PGR4420LDQ 02 – CONTROL PANEL/TOP ASSEMBLY

PGR4420LDQ 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

PGR4420LDQ 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 7101P147-60
1MAY 74009779
2MAY 74009797
2SCREW (10ABX1/4P TR ZN)
3BRACKET, CLOCK
4MAY 74009836
5MAY 74009668
5MAY 74009671
5WP74009541 Whirlpool Screw Assembly
674009774 Whirlpool Oven Knob Bisque
7WP74003976 Whirlpool Screw
7MAY 74009882
8MAY 74009846
97403P984-60 Whirlpool RO Switch
10MAY 74009708
11MAY 74009798
11MAY 74009803
12WP90767 Whirlpool Screw
12MAY 71001394
12MAY 74006536
13WP74005546 Whirlpool RU Spacer
13W11189172 Whirlpool Glide Drawer
13MAY 74004964
14MAY 74004827
15MAY 74001769
16MAY 74009830
17SCREW
17MAY 74002447
