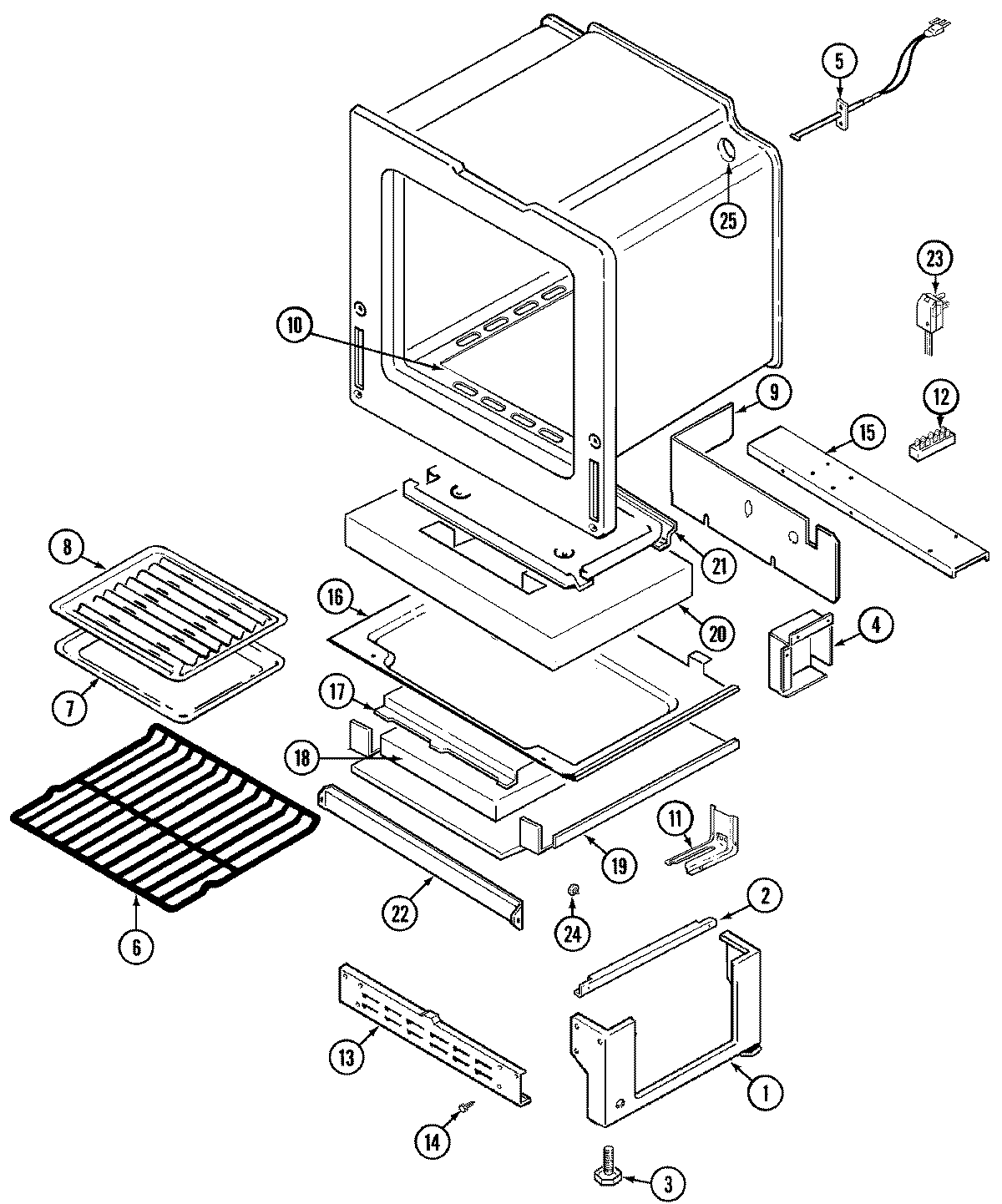

PGR5702BDT 05 – OVEN/BASE

Products

Position	Product
1	MAY 74005772
2	RUNNER, DRAWER
3	W11665456 Whirlpool Range Level Foot
4	MAY 74004499
5	12001655 Whirlpool Oven Sensor
6	WPW10282492 Whirlpool Oven Rack
7	MAY Y3401F02019
8	MAY Y3413F01619
9	COVER, VALVE/REGULATOR
10	BAFFLE, OVEN BOTTOM
10	MAY 74002377
10	MAY 5504M004-19
11	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
11	WP7101P485-60 Whirlpool Anchor Tip
12	MAY 7401P037-60
13	MAY 4020F001-80
14	SCREW
15	MAY 74006324
16	MAY 74003242
17	MAY 74006323
18	INSULATION, DRAWER & SHIELD
19	MAY 3604F205-51
20	MAY 74003503
21	MAY 74001651
22	BAFFLE, OVEN FRONT
23	MAY 7402P043-60
24	WP74004078 Whirlpool Door Roller
24	SHAFT, STORAGE DRAWER ROLLER
24	74005230 Whirlpool Oven Lock Nut (8-32)
25	MAY 74002380
