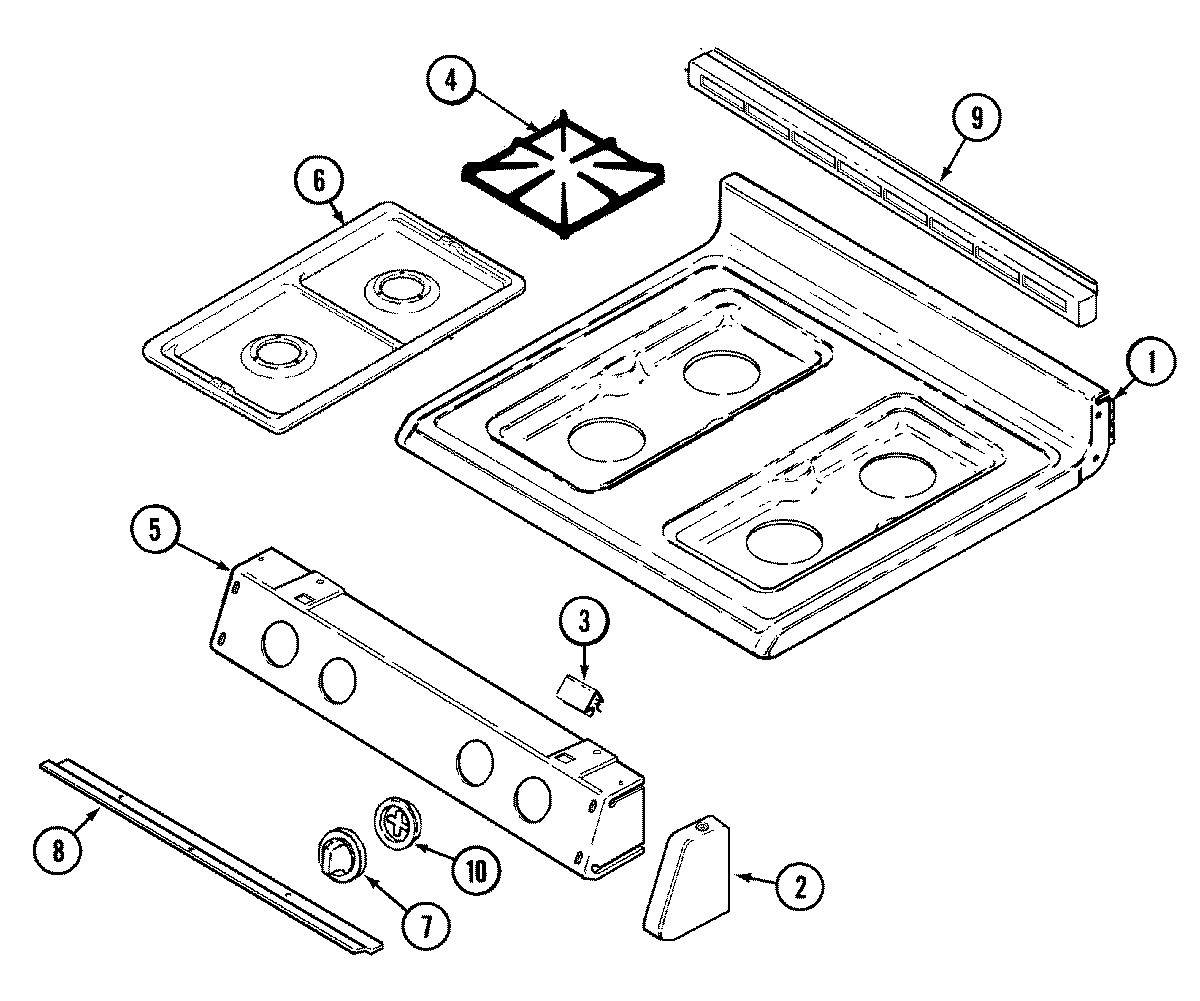

PGR5715BDQ 06 – TOP ASSEMBLY

Products

PositionProduct
1MAY 74001428
1MAY 74004964
2MAY 74004967
2MAY 74004968
2W10828565 Whirlpool Screw
3MAY 74004827
4MAY 74003514
5SCREW (8BX3/8-NI)
5MAY 74006547
6MAY 5401A452-60
7MAY 74005040
7MAY 74005685
8MAY 74002447
9MAY 74003520
10MAY 74005039
10MAY 74005435
