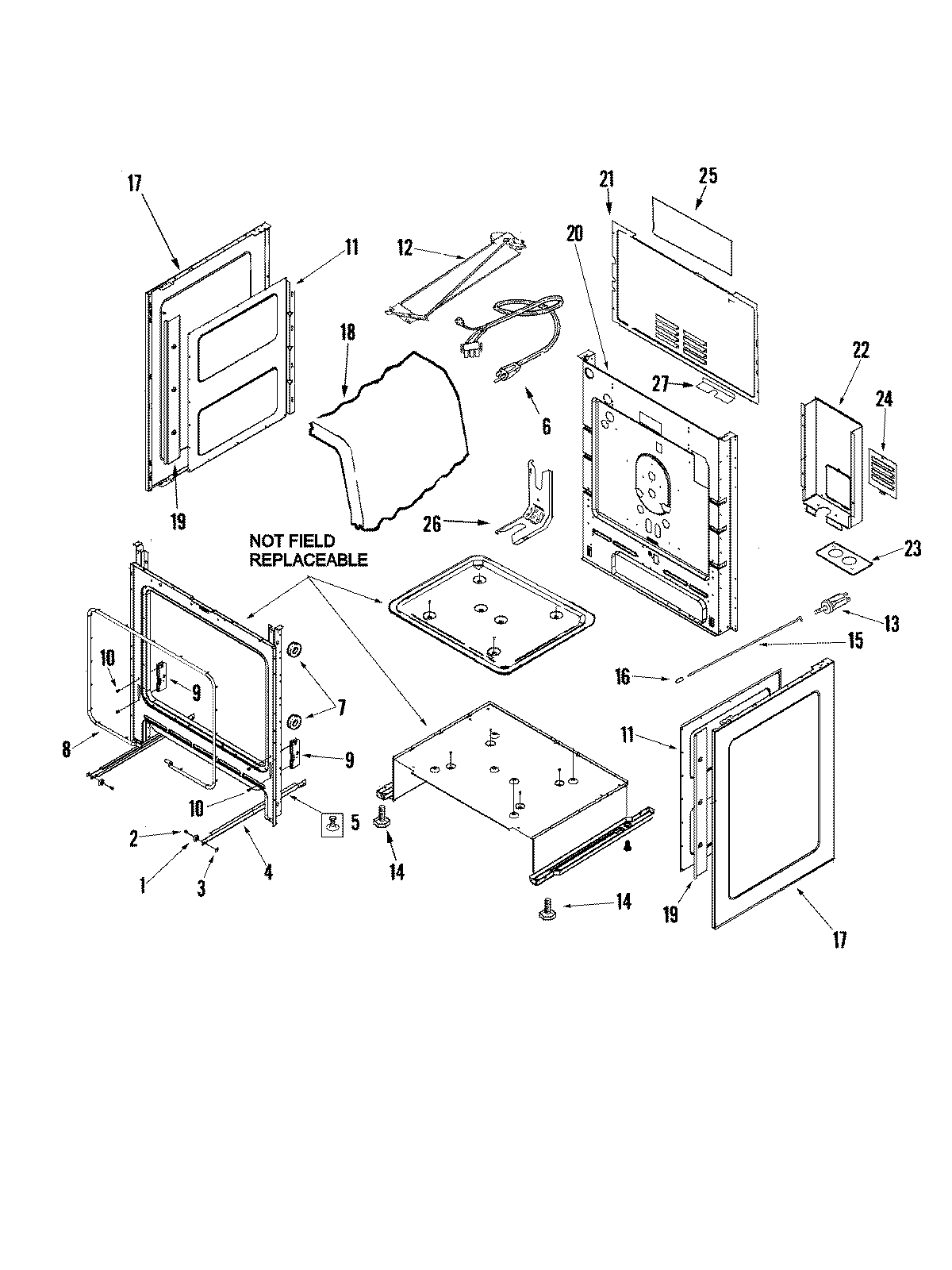

PGR5750LDQ 01 – CABINET

PGR5750LDQ 01 – CABINET

Written by

in

PGR5750LDQ 01 – CABINET

Products

PositionProduct
1WP74004078 Whirlpool Door Roller
2SHAFT, STORAGE DRAWER ROLLER
374005230 Whirlpool Oven Lock Nut (8-32)
4RUNNER, SERVICE DRAWER
5MAY 74008688
6MAY 74008876
7SCREW W/SHOULDER (No.8)
7SPACER, SIDE PANEL
8W11562931 Whirlpool Door Gasket
9WP74010551 Whirlpool Receiver
10WP4159193 Whirlpool Screw
11MAY 74008701
12MAY 74008702
12SCREW
1274003975 Whirlpool Screw P1 (8ABX3/8-BLK)
13MAY 74008704
1374008703 Whirlpool Door Switch
14W11665456 Whirlpool Range Level Foot
1474008835 Whirlpool Clip Retainer
15MAY 74008706
15SLEEVE, ROD TUBE
1674008707 Whirlpool Oven Bumper
17PANEL, SIDE (BSQ)
18MAY 74008698
18INSULATION, WRAPPER
19MAY 74009956
19MAY 74008831
20MAY 74009676
21COVER, MAIN WIRE (GAS)
22MAY 74008760
23BOTTOM, REAR COVER
24MAY 74008340
25MAY 74008858
26WP3801F656-51 Whirlpool Range Anti-Tip Bracket
26WP7101P485-60 Whirlpool Anchor Tip
