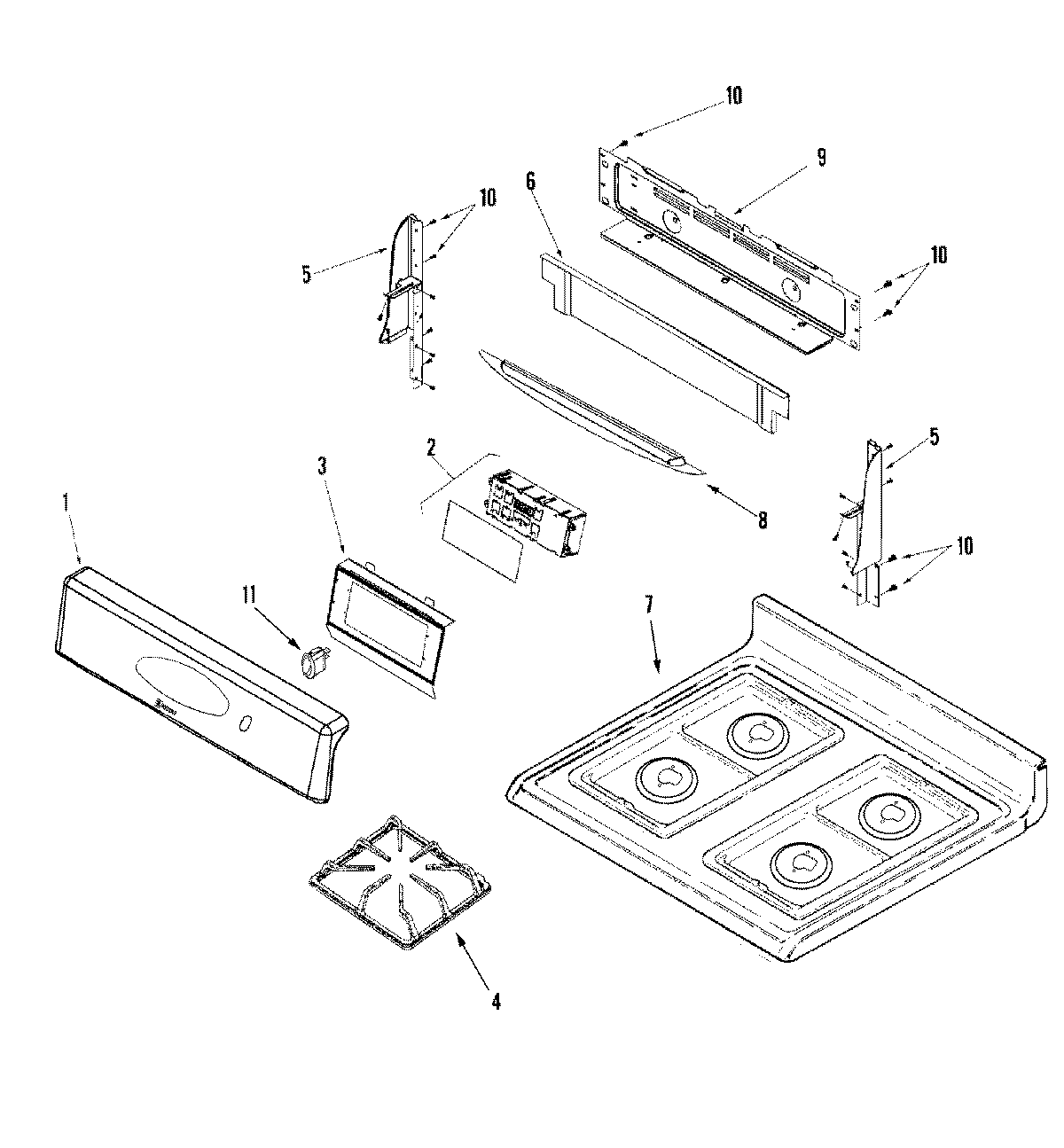

PGR5750LDQ 03 – CONTROL PANEL/TOP ASSEMBLY

PGR5750LDQ 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

PGR5750LDQ 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009836
2MAY 74010555
3BRACKET, CLOCK
4W10919249 Whirlpool Burner Grate Foot
4MAY 74009132
4MAY M0275597
5END CAP (RT-BSQ)
5END CAP (LT-BSQ)
6MAY 74009444
7MAY 74010549
8SHIELD, HEAT VISOR (BSQ)
8SCREW, SHOULDER
9MAY 74009093
9MAY 74009053
9COVER, BROIL ACCESS FITTING
9SCREW (8BX3/8-NI)
10SCREW
117403P984-60 Whirlpool RO Switch
