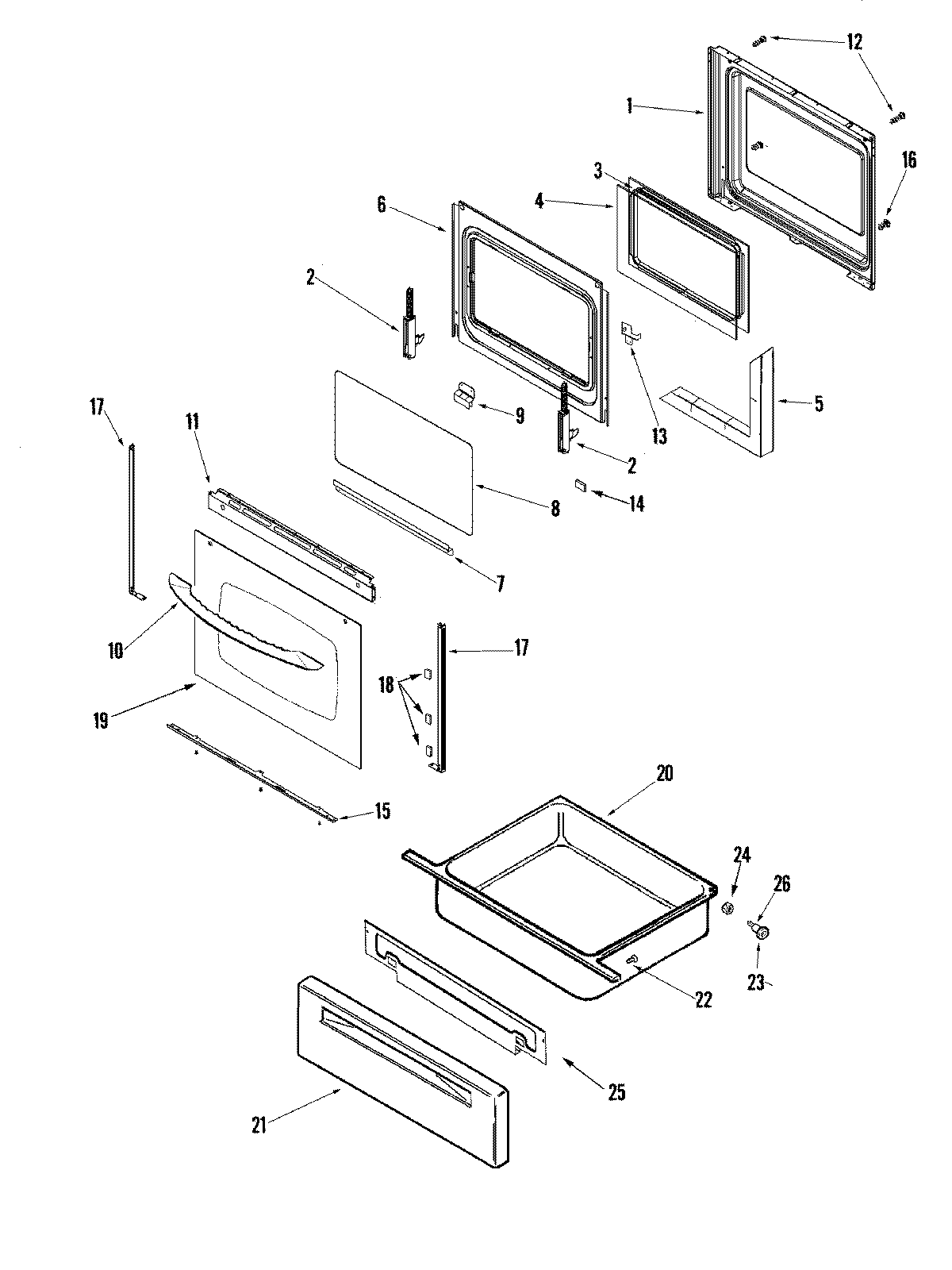

PGR5750LDQ 04 – DOOR/DRAWER

Products

PositionProduct
1MAY 74008926
274010546 Whirlpool Range Oven Door Hinge
3FRAME, GLASS
474003645 Whirlpool Range Oven Door Inner Glass
5MAY 74010564
5INSULATION, OVEN DOOR
6MAY 74008744
7MAY 74008745
8GLASS, DOOR
9Trim, Door Top (Black)
10MAY 74011107
10MAY 74009185
11TRIM, TOP (BSQ)
11WP74009541 Whirlpool Screw Assembly
12WP74006515 Whirlpool Washer Screw
13BRACKET, DOOR HANDLE (LT)
13BRACKET, DOOR HANDLE (RT)
14WP74005546 Whirlpool RU Spacer
15TRIM, BOTTOM (BSQ)
16SCREW (10-24X5/16-NI)
17TRIM, SIDE (BSQ)
18WP74009014 Whirlpool Double Tape
19GLASS, DOOR (BSQ)
20WP3405F037-80 Whirlpool Utility Drawer
21PANEL, DRAWER (BSQ)
22SCREW
23WP74004078 Whirlpool Door Roller
24WP488130 Whirlpool Air Conditioner Nut
25SHIELD, DRAWER HEAT
26SHAFT, STORAGE DRAWER ROLLER
