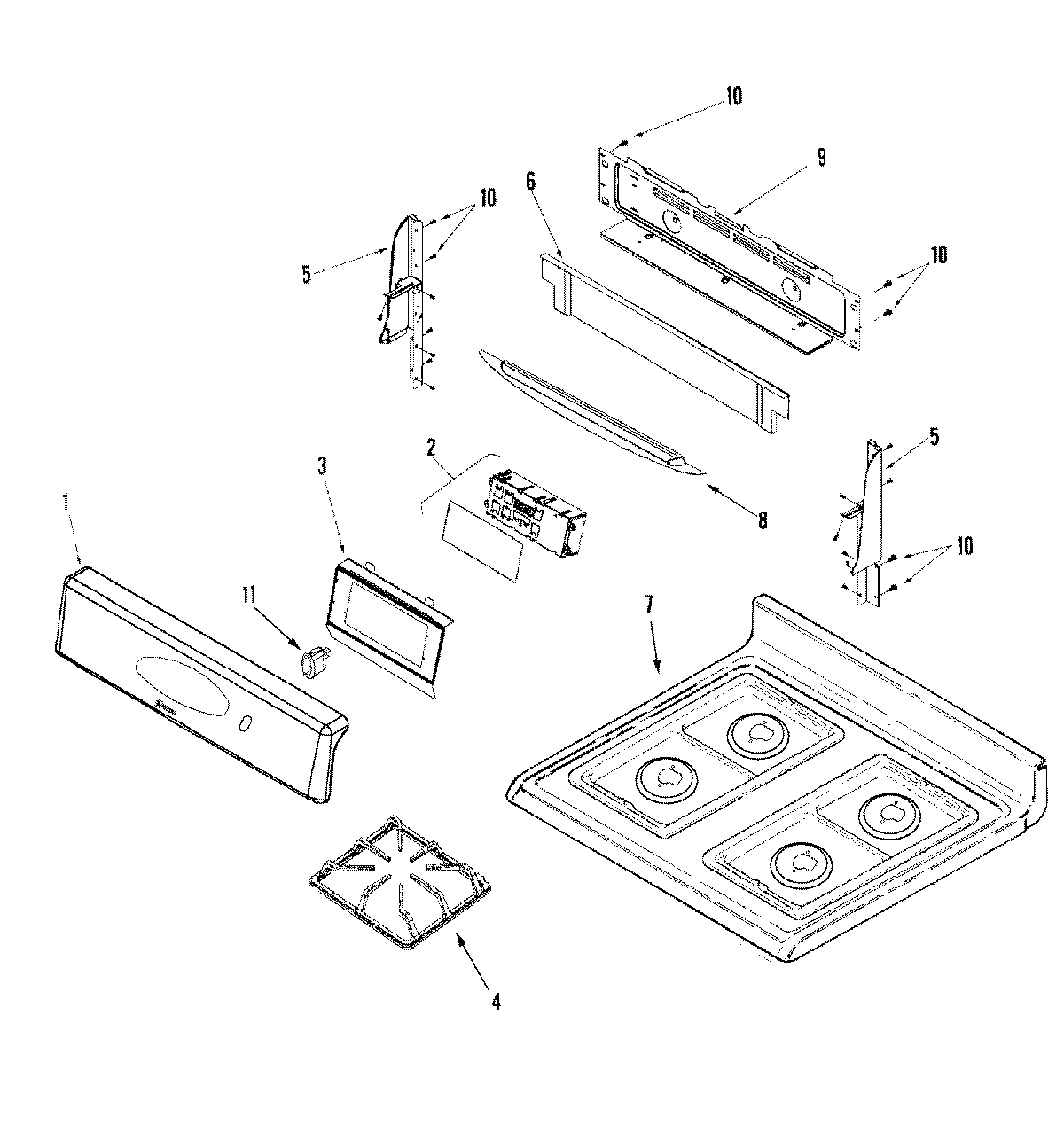

PGR5750LDS 03 – CONTROL PANEL/TOP ASSEMBLY

PGR5750LDS 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

PGR5750LDS 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74010550
2MAY 74010556
3BRACKET, CLOCK
4W10919249 Whirlpool Burner Grate Foot
4MAY 74009133
4MAY M0275597
5End Cap (Right Black)
5End Cap (Left Black)
6MAY 74009444
7MAY 74010547
8MAY 74009202
8SCREW, SHOULDER
9MAY 74009093
9MAY 74009053
9COVER, BROIL ACCESS FITTING
9SCREW (8BX3/8-NI)
10SCREW
117403P985-60 Whirlpool Rocker Switch (Black)
