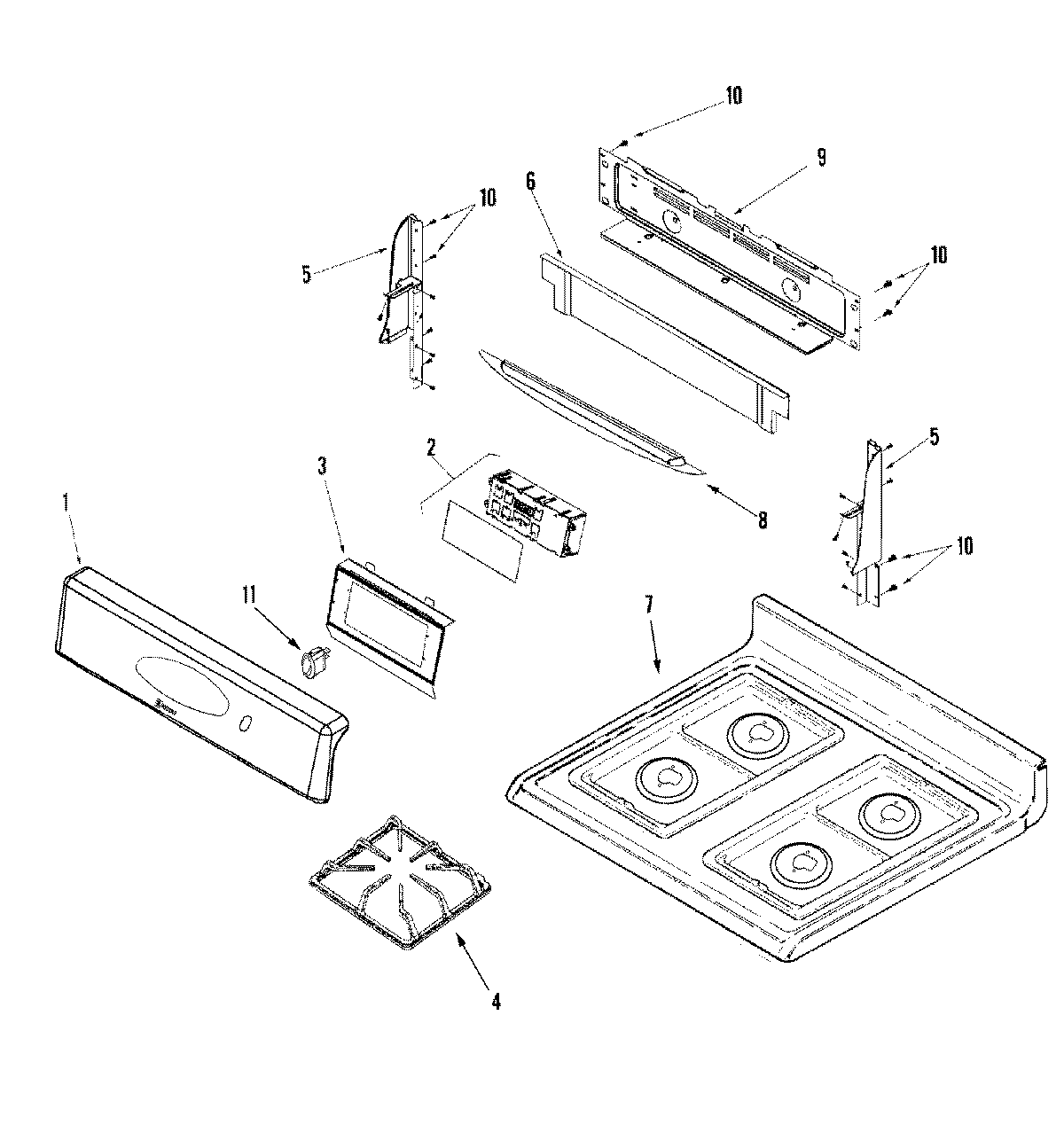

PGR5750LDW 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

Products

Position	Product
1	MAY 74009835
2	MAY 74010554
3	BRACKET, CLOCK
4	W10919249 Whirlpool Burner Grate Foot
4	MAY 74009131
4	MAY M0275597
5	END CAP (RT-WHT)
5	Latch Assembly
6	MAY 74009444
7	MAY 74010548
8	MAY 74009203
8	SCREW, SHOULDER
9	COVER, BROIL ACCESS FITTING
9	MAY 74009053
9	MAY 74009093
9	SCREW (8BX3/8-NI)
10	SCREW
11	WP74010226 Whirlpool RO Switch
