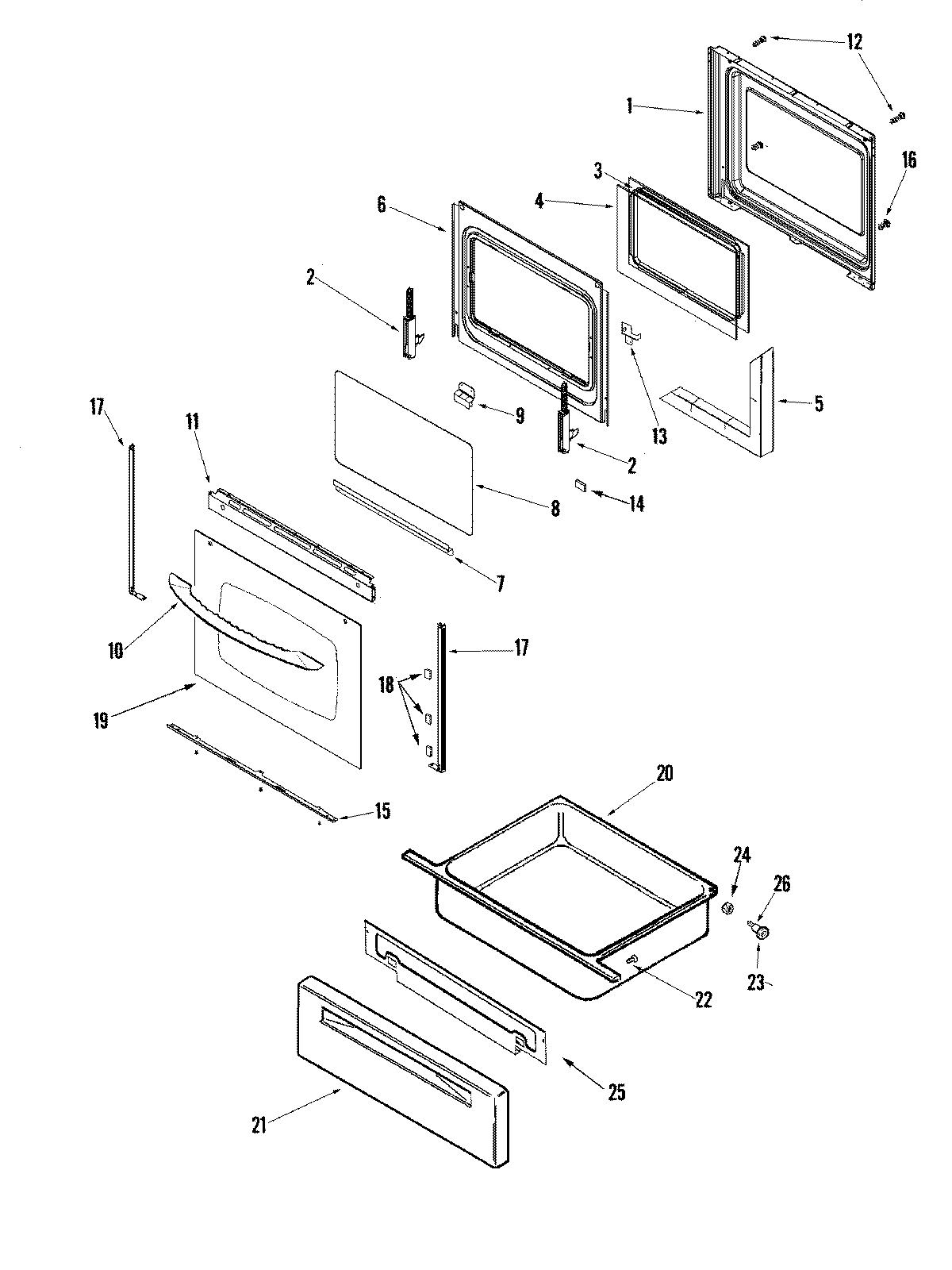

PGR5750LDW 04 – DOOR/DRAWERadmin2025-04-26T09:42:10+00:00PGR5750LDW 04 – DOOR/DRAWER
Products
| Position | Product |
|---|
| 1 | MAY 74008926 |
| 2 | 74010546 Whirlpool Range Oven Door Hinge |
| 3 | FRAME, GLASS |
| 4 | 74003645 Whirlpool Range Oven Door Inner Glass |
| 5 | MAY 74010564 |
| 5 | INSULATION, OVEN DOOR |
| 6 | MAY 74008744 |
| 7 | MAY 74008745 |
| 8 | GLASS, DOOR |
| 9 | Trim, Door Top (Black) |
| 10 | WP74011675 Whirlpool Door Handle |
| 11 | Trim, Door Top (White) |
| 11 | WP98008544 Whirlpool Screw Assembly |
| 12 | WP74006515 Whirlpool Washer Screw |
| 13 | BRACKET, DOOR HANDLE (LT) |
| 13 | BRACKET, DOOR HANDLE (RT) |
| 14 | WP74005546 Whirlpool RU Spacer |
| 15 | WP3608F092-71 Whirlpool Bottom Trim |
| 16 | SCREW (10-24X5/16-NI) |
| 17 | MAY 74010561 |
| 18 | WP74009014 Whirlpool Double Tape |
| 19 | Glass, Door (White) |
| 20 | WP3405F037-80 Whirlpool Utility Drawer |
| 21 | PANEL, DRAWER (WHT) |
| 22 | SCREW |
| 23 | WP74004078 Whirlpool Door Roller |
| 24 | WP488130 Whirlpool Air Conditioner Nut |
| 25 | SHIELD, DRAWER HEAT |
| 26 | SHAFT, STORAGE DRAWER ROLLER |
