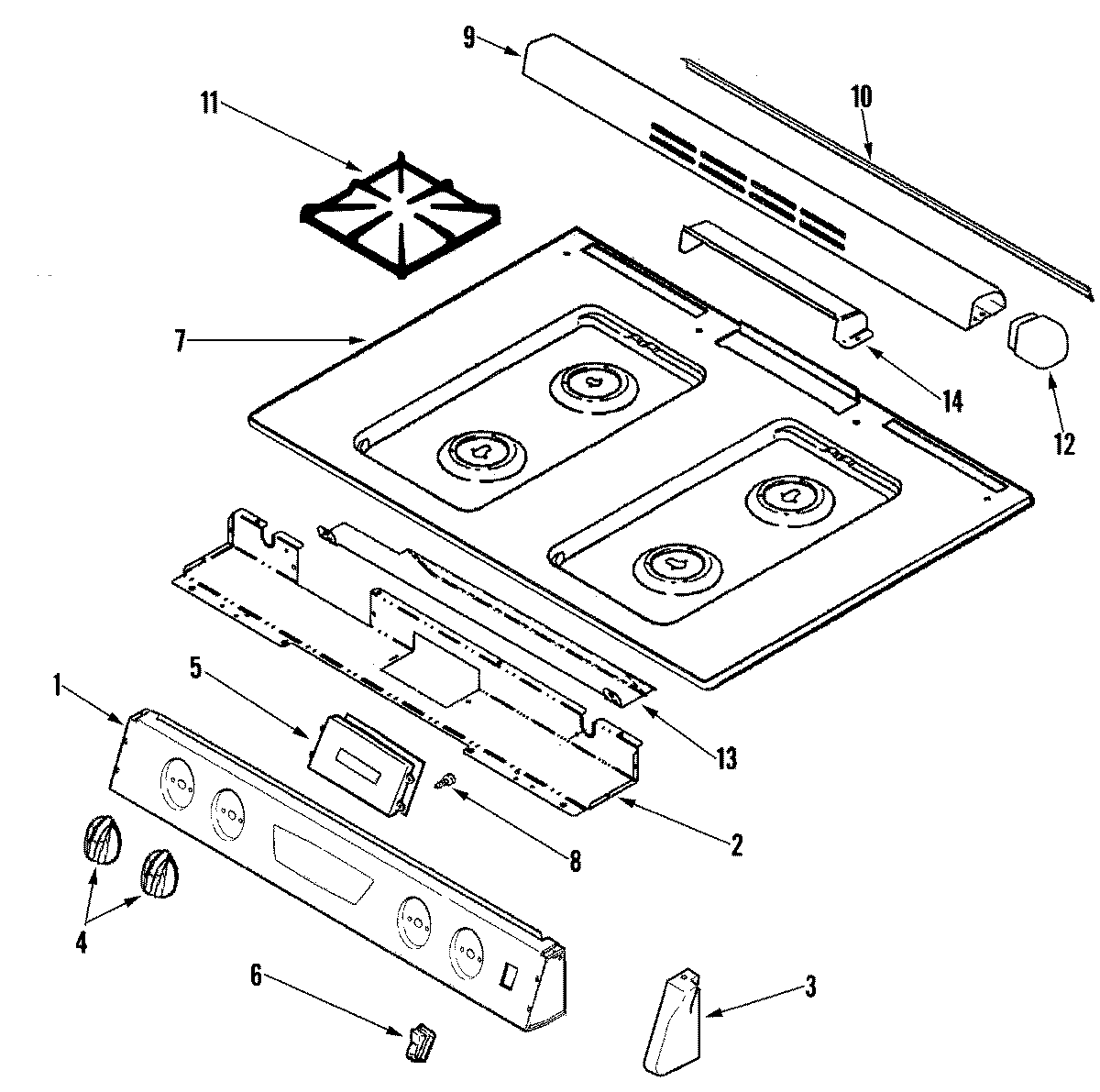

PGS3759BDB 02 – CONTROL PANEL/TOP ASSEMBLY

PGS3759BDB 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

PGS3759BDB 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74011764
2MAY 74010826
3CAP, END (BLK-RT)
3CAP, END (BLK-LT)
4MAY 74011762
5MAY 74011758
5MAY 74010979
6SWITCH, ROCKER (BLK)
7MAY 74010968
8WP74004005 Whirlpool Screw
9MAY 74010946
10MAY 7201P061-60
11MAY 74008870
12MAY 74004365
12MAY 74010925
13SHIELD, CONTROL
14BAFFLE,VENT COVER
